BMW X3 E83 Steering Angle Learning by Launch X431

This article show a guide on how to use Launch X431 to perform steering angle learning for BMW X3 E83.





Procedures:

Built connection between your BMW X3 and Launch X431.

Enter the menu to select “BMW”

The software instruction as “The software can diagnose the elec.control sys. Of BMW,include Engine/Chassis/Body and other parts.The operation is the same as the original scan tool”

BMW X3 E83 Steering Angle Learning by Launch X431 (1)

Processing,please wait…

Select “Manually Select”

BMW X3 E83 Steering Angle Learning by Launch X431 (2)

Select “X Series”

BMW X3 E83 Steering Angle Learning by Launch X431 (3)

Select “x3-E83”

BMW X3 E83 Steering Angle Learning by Launch X431 (4)

Choose “Chassis”

Select “ABS (Anti-lock Brake System-DSC)”

BMW X3 E83 Steering Angle Learning by Launch X431 (5)

The Launch X431 prompt you to check the ECU identify

BMW X3 E83 Steering Angle Learning by Launch X431 (6)

Select “Special Function”

BMW X3 E83 Steering Angle Learning by Launch X431 (6)

Select “Steering Angle Learning”

BMW X3 E83 Steering Angle Learning by Launch X431 (8)

The steering angle must be calibrate after following jobs:

-Replacement of steering angle sensor

-Replacement of DSC control unit

-Adjustment work on steering geometry

-Working on steering and/or front axle

BMW X3 E83 Steering Angle Learning by Launch X431 (8)

The run flat indicator must be additionally initialized after adjusting the steering angle sensor on completion of the following work:

-Replacement of DSC control unit

BMW X3 E83 Steering Angle Learning by Launch X431 (10)

It prompt you “Do you want to carry out steering angle sensor matching?”

Click “Yes” to continue

BMW X3 E83 Steering Angle Learning by Launch X431 (10)

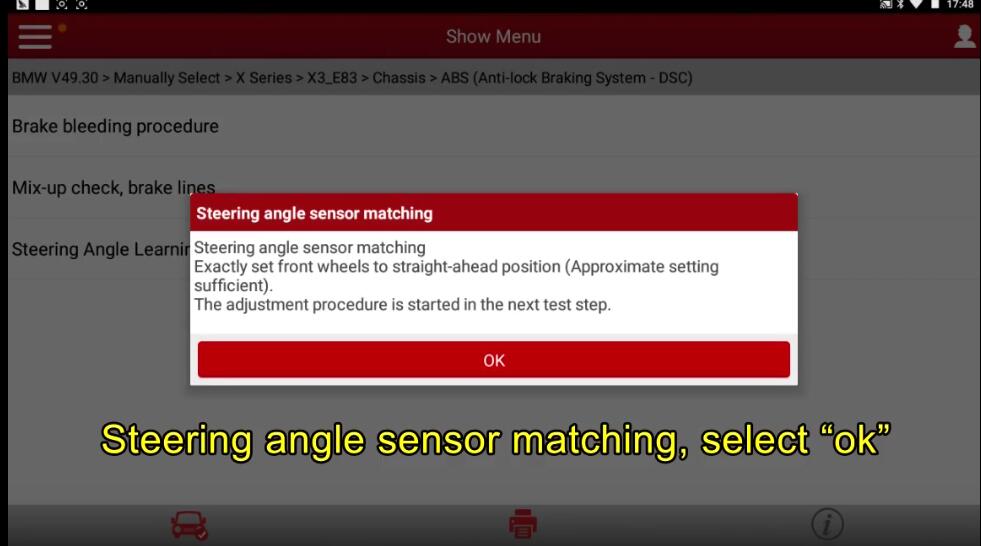

Steering angle sensor matching

Exactly set front wheels to straight-ahead position (Approximate setting sufficient)

The adjustment procedure is started in the next test step

BMW X3 E83 Steering Angle Learning by Launch X431 (12)

After successful calibration,it prompt above information

BMW X3 E83 Steering Angle Learning by Launch X431 (13)

Done!
