BMW E70 E71 Video In Motion Coding by NCS Expert

This article show you the guide on how to use BMW NCS Expert software to coding video in motion feature for BMW E70 and E71.And if you want to check more video in motion guide,please check here:Video In Motion Coding Guide



Preparations:

NCS Expert BMW Coding Software Download



Procedures:

Run NCS Expert software

BMW E70 E71 Video In Motion Coding by NCS Expert (1)

Create fsw psw man

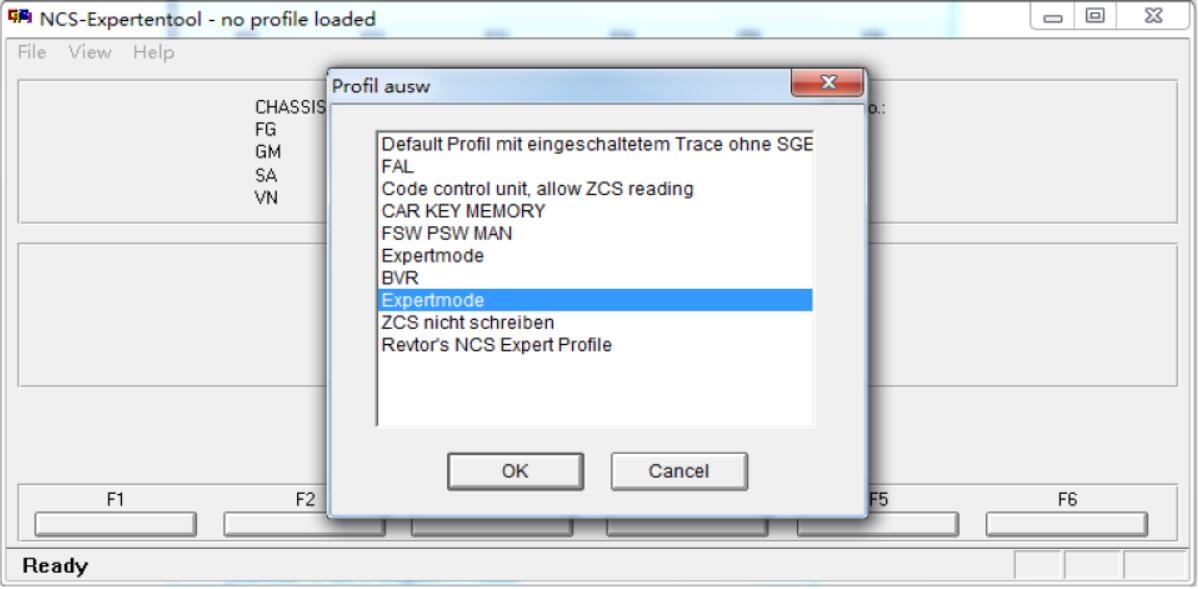

Select File–>Load profile–>Expertmode–>OK

BMW E70 E71 Video In Motion Coding by NCS Expert (2)

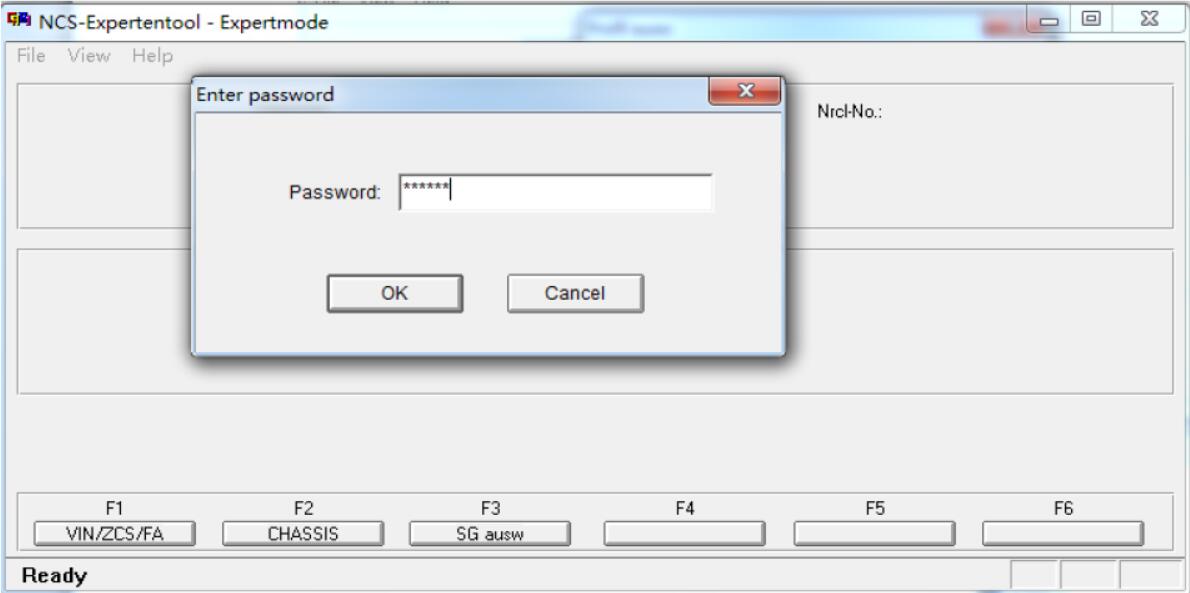

Select File–>Edit profile,then input password “repxet”

BMW E70 E71 Video In Motion Coding by NCS Expert (3)

Select “Car Memory”,then tick the options as below

BMW E70 E71 Video In Motion Coding by NCS Expert (4)

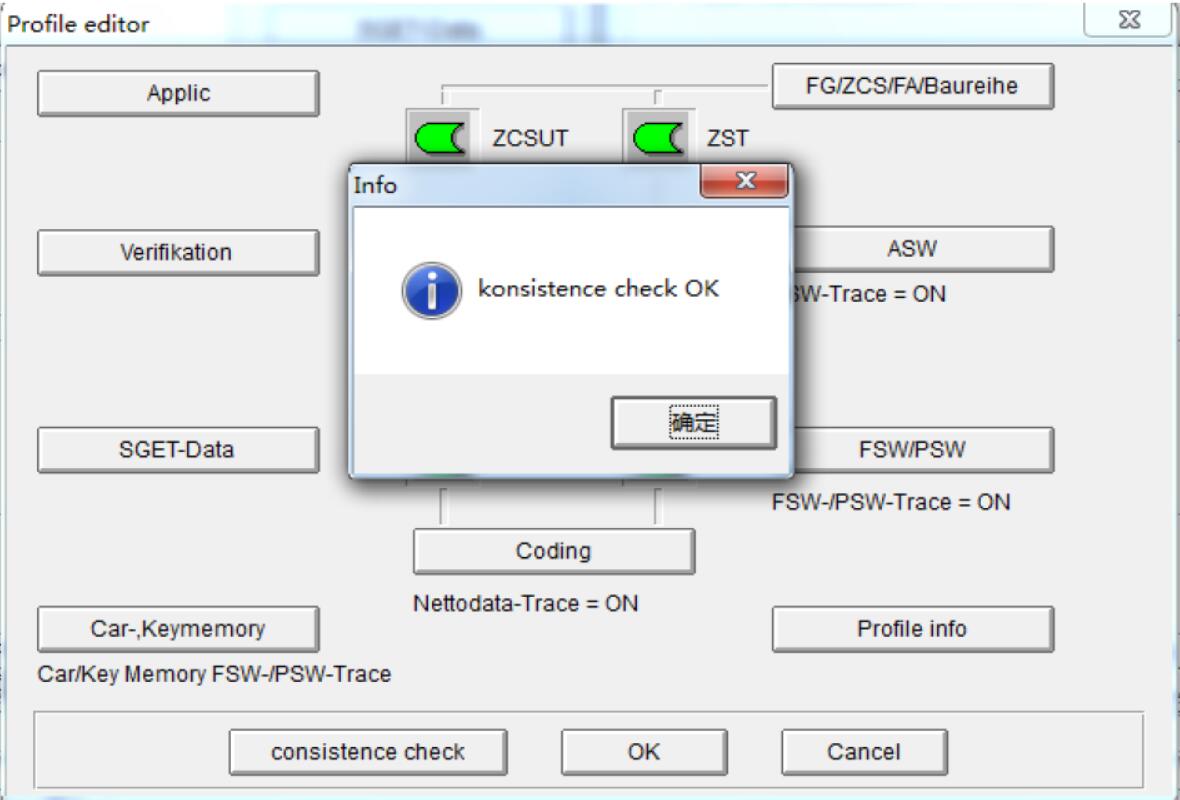

Click “Consistency check”,then it will prompt with below window massage,click “OK” to continue

BMW E70 E71 Video In Motion Coding by NCS Expert (5)

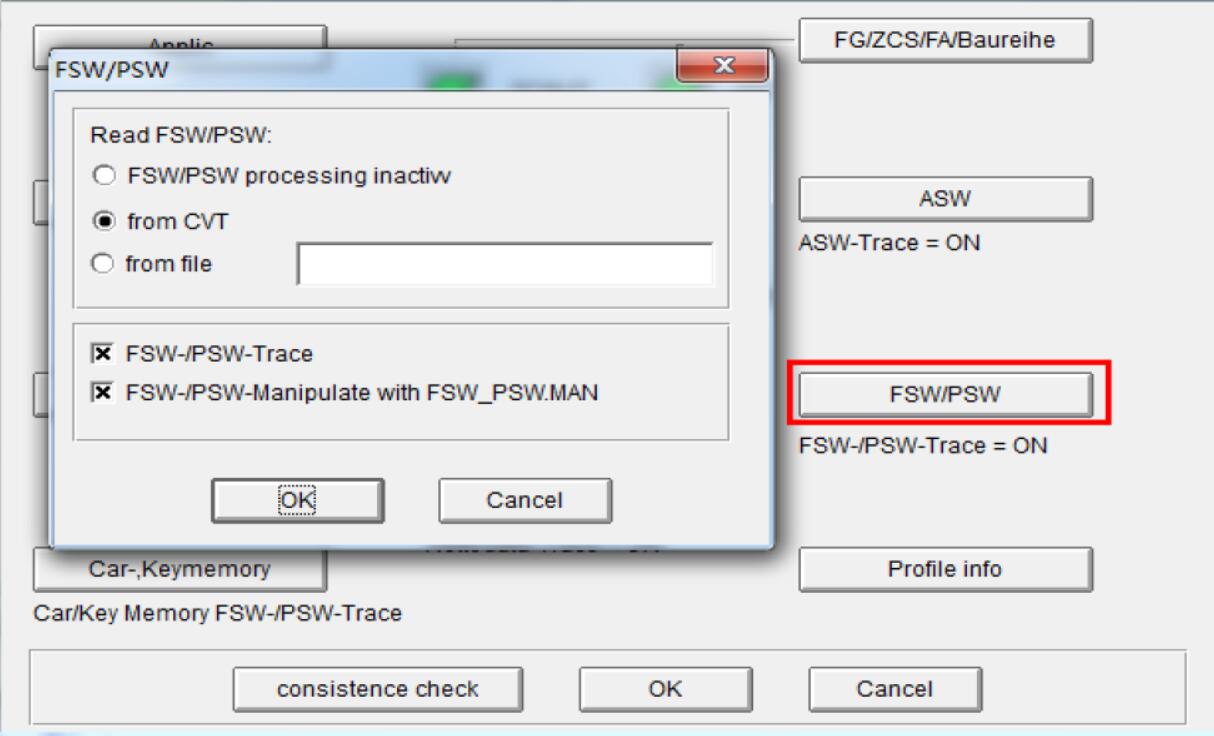

Then tick the options:

FSW-/PSW-Trace

FSW-/PSW-Mainpulate with FSW_PSW.MAN

And make sure you have selected “from CVT”,then click “OK” to continue

BMW E70 E71 Video In Motion Coding by NCS Expert (6)

Click “Consistency check”,then click “OK” to continue

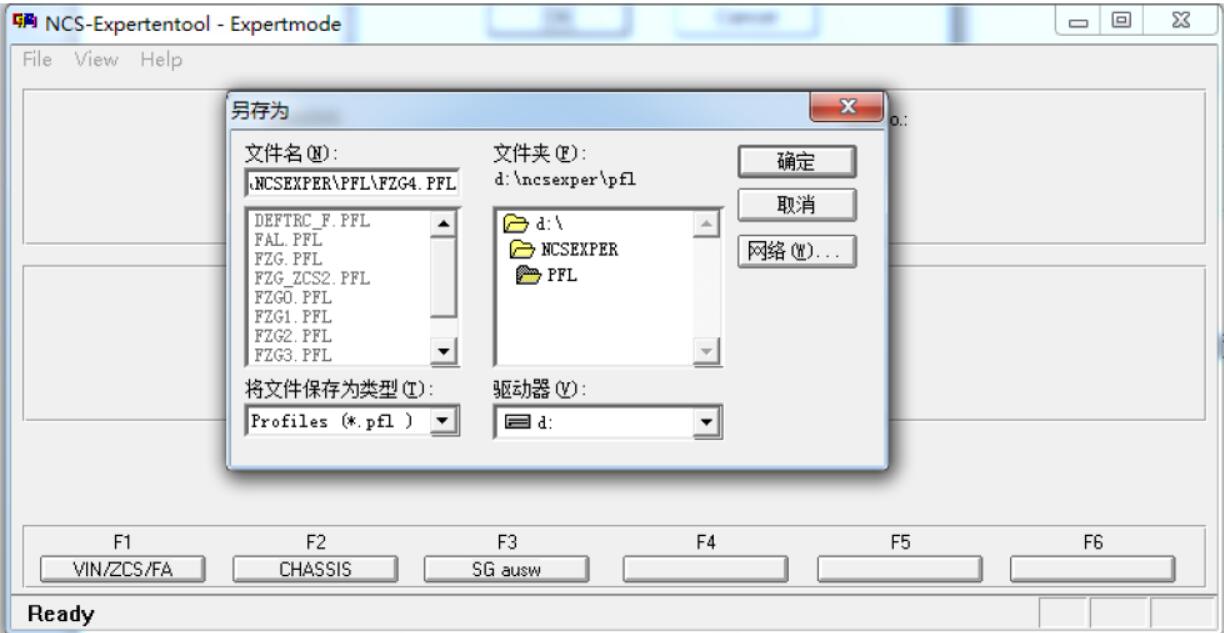

Select File–>save profile as–>FZG4.PFL (rename this file name by manually),click “OK” button to save the file.

BMW E70 E71 Video In Motion Coding by NCS Expert (7)

Select File–>edit profile–>input password “repxet”–>profile info

Then rename the profile name as “FSW PSW MAN”

BMW E70 E71 Video In Motion Coding by NCS Expert (8)

Now you have created FSW PSW MAN file successfully.



When you are performing coding,you need to select “fsw psw man” file you created just now.

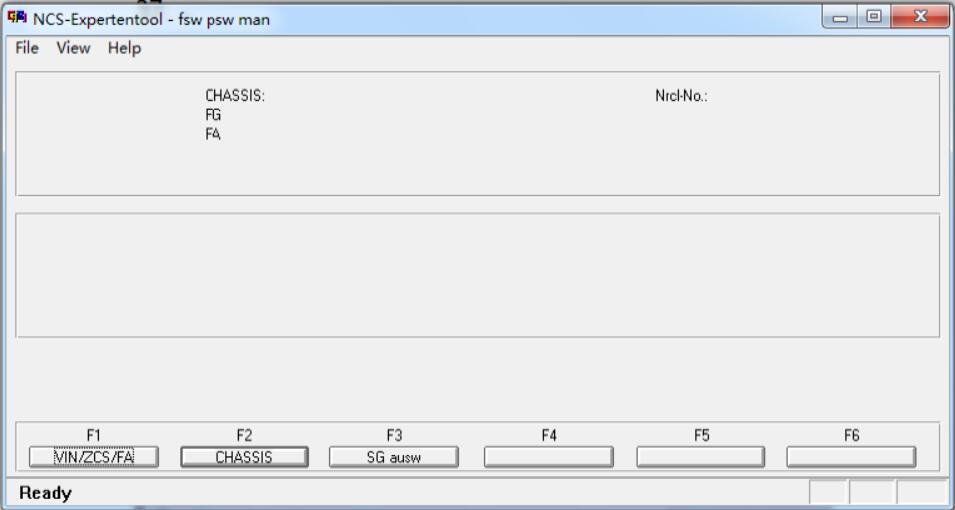

Load “fsw psw man”,select “File”–>Load profile–>”fsw psw man” show as below

BMW E70 E71 Video In Motion Coding by NCS Expert (9)

Press the “F2” on your keyboard,select vehicle chassis number

BMW E70 E71 Video In Motion Coding by NCS Expert (10)

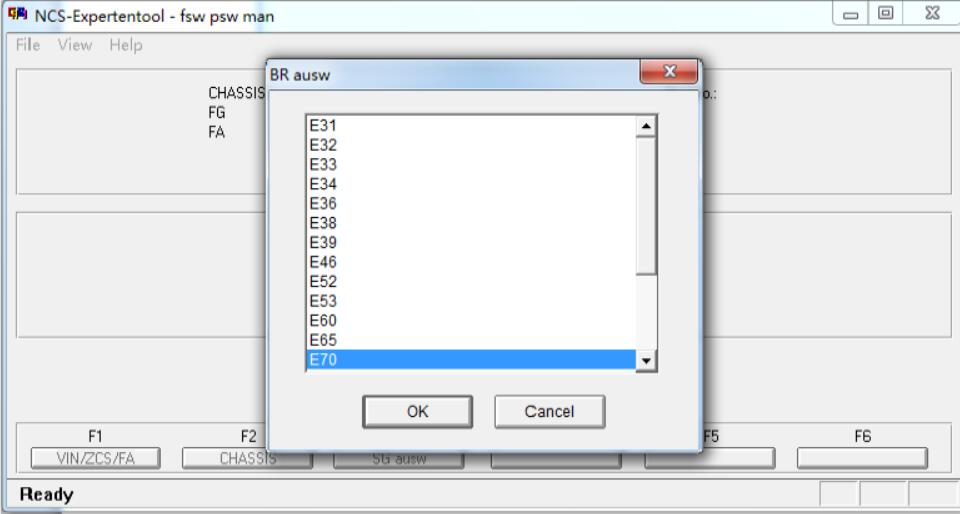

Select “E70”,then click “OK” to continue

BMW E70 E71 Video In Motion Coding by NCS Expert (11)

Now click “VIN/ZCS/FA” or press “F1”

BMW E70 E71 Video In Motion Coding by NCS Expert (12)

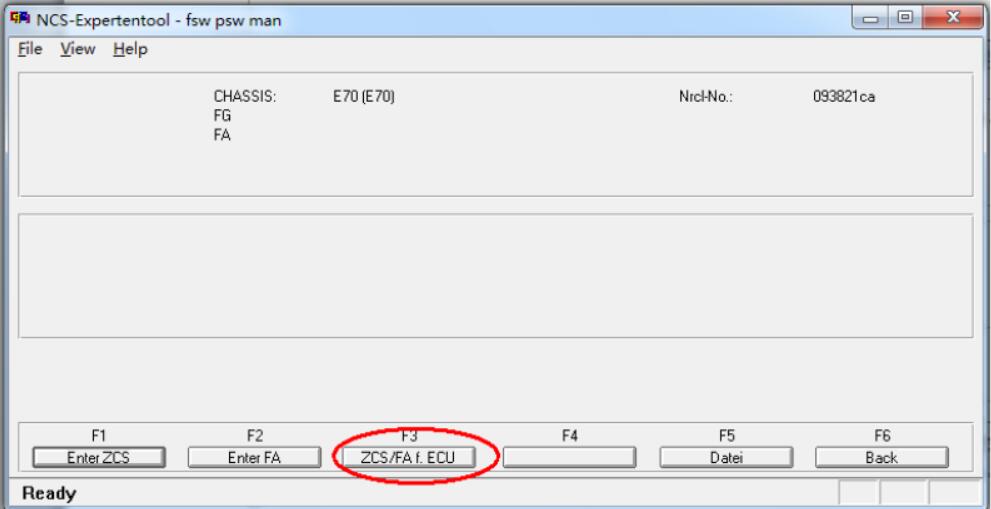

Select “F3” to read FG,FA

BMW E70 E71 Video In Motion Coding by NCS Expert (13)

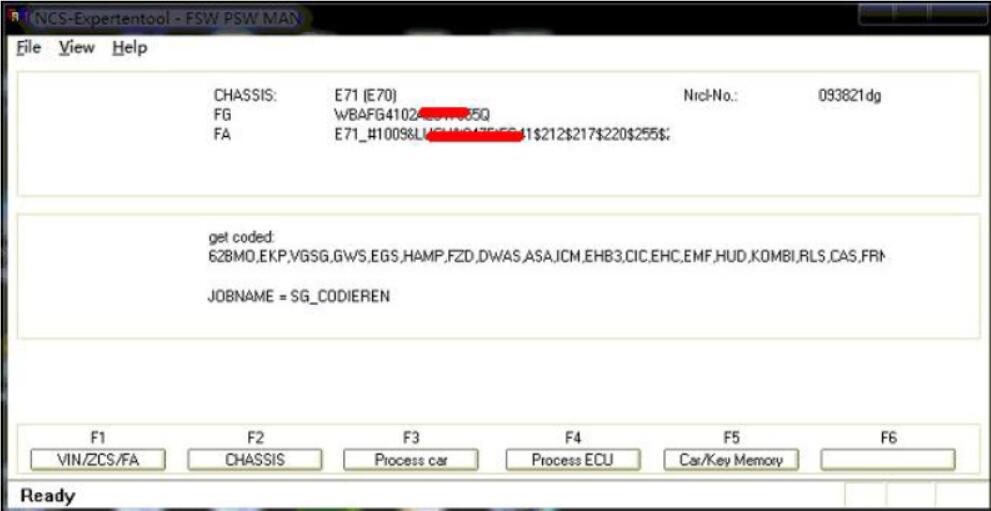

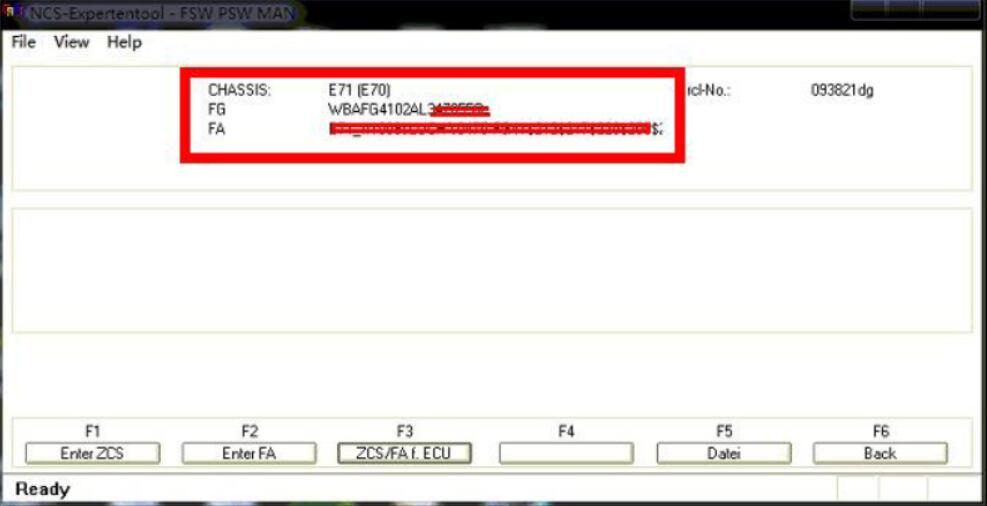

Now it will show the FG,FA on the NCS Expert

BMW E70 E71 Video In Motion Coding by NCS Expert (14)

Click “F6” button to read all modules data,here recommend you to make backup (FSW PSW,TRC)

BMW E70 E71 Video In Motion Coding by NCS Expert (15)

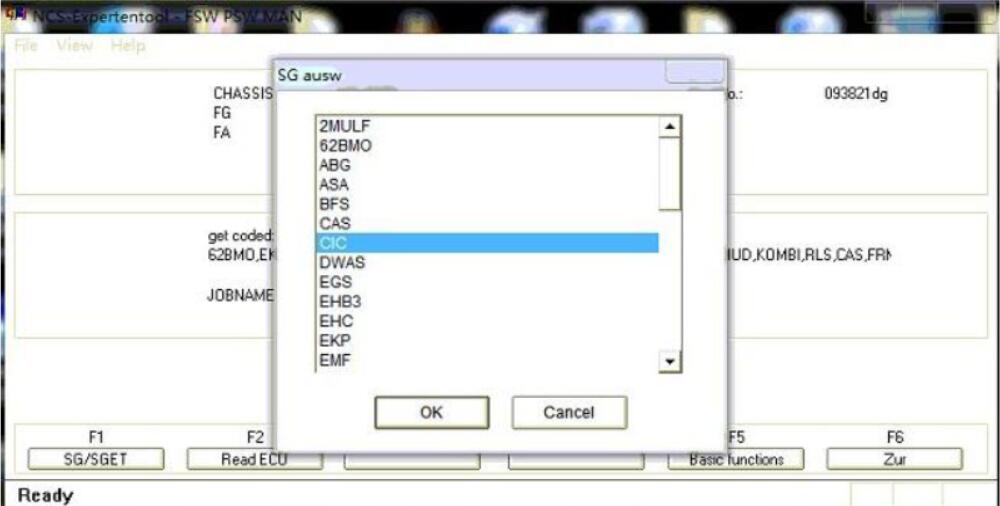

Click “F4” (Process ECU),select “CIC” and click “OK” to continue

BMW E70 E71 Video In Motion Coding by NCS Expert (16)

Click “F4” (Process ECU),then it will prompt you with below screen,just close it

BMW E70 E71 Video In Motion Coding by NCS Expert (17)

Make backup of work data (FSW PSW.TRC),this is CIC modules data,you can create a new folder to save this file

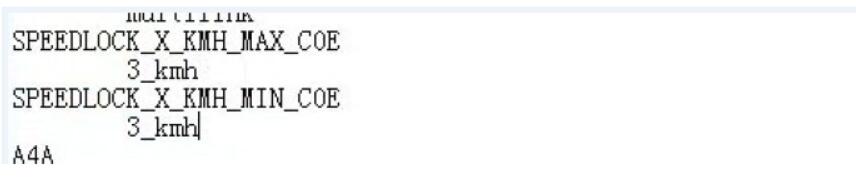

Open FSW PSW.TRC to modify below data,then save this file to cover original (not backup file)

BMW E70 E71 Video In Motion Coding by NCS Expert (18)

Back to NCS Expert software to check the file name show as below

BMW E70 E71 Video In Motion Coding by NCS Expert (19)

Then go to C:\NCSEXPER\DATEN\E70 to select CIC.C1A,and backup this CIC.C1A file

Run data2txt14022011.exe

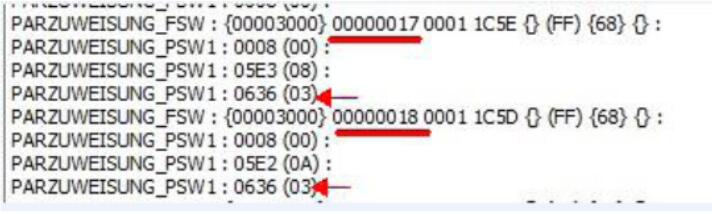

File–>Open to select CIC.C1A,and locate below position

BMW E70 E71 Video In Motion Coding by NCS Expert (20)

Modify both (03) behind 0636 to FF

Then select File–>procedure cXX,now use this CIC.C1A to cover original file

Back to NCS,press F5(basic function),select “coapiReadSgGetFswPsw”

Click “F2(Job)”,select SG_CODIEREN,and then click “OK”

Now click “F3(Execule job)”

Done!
