Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full

This instruction show the guide on how to use Zed-Full immobilizer system to do all key lost programming for Mercedes Benz W204 W207 W212(old).And for more Benz key programming check here:Mercedes Benz Key Programming Projects.

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (1)



Procedures:

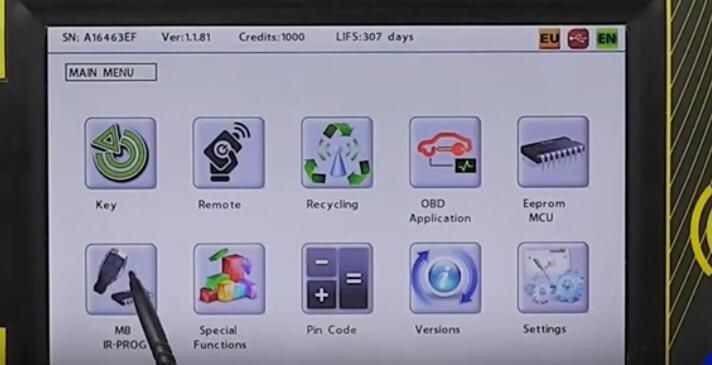

Select “MB-IR-PROG”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (2)

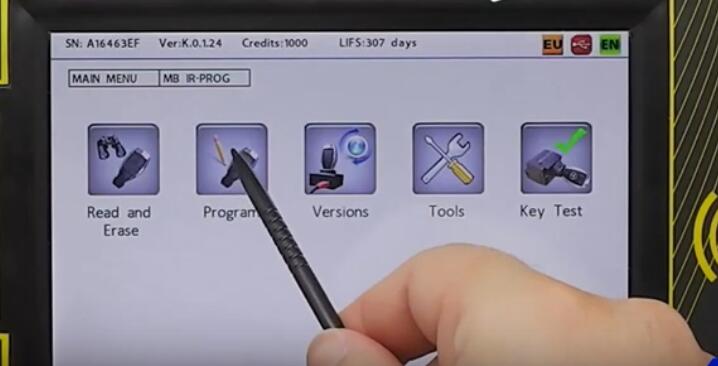

Select “Program”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (3)

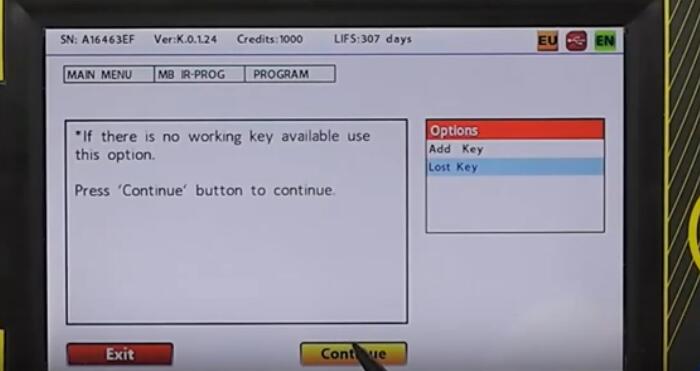

Select “Lost Key” and click “Continue”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (4)

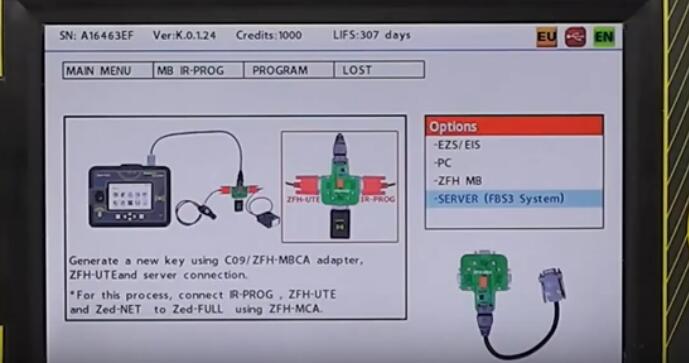

Select “SERVER BGA/FBS3”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (5)

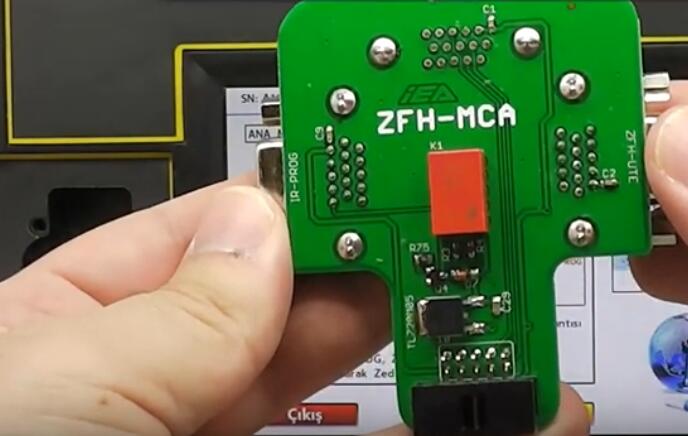

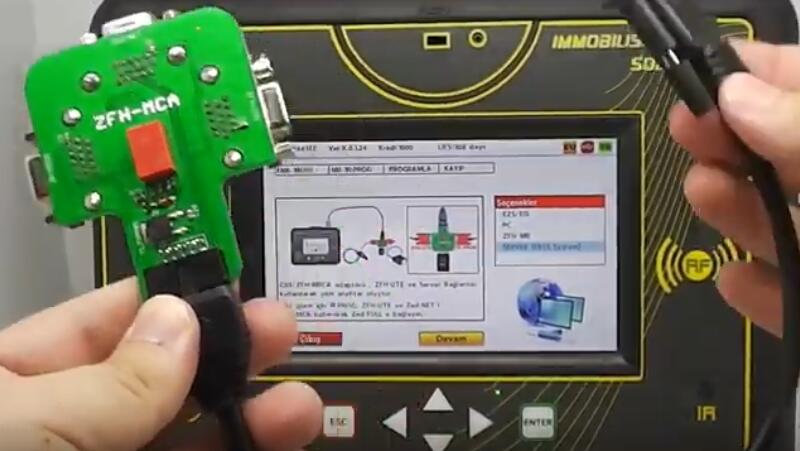

ZFH-MCA,Zed-NET,ZFH-UTE adapter are also required for this application

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (6) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (7)

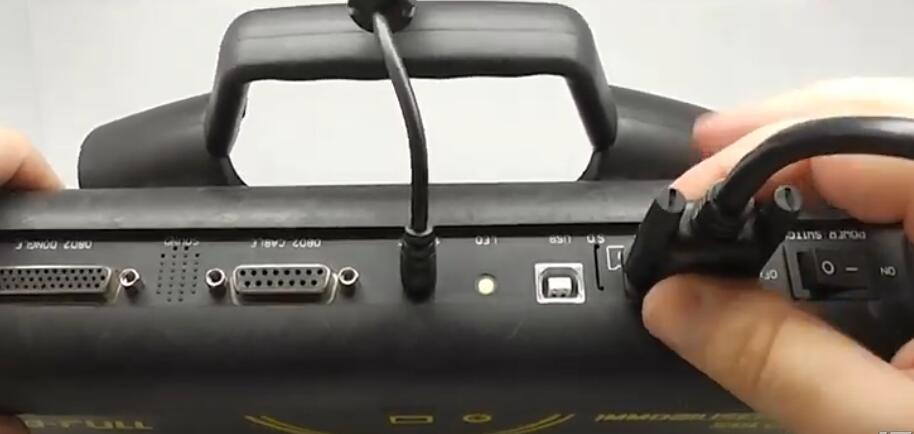

Connect “ZFH-C16” cable to “Zed-Full” EXTERNAL Port

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (8)

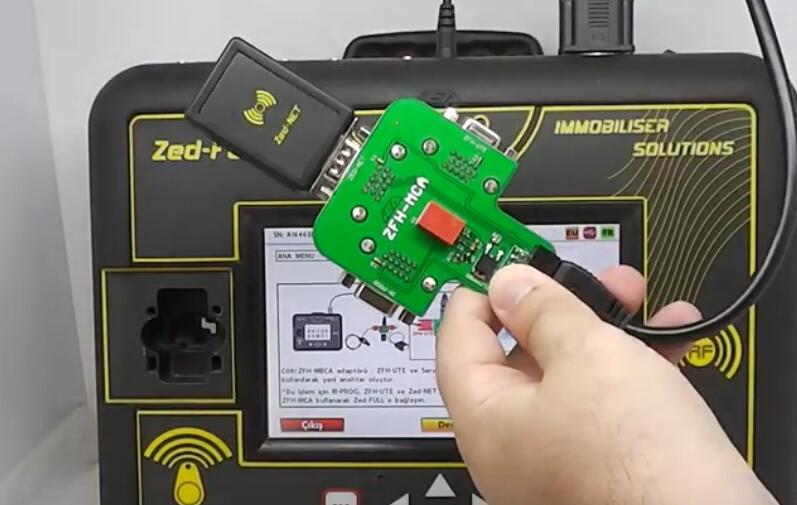

Connect “Zed-NET” to ”ZFH-MCA” adapter

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (9)

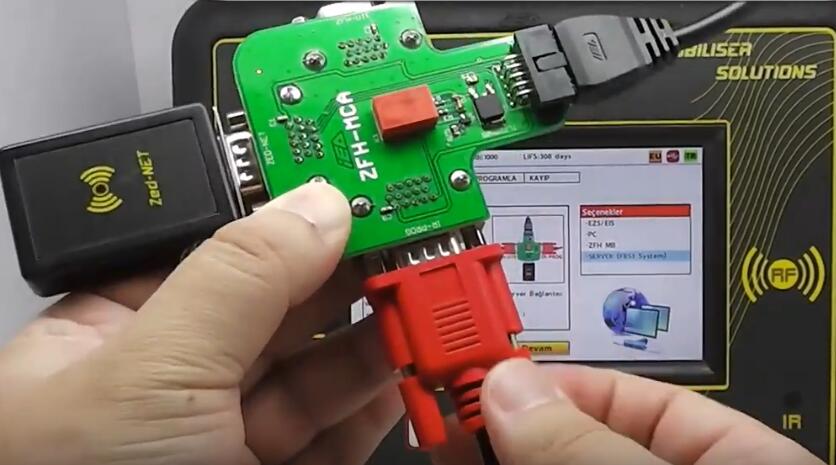

Connect “ZFH-C10” cable to “ZFH-MCA” adapter.

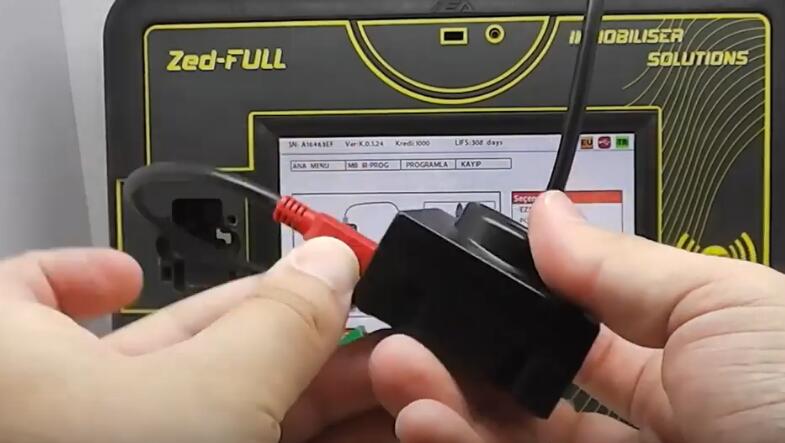

Also connect “ZFH-C10” cable to “IR-PROG”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (10) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (11)

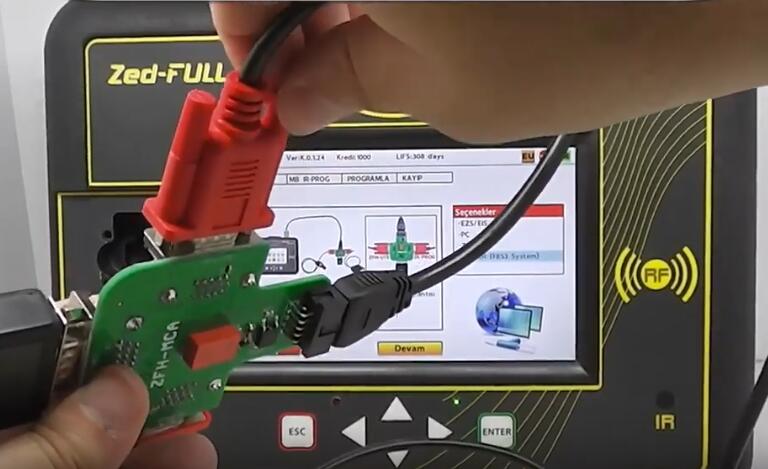

Connect “ZFH-C15” cable to “ZFH-MCA” adapter and also connect “ZFH-C15” cable to “ZFH-UTE”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (12) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (13)

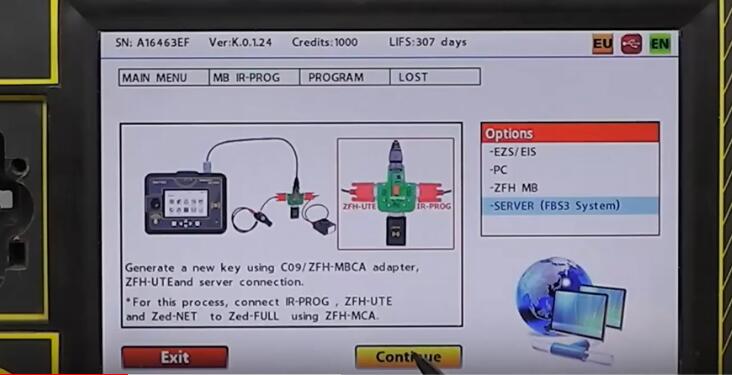

Click “Continue”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (14)

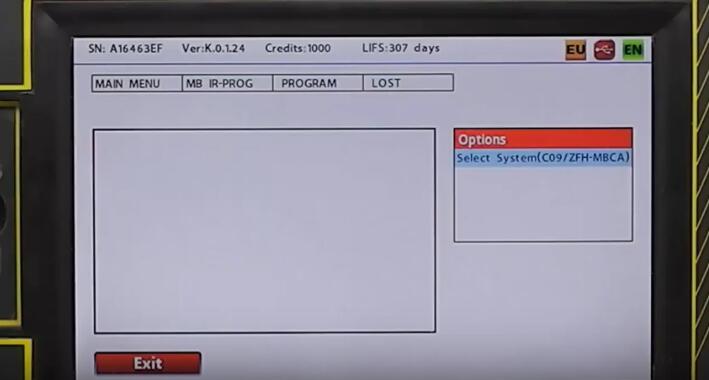

Press “Select System(C09/ZFH-MBCA)”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (15)

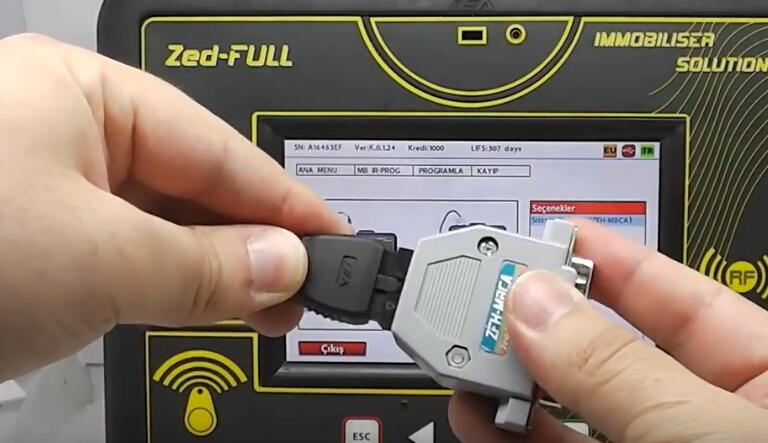

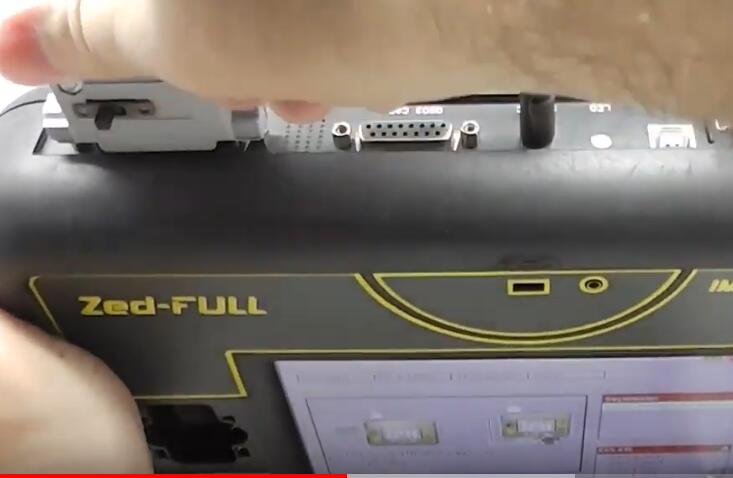

Connect “ZFH-MBC1” cable to “ZFH-MBCA” adapter and insert “ZFH-MBCA” adapter to Zed-Full “OBD2 Dongle” socket

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (16) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (17)

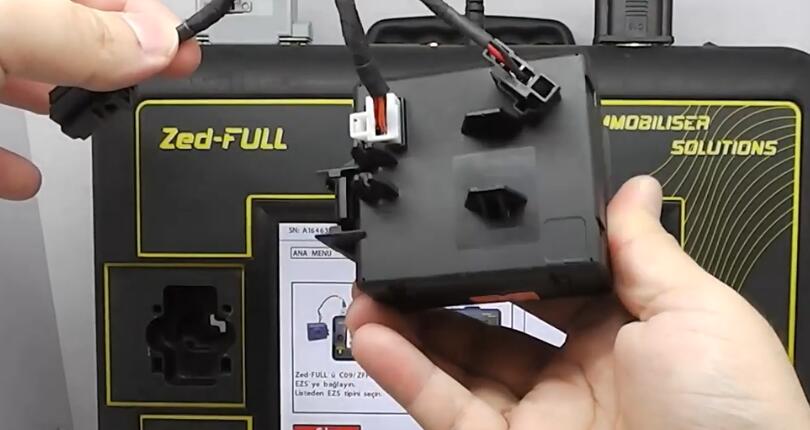

Connect “ZFH-MBC1” cable to EZS/EIS module socket

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (18)

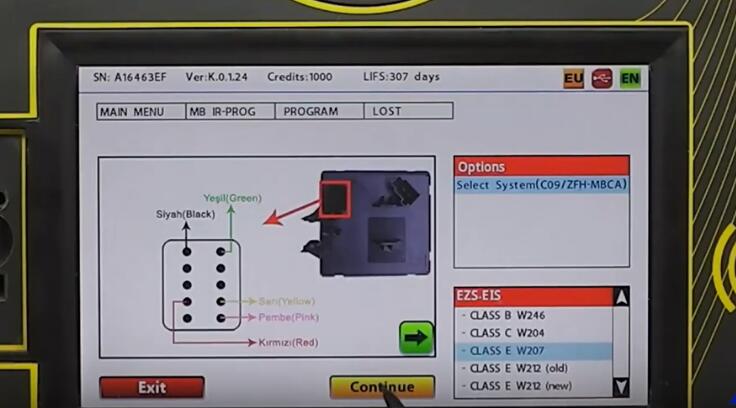

Ensure that all connections are done properly and select “CLASS E W207” option,then press “Continue” button

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (19)

ESZ/EIS unit has been read,press “Continue” button

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (20)

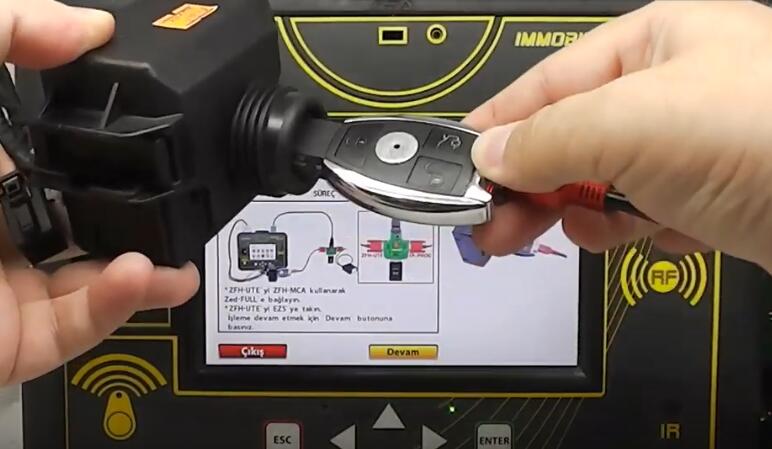

“ZFH-MCA” connections have already been done.Now put “ZFH-UTE” to EZS/EIS unit(ignition) and press “Continue” button

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (21)

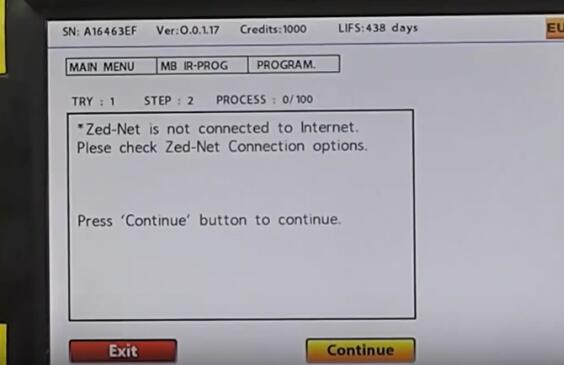

“Zed-NET” has already been connected to this WiFi network,so not need to enter password again.Just press onto “ON” button to active “Zed-NET”

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (22) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (23)

Zed-FULL is connecting to iEA SERVER to make Hash calculation

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (24)

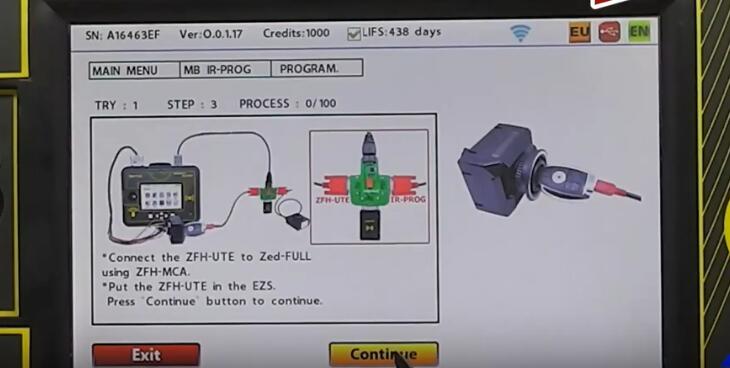

For password calculation “ZFH-UTE” must be connected to EZS/EIS unit.To start process press on “Continue” button

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (25)

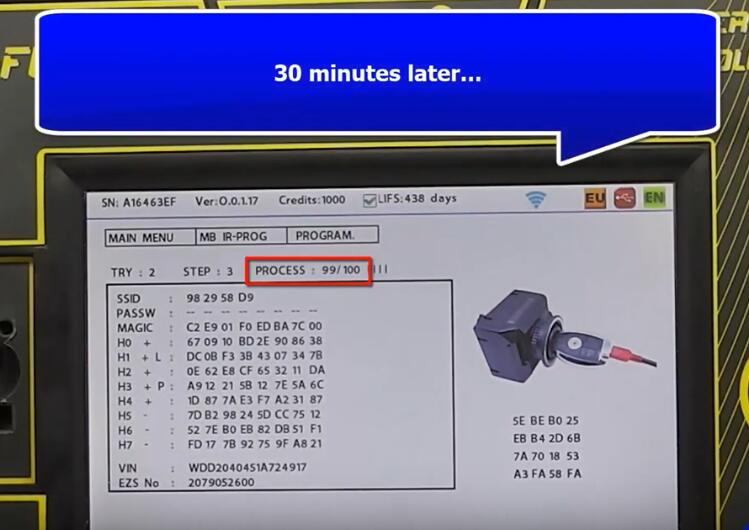

Then it will take about 30 minutes to calculate password,please wait…

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (26)

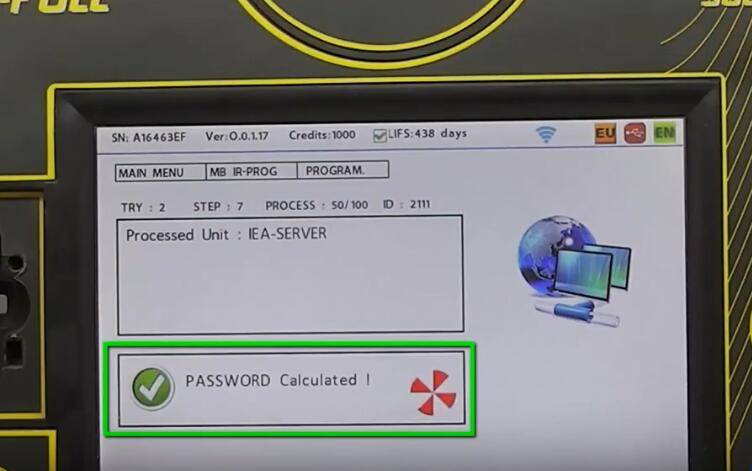

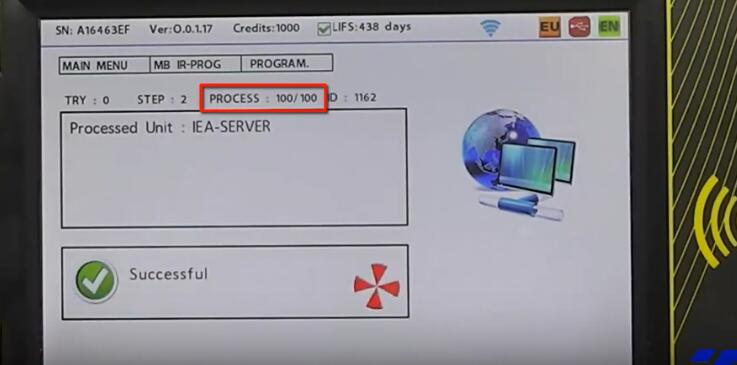

Password calculated!

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (27)

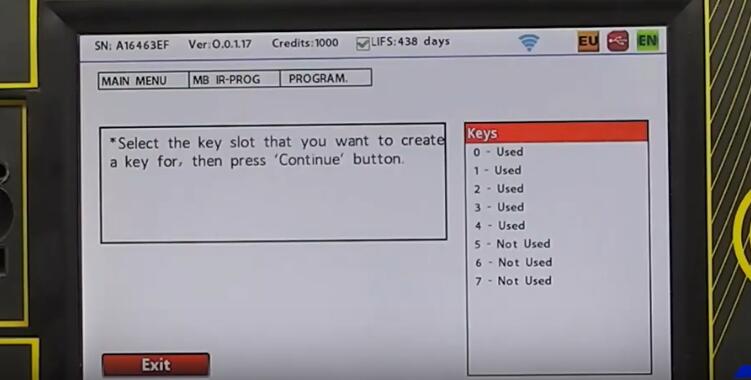

If password calculation fails,Zed-FULL will continue the process automatically till calculating password.After password calculation,key list will be viewed on Zed-FULL screen.

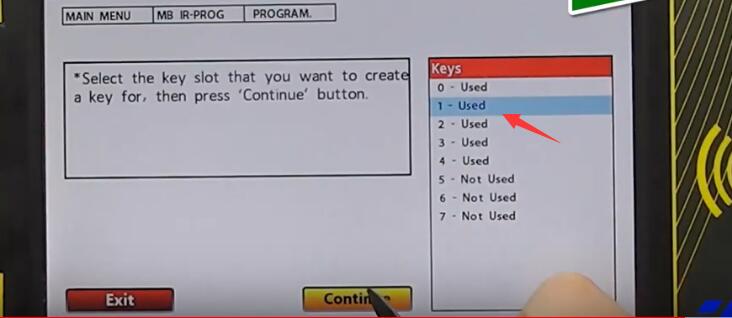

In case programming a new key on a “Used” marked slot,new programmed key will start the car but same slot old key will not.

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (28) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (29)

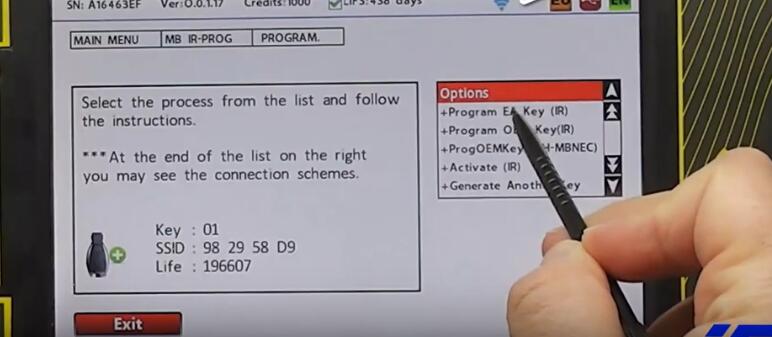

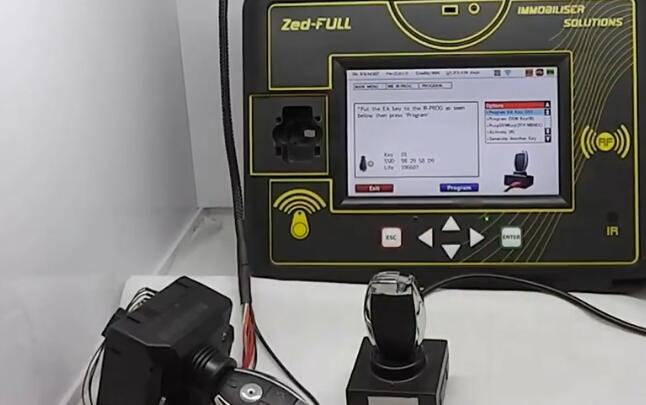

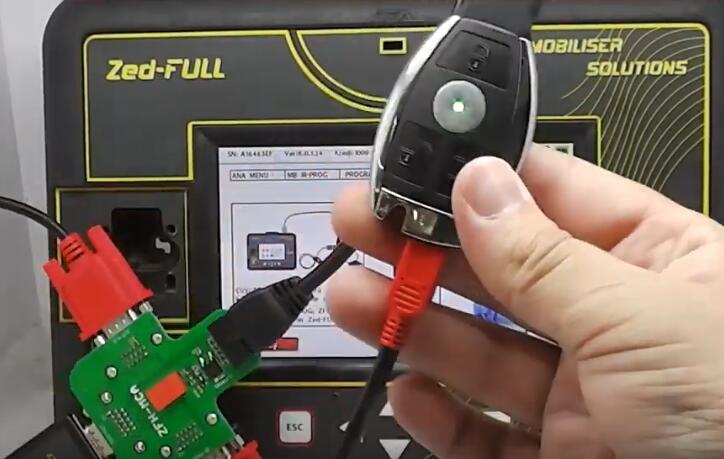

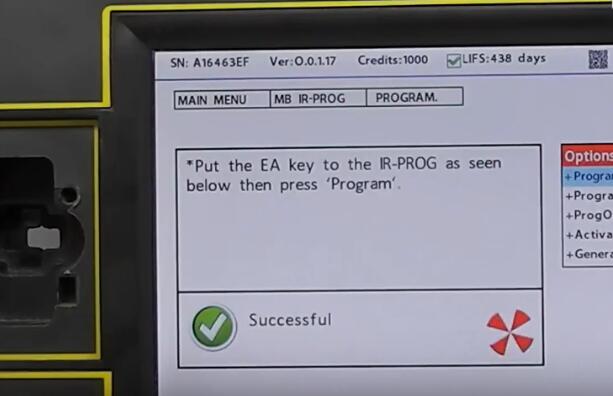

Select “EA Key(IR)”put “EA” version key to “IR-PROG” and press “Program” button

Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (30) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (31) Benz W204 W207 W212(Old) All Key Lost Programming by Zed-Full (32)
