This instruction show you guide on how to use Autel IM508 and G-BOX3 to do all keys lost programming for Benz GLK 2008-2014.
Autel IM508S Programmer (Amazon)
Connect Autel IM508S tablet to XP400 Pro by USB cable
Then use OBD cable to connect the tablet and G-Box3

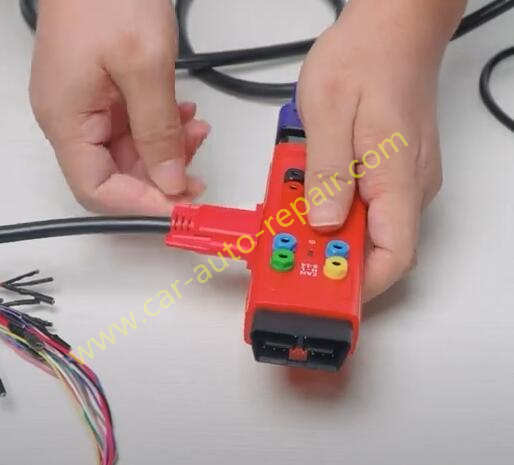

Connect the jumper to the side of G-BOX3
Access Autel IM508S menu to check the diagram
Manual select car model and year E series,GLK 2008-2014
Control unitàAll key lost fastàOn bench (G-Box fast)
Follow the diagram to connect the wires
Then power on the G-BOX3
Now here connect “OK” to enter next step
After data reading follow the prompt message to insert the blank key into the IR keyhole on the programmer
Press “OK” to process next step
Here enter 16 digits key password
Please insert the blank key into the IR keyhole on the programmer,and press “OK”
Insert the new key into the EIS.If the red indicator lamp on the key lights up and goes off,the key learning is successful.
If the red indicator lamp stays lit,try inserting and removing the key for several times.If still not working,the key addition failed.
Turn ignition on and check if the vehicle can be started normally.If the vehicle not started normally,the key addition failed
Check if remote lock and unlock functions can work normally.If not,please check if the key battery can not work normally.
If the key battery works normally and the remote function is still invalid,the key addition failed.
The key is generated successfully
