Benz 722.9 TCM EHS Programming & Coding by Vediamo

This instruction show you guide on how to use Vediamo to program and code for Benz 722.9 transmission control module.



Benz TCM EHS Programming & Coding:

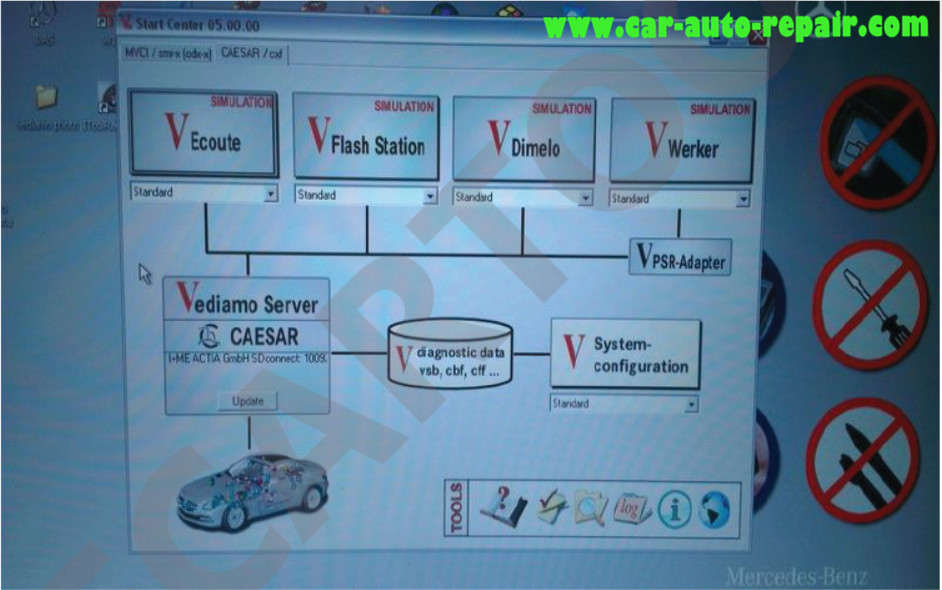

Connect MB SD C4 interface to Benz and run Vediamo software,then select “VEcoute”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (1)

We are going to do EHS programming,so here we search “VGS” to find “VGSNAG2” and click “OK” to connect to ECU

Benz 722.9 TCM EHS Programming & Coding by Vediamo (2)

After connection build,select “Coding”–>”Flash”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (3)

Then the current flash state show as below.

Here you need to pay attention on the version of control module,make sure which version to be programmed.If you can not ensure,please use Xentry software to get the control module version.

Benz 722.9 TCM EHS Programming & Coding by Vediamo (4)

Follow below order to select version file and programmed file,then click “Add” to search file

Benz 722.9 TCM EHS Programming & Coding by Vediamo (5)

The 722.9 transmission control module programmable data is in the NAG2 folder,open NAG2 folder.

Benz 722.9 TCM EHS Programming & Coding by Vediamo (6)

Here accord to the EHS information,select “0019088100” to load

Benz 722.9 TCM EHS Programming & Coding by Vediamo (7)

Make sure you have load the data file “0019088100”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (8)

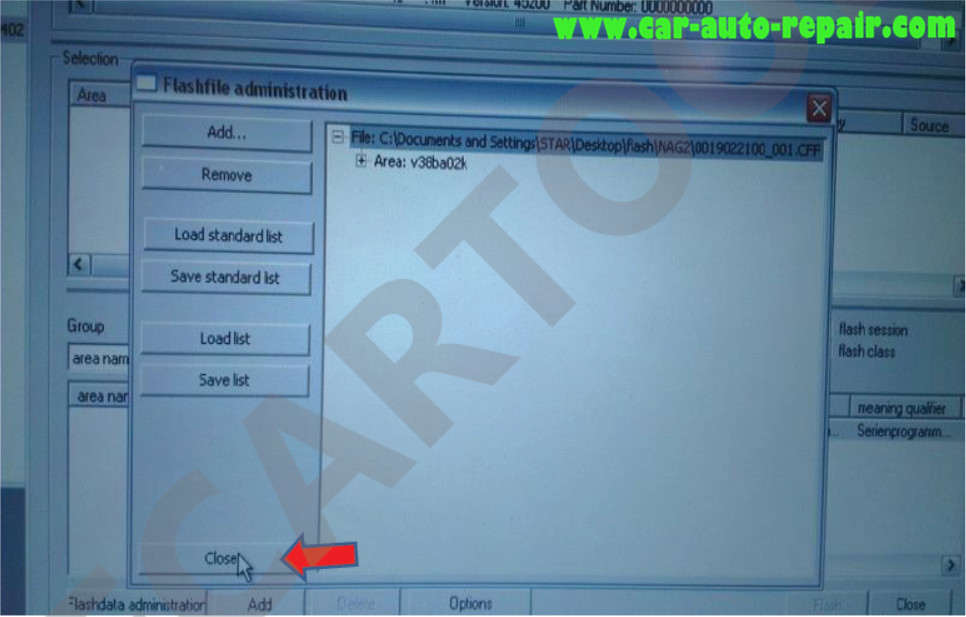

Click close this window

Benz 722.9 TCM EHS Programming & Coding by Vediamo (9)

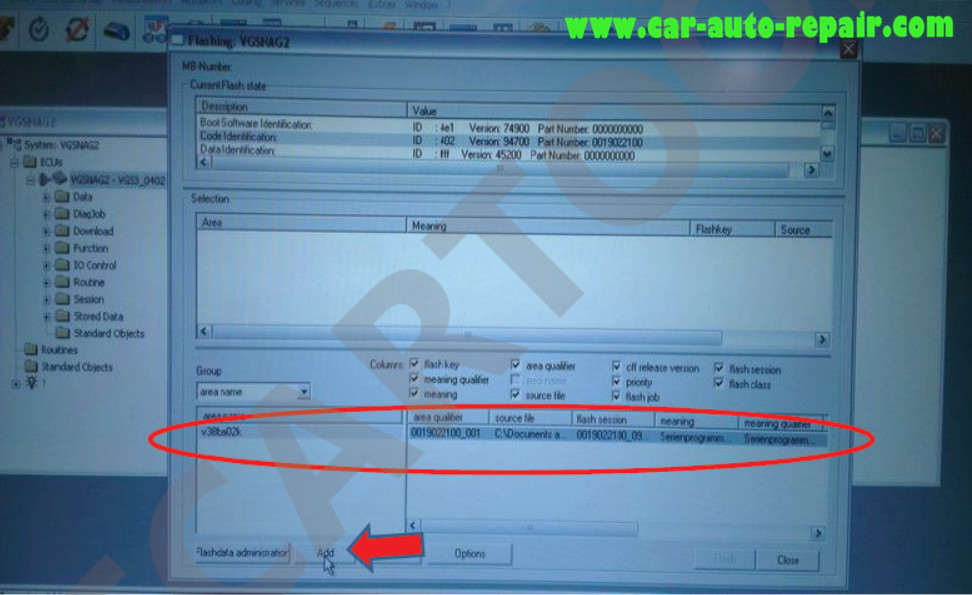

Then click “Add” button

Benz 722.9 TCM EHS Programming & Coding by Vediamo (10)

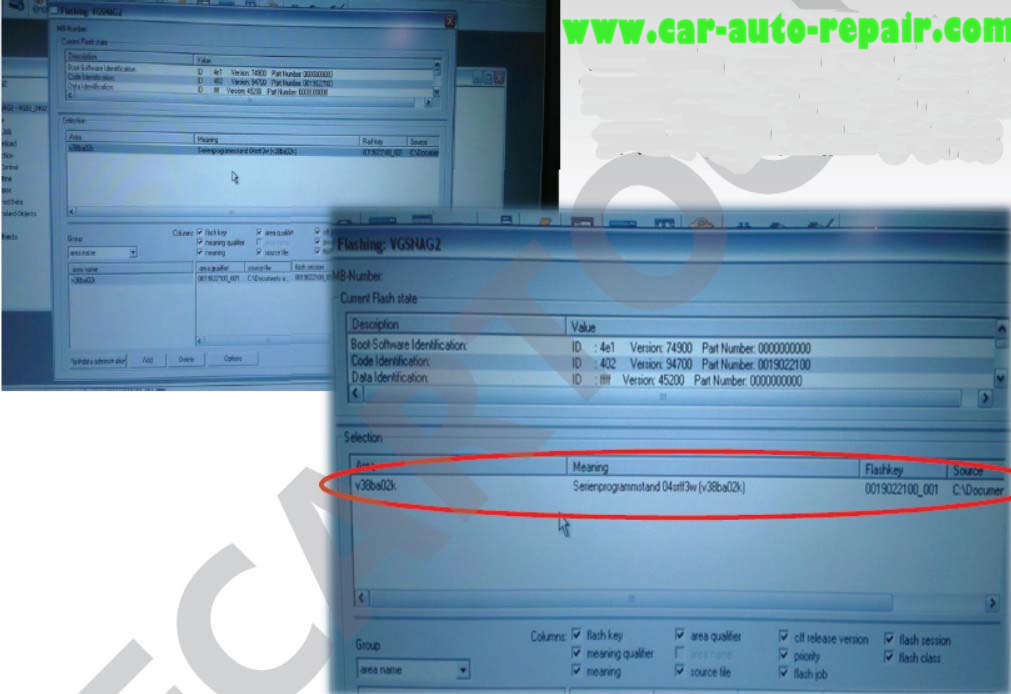

Now you can see you have add the flash file

Benz 722.9 TCM EHS Programming & Coding by Vediamo (11)

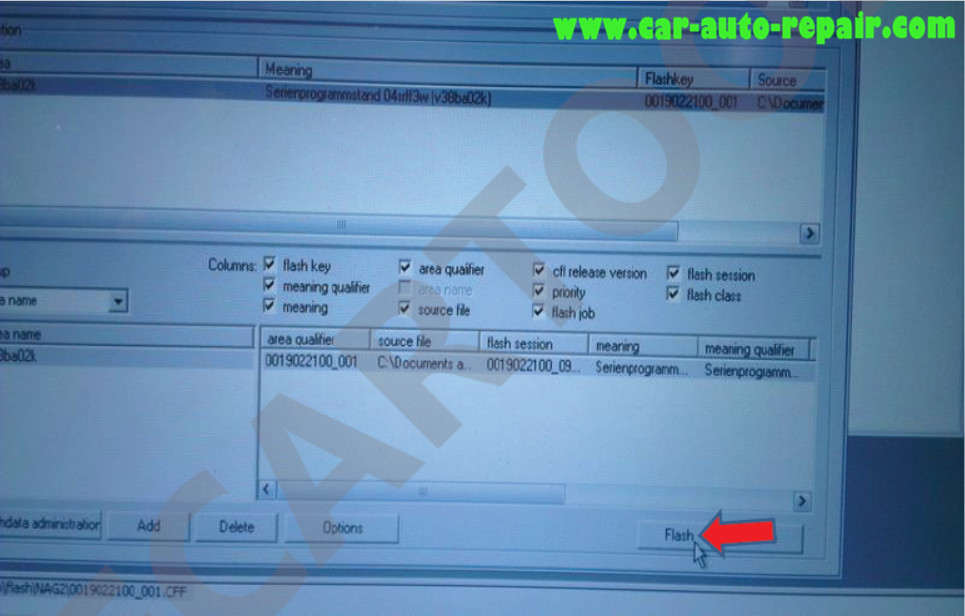

Click “Flash” button to start

Benz 722.9 TCM EHS Programming & Coding by Vediamo (12)

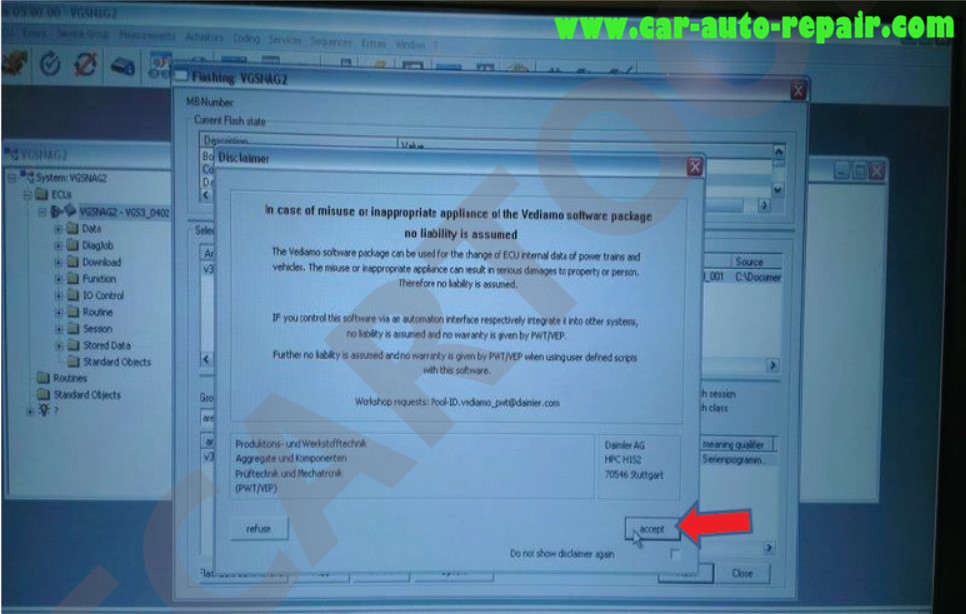

Click “accept” button to continue

Benz 722.9 TCM EHS Programming & Coding by Vediamo (13)

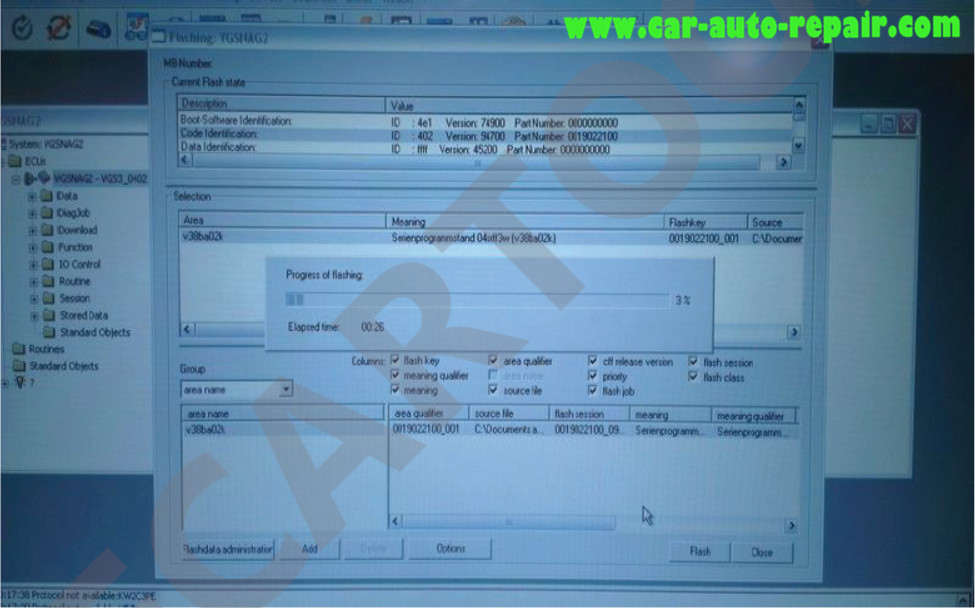

Programming process…

Benz 722.9 TCM EHS Programming & Coding by Vediamo (14)

After programming complete,the ECU connection will disconnect automatically.

Benz 722.9 TCM EHS Programming & Coding by Vediamo (15)

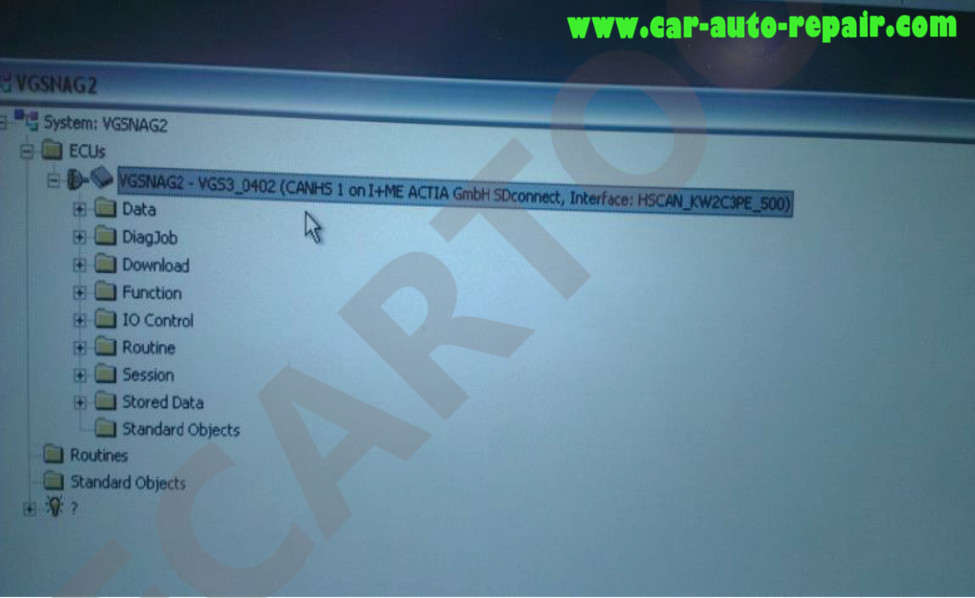

Now you can perform Vediamo coding or SCN online coding

Benz 722.9 TCM EHS Programming & Coding by Vediamo (16)

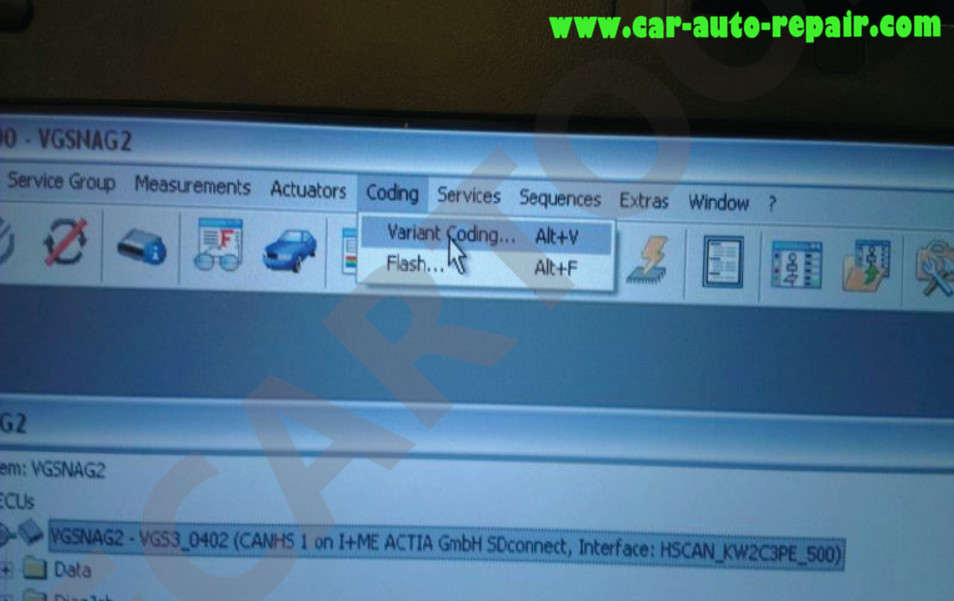

Re-connect to EHS,and select “Variant Coding”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (17)

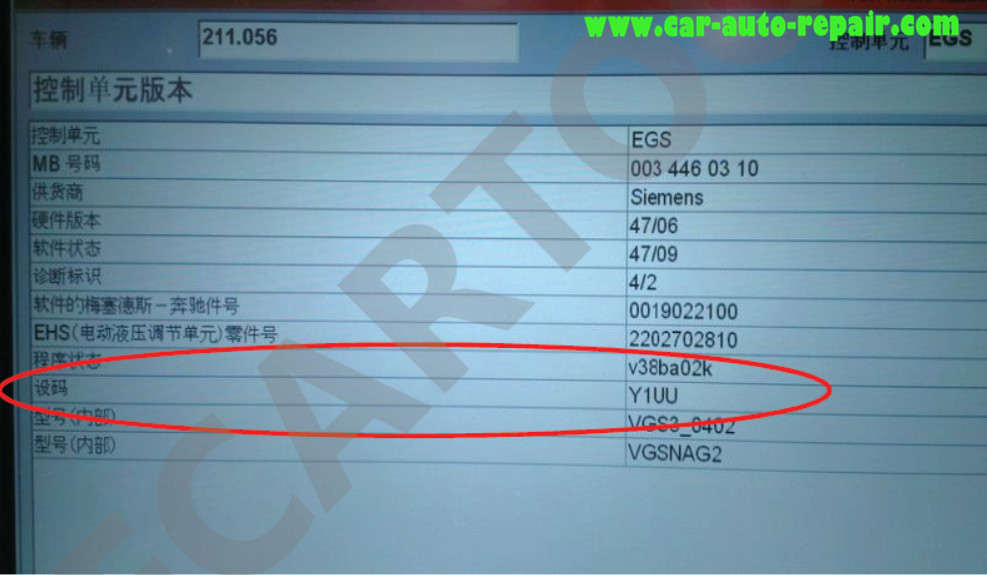

You should get the coding information about EHS SCN code value,like as below “Y1UU”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (18)

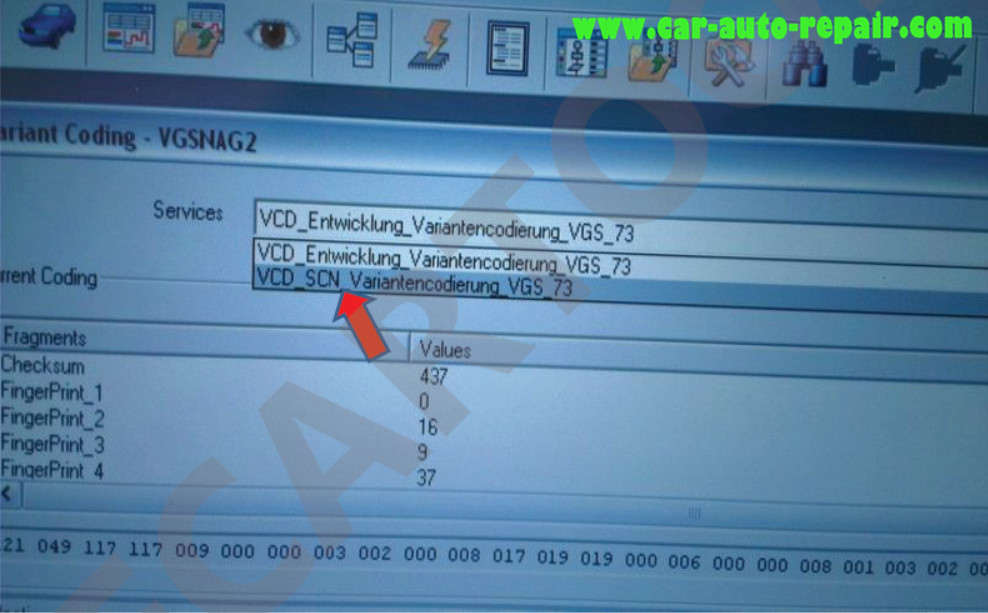

Select “VCD_SCN”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (19)

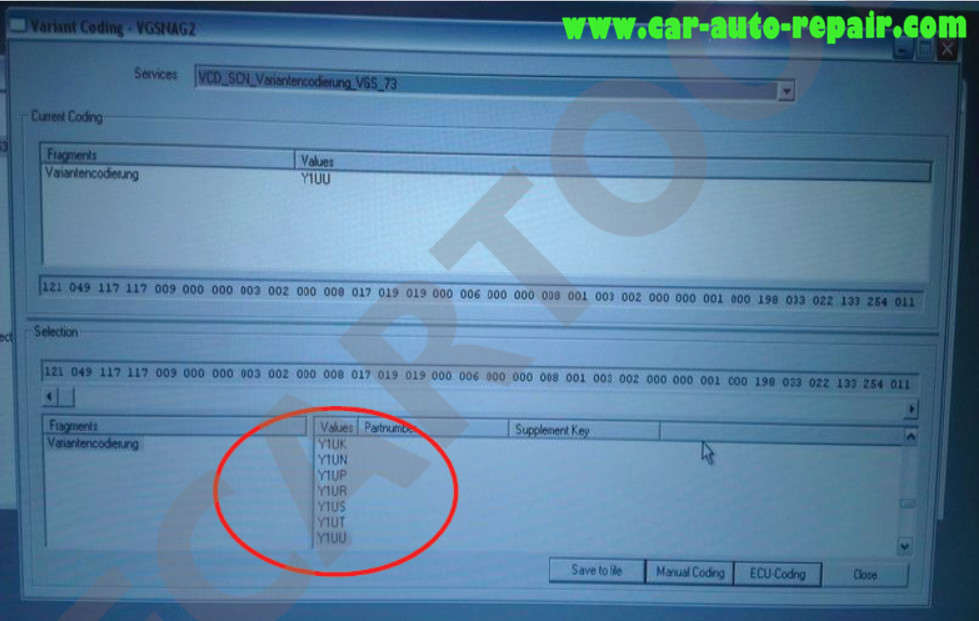

Check the code blow

Benz 722.9 TCM EHS Programming & Coding by Vediamo (20)

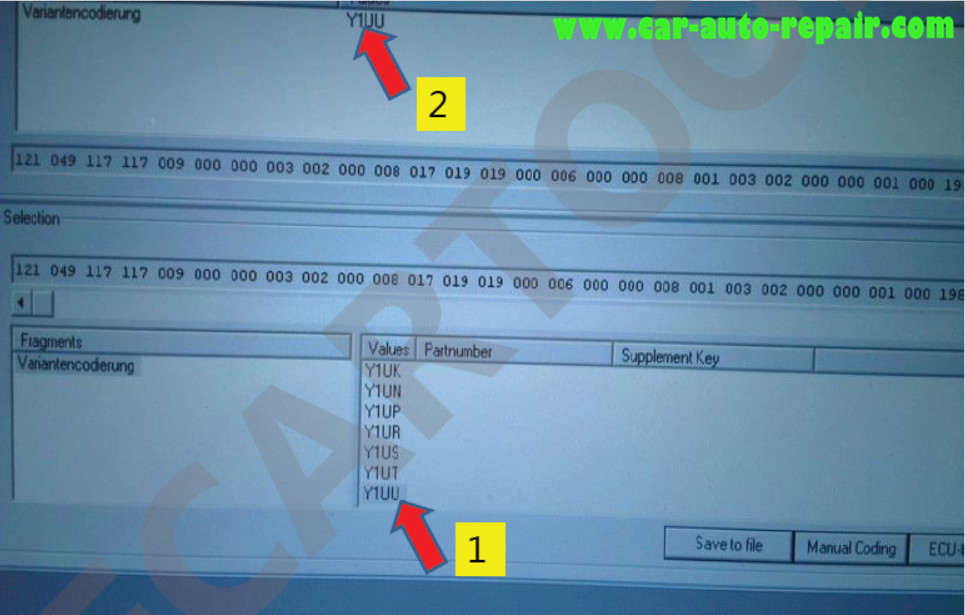

Select “Y1UU”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (21)

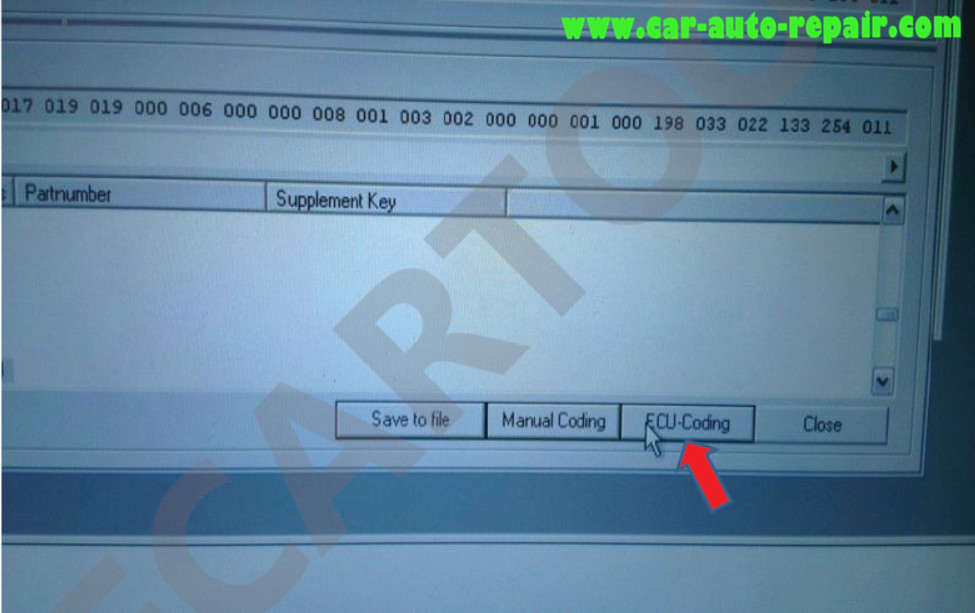

Click “ECU-Coding”

Benz 722.9 TCM EHS Programming & Coding by Vediamo (22)

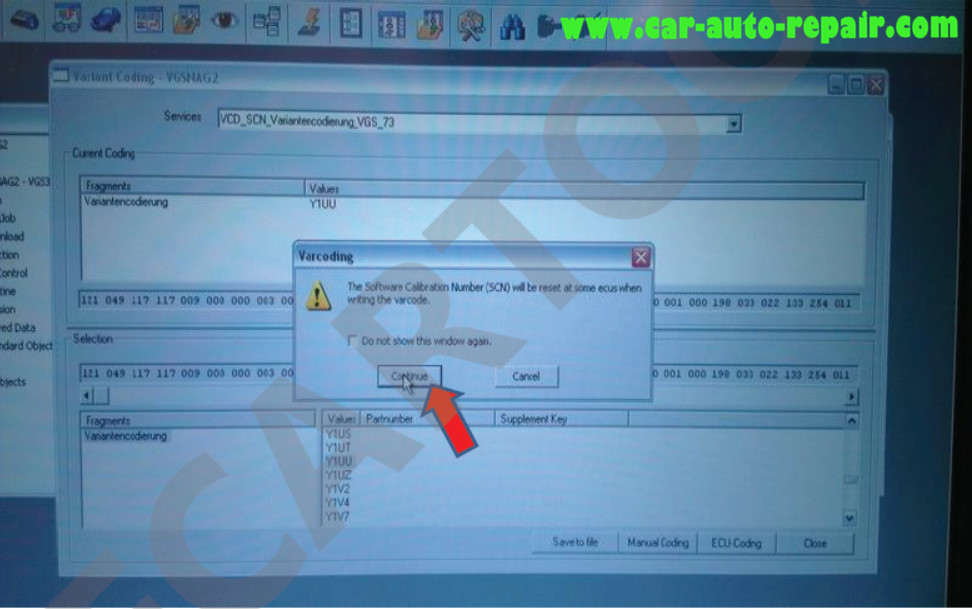

The Software calibration Number(SCN) will be reset at some ecus when writting the varcode.

Click “Continue” to coding

Benz 722.9 TCM EHS Programming & Coding by Vediamo (23)

Finish

Benz 722.9 TCM EHS Programming & Coding by Vediamo (24)
