What Scania VCI3 Interface Light Lamps Indicate?

Scania VCI3 has a number of lamps indicating status,just like its predecessor VCI2. New for VCI3 is
a blue lamp for information about the wireless communication (WLAN). it is important for you to understand each lamps mean during Scania VCI running.So here car-auto-repair.com show details of VCI 3 lamps meaning.

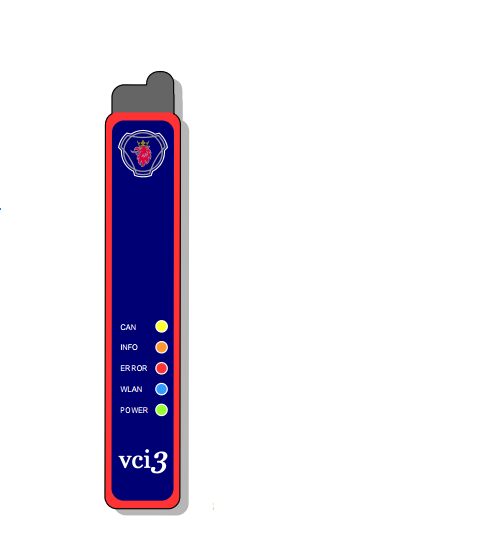

Scania-VCI3-Lamps

Related Contents:

2024.03 Scania SDP3 V2.59.2 V2.40 Diagnostic Software Free Download

2023 2018 Scania Multi EPC Parts Catalogue Free Download

How to Setup WIFI for Scania VCI-3 VCI3 V2.21





The following is a description of the different lamps in the VC13 unit.

CAN(yellow)
When the lamp is on, this indicates that there is activity on the CAN bus.

Info(orange)
The lamp flashes rapidly when general information is sent between the computer and VCI3.

Error (red)

The lamp is on when there is a communication error in VC13,for example in the firmware or hardware.

WLAN (blue)
The lamp is on or flashes when VCI3 is connected to a local network via wireless connection in one of the following ways:

The lamp flashes slowly and steadily when VC13 is connected to a computer via a wireless network with good signal strength. The lamp is constantly on when VCI3 does not have contact with the computer but is connected to a wireless network.

Power (green)
The lamp is constantly on when VCI3 is supplied with power.
