Seat Leon Instrument Language Changing by DS150E

This instruction show you guide on how to use DS150E diagnostic software to do instrument language changing for Seat Leon 1.4 TSI 2009.More about Seat projects,please check it here:Seat Trouble Repair.



Procedures:

Connect DS150E interface to Seat Leon OBD port,then run DS150E software.

Select “Seat”–>”Leon II”–>”2009 (VIN 10=9)”–>”Instrument”–>”Instrument”–>”Diagnose”

Then click “OBD” button

Seat-Leon-Instrument-Language-Changing-by-DS150E-1

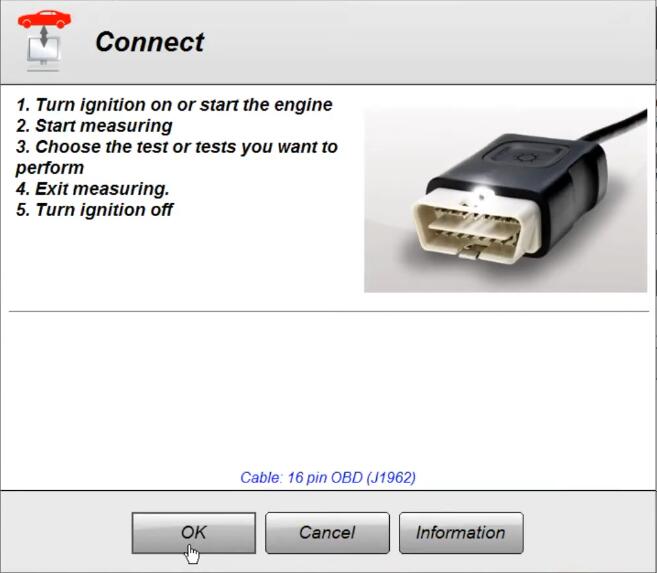

It show you with some condition,make sure you have done,then click “OK”

Seat-Leon-Instrument-Language-Changing-by-DS150E-2

Now click “Adjust” button at left side menu

Seat-Leon-Instrument-Language-Changing-by-DS150E-3

Select “Language Change”

Seat-Leon-Instrument-Language-Changing-by-DS150E-4

This function is used to change language in the instrument.

The language can only be adapted on instrument that supports the function

Test conditions:

Ignition on,engine off

Battery voltage above 12 V

Seat-Leon-Instrument-Language-Changing-by-DS150E-5 Seat-Leon-Instrument-Language-Changing-by-DS150E-6



Click “OK” button at right side

And it will ask you to engine off,ignition on.

Then click “OK”

Seat-Leon-Instrument-Language-Changing-by-DS150E-7

Actual value:English

Would you like to change?

Click “OK”

Seat-Leon-Instrument-Language-Changing-by-DS150E-8

Now here select the language you want,then click “OK”

Seat-Leon-Instrument-Language-Changing-by-DS150E-9

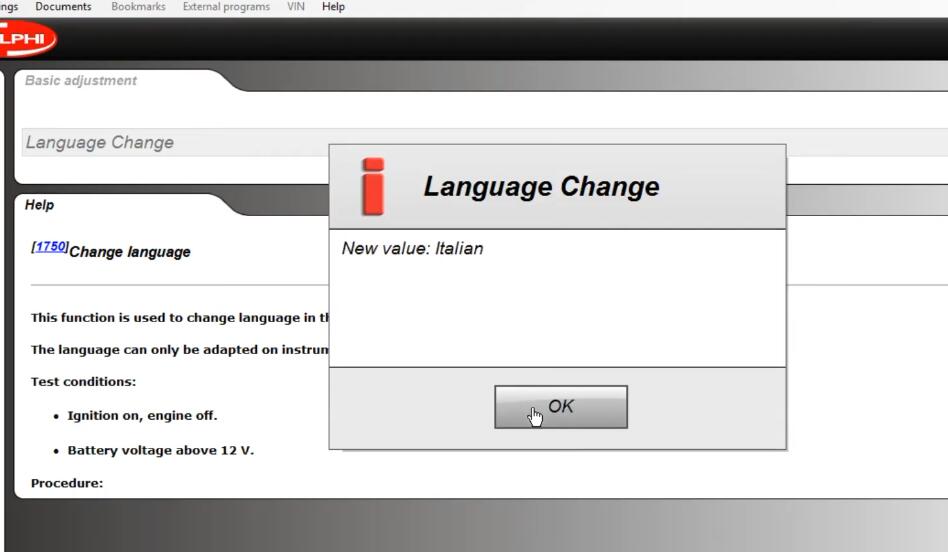

New value:Italian

Click ”OK”

Seat-Leon-Instrument-Language-Changing-by-DS150E-10

DS150E change language for Seat Leon done!

Seat-Leon-Instrument-Language-Changing-by-DS150E-11
