NOx Sensor Initialization with G-scan for Mercedes Benz Sprinter

Here’s an article of NOx Sensor Initialization on 2016 Benz Sprinter using G-scan. You need to perform this special function after replacing either upstream or downstream NOx sensor.

If you want to know more about G-Scan function, please refer to G-Scan test cases.

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-1

Procedures:

Connect G-Scan tool to Benz Sprinter, then select “Diagnosis”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-2

Select “MERCEDES BENZ” –> “AUTOMATIC SELECTION”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-3

Hit “OK”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-4

Select “Supercharge mode system search” then hit “OK”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-5

Waiting for scanning then search for “ME/CDI/CNG-Engine control unit”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-6

Select “Special Function”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-7

Scroll down and search for “Initialization after replacement of NOx sensor”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-8

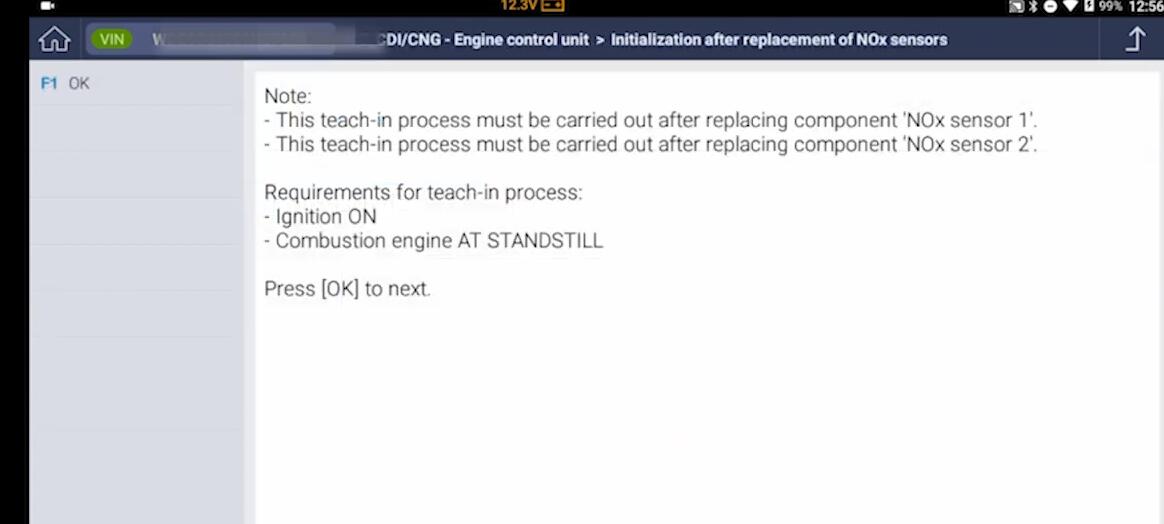

This function is required after replacing NOx sensor 1 or 2, Satisfy the precondition and hit “OK”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-9

These values are from upstream and downstream NOx sensor, please refer to the service manual regarding specification values. Hit “OK”

NOx-Sensor-Initialization-with-G-scan-for-Mercedes-Benz-Sprinter-10

Funtction is completed.
