How to Reprogram/Upgrade Toyota Corolla ECU/PCM by Techstream

This instruction show you guide on how to use Techstream to do ECM or PCM reprogramming for Toyota Corolla.



Preparations:

Latest Toyota TIS Techstream V15.10.029 Software Free Download



Procedures:

Connect Techstream interface to vehicle obd port,then run software to click “Connect to Vehicle”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-1

Vehicle identification and select the immobilizer system according to your key

Click “Next”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-2

Click “Health Check”

Check “Perform Health Check on All ECUs….”

Then click “Next”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-3

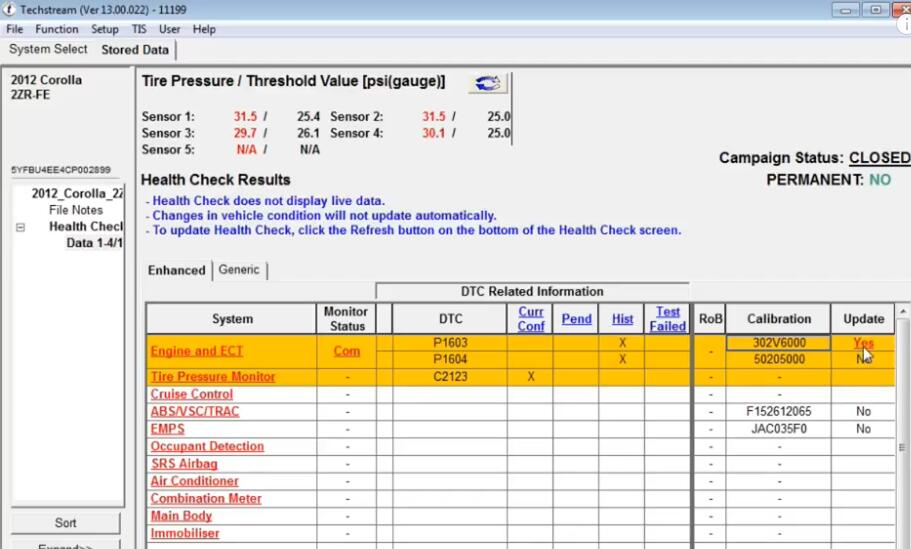

Now here show you all DTCs on each system,click “Yes” to perform update

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-4

It will take you to Toyota official website,enter ID and password to login

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-5

Here in the top box as in the current calibration is listed.

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-6

But if we scroll down we can see that it gives us a list of current ECU calibration.

Click the hyperlink to check the procedures

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-7

It is a PDF guide

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-8

In the PDF to locate your vehicle information

Here it is Corolla 2012/2013,click “302V6100”to download calibration file

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-9

Open the calibration file,it will automatically bring up the calibration update wizard

Click “Next”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-10

Select your J2534 device tool,and click “Next”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-11

Downloading current calibration information from vehicle

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-12

Selected Calibration file is authorized to update this vehicle,press “Next” to continue

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-13

Now just follow the prompt message to operate

Click “Next”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-14

Prepare for reprogramming

Confirm the following conditions as pictures,then click “Start”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-15

Now please wait for flash calibration update process

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-16

Turn ignition OFF,then click “Next”

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-17

Turn ignition ON

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-18

Now it will read current calibration information from vehicle again

Reprogramming successfully

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-19

You can go back to Techstream to perform “Health Check” again to check ECM/PCM status.

How-to-ReprogramUpgrade-Toyota-ECUPCM-by-Techstream-20
