Toyota Prius 2010-2011 Brake Pedal Abnormal Noise Repair Guide

Some 2010 Prius and early produced 2011 Prius vehicles may exhibit an abnormal noise when the brake pedal is released. The noise is typically heard when the vehicle is stopped. The ABS Actuator Skid Control Electronic Control Unit (ECU) calibration software has been revised to eliminate this noise.So here is a illustration on how to repair Toyota Prius 2010-2011 abnormal noise when brake pedal released.



Repair Procedures:

1.Confirm the abnormal (squawk/honk) noise when releasing the brake pedal.

2.Connect the GR8 Battery Diagnostic Station to the vehicle and turn it ON, then select Power Supply Mode.

Note:

The GR8 Battery Diagnostic Station MUST be used in Power Supply Mode to maintain battery voltage at 13.5 volts while flash reprogramming the vehicle.

If the GR8 Battery Diagnostic Station is unavailable, the PSC Power Supply Charger /Maintainer (MTRPSC550SKT) may be used.



3.Verify the vehicle’s applicability for recalibration.

A) Connect Techstream and establish a vehicle connection.

B) Click the Toyoa Techstream TIS Health Check button on the System Select tab

Toyota Prius 2010-2011 Brake Pedal Abnormal Noise Repair Guide (1)

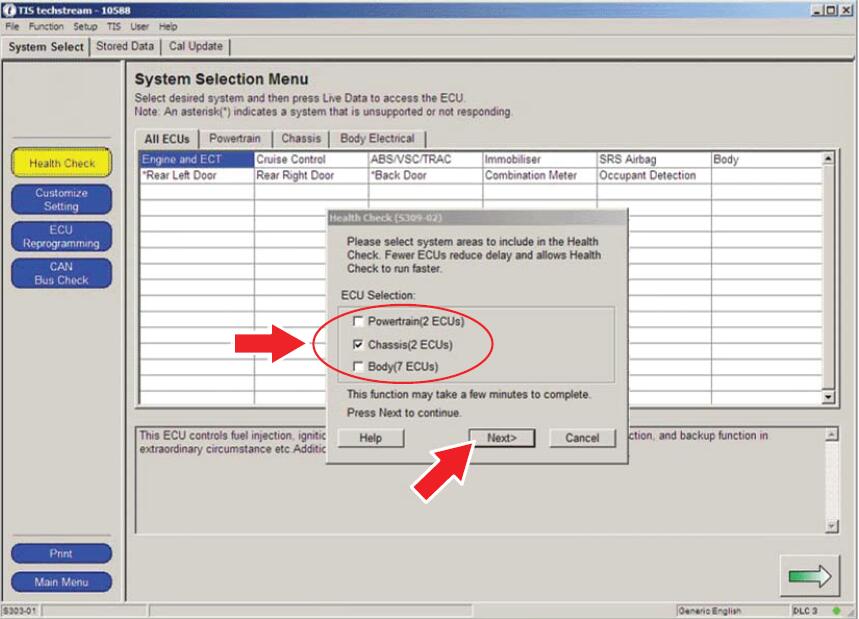

C) Choose Chassis ECU group in the Health Check dialog box.

Toyota Prius 2010-2011 Brake Pedal Abnormal Noise Repair Guide (2)

D) Click Next.

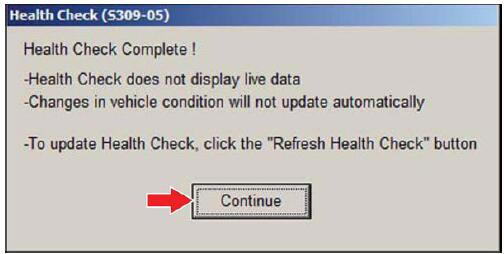

E) Click Continue to view Health Check results.

Toyota Prius 2010-2011 Brake Pedal Abnormal Noise Repair Guide (3)

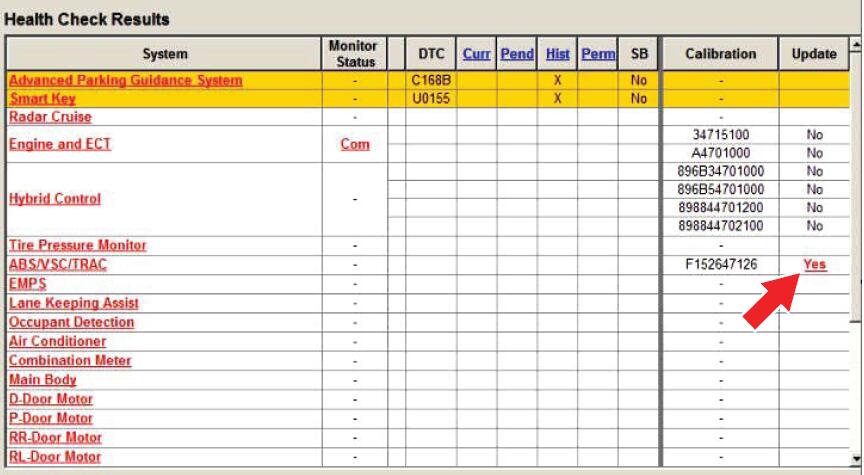

F) Available calibration updates are indicated by a Yes link in the Calibration Update column.STOP before clicking the Yes link.

Toyota Prius 2010-2011 Brake Pedal Abnormal Noise Repair Guide (4)



4.Flash reprogram the ABS Actuator Skid Control Computer.

A) Place the car in the “IG-ON” mode (push the Power button twice when the car is OFF –DO NOT depress the brake pedal).

B) Reflash the ABS Actuator Skid Control Computer with the newly designed software (New Calibration ID), following the procedures outlined in TSB No. T-SB-0064-10, “Techstream ECU Flash Reprogramming Procedure”. Please refer to the Calibration Information table in this TSB for the NEW Calibration ID.

C) After completing the ABS Actuator Skid Control Computer reflash, disconnect the GR8 Battery Diagnostic Station or PSC Power Supply Charger / Maintainer (MTRPSC550SKT).



5.Using Techstream, check for Diagnostic Trouble Codes (DTCs).

NOTE:If any Pending, Current, and/or History DTCs are set, troubleshoot according to the Repair Manual.



6.Depress the brake pedal while vehicle is stopped to confirm the abnormal noise has been eliminated.
