How to Remove the Front Bumper on Mercedes W212(2009-2013)

This instruction will show you guide on how to remove the front bumper on Mercedes W212 2009-2013.

Here is similar topic about bumper removing for further reference:

How to Remove & Replace Car Rear Bumper by Yourself

Procedures:

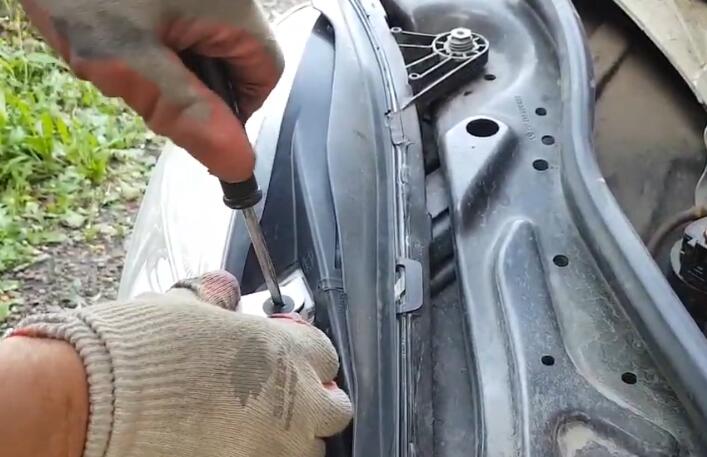

Unlock the two clips

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-1

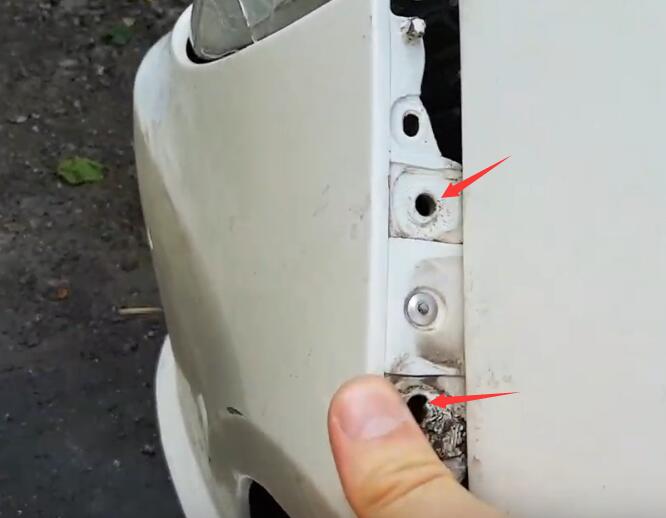

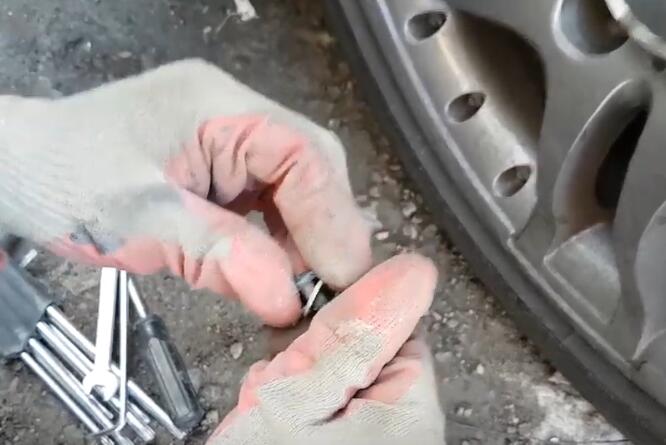

Remove the two bolts with the sprocket key

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-2

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-3

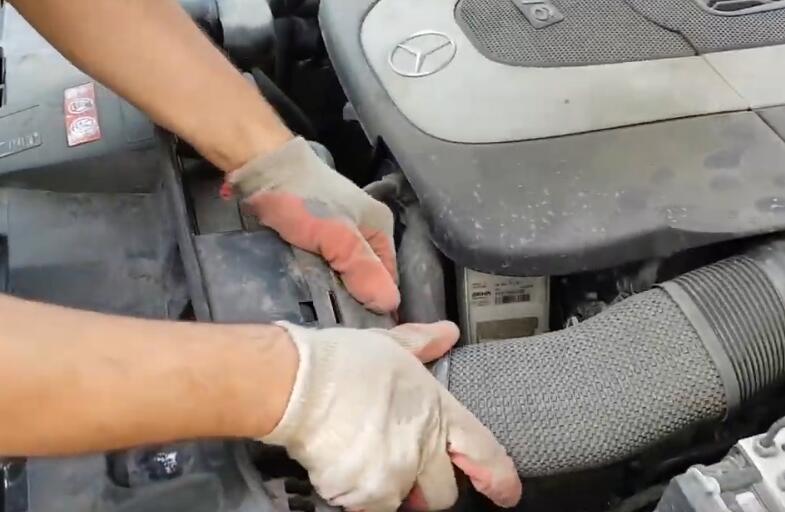

Disconnect two hoses

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-4

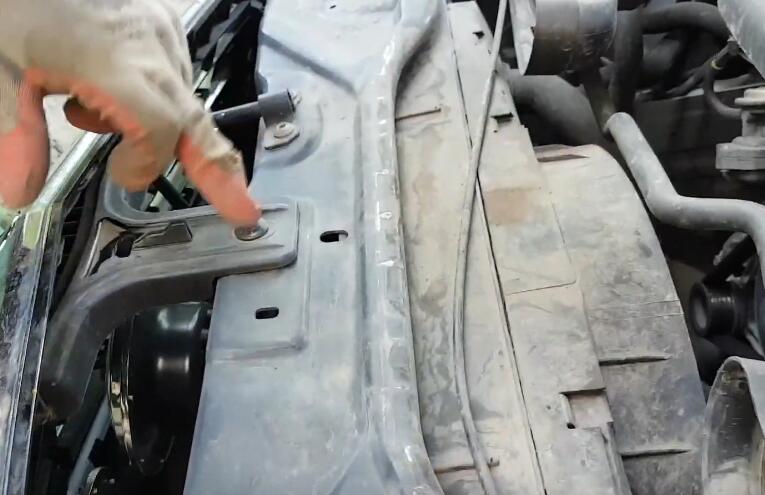

Unscrew the bolt in the middle

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-5

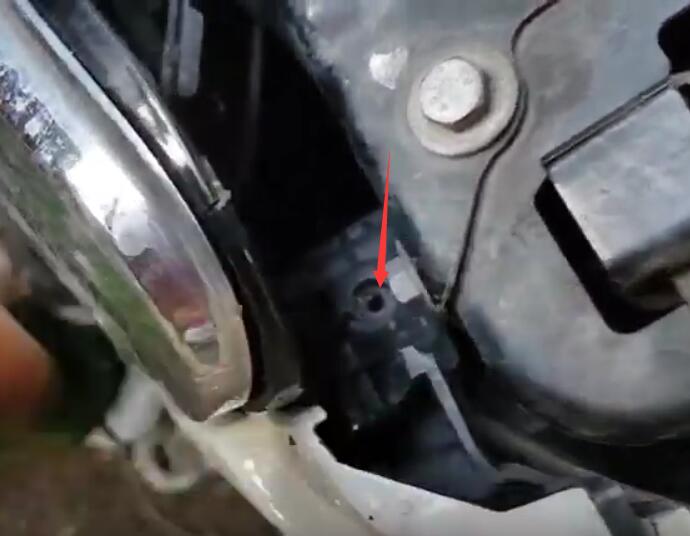

There are also two bolts on the left and right side, remove these bolts

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-6

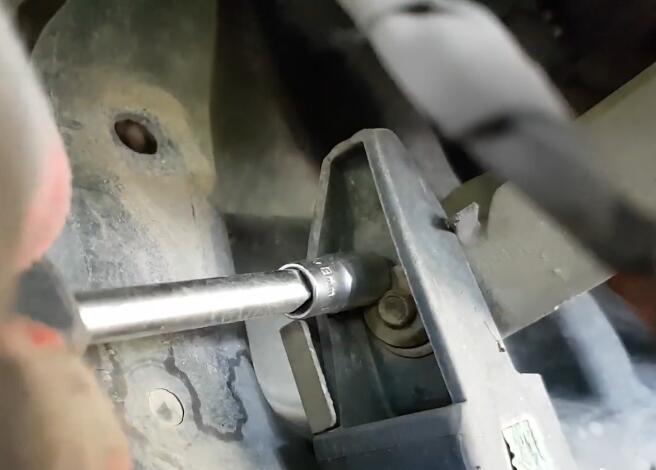

Pull the bumper slightly forward and remove the two bolts from below on both sides

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-7

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-8

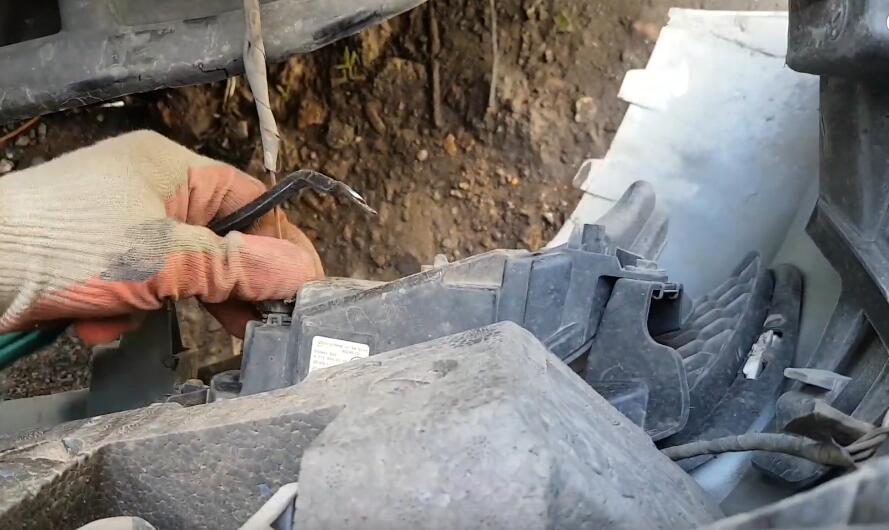

Disconnect the two fog lamp connectors

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-9

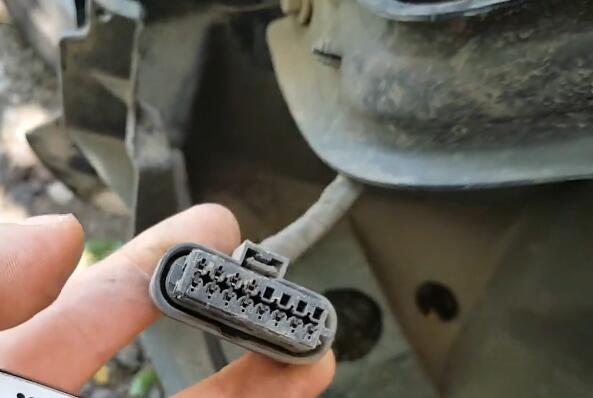

Also remove the parking sensors connector

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-10

Removing is finished

How-to-Remove-the-Front-Bumper-on-Mercedes-W2122009-2013-11

More cases about Benz W212, please refer to BENZ E-CLASS W212.
