What is Bobcat Service Analyzer?

Bobcat Service Analyzer is Bobcat equipment Diagnostic and Programming software.It allows mechanic use it to communicate with the Electronic Control Modules (ECMs), existing and potential problems to be diagnosed.



To maintain that level of performance, regular planned maintenance is essential. Routine service at regular intervals is an integral part of keeping Bobcat products operating at peak efficiency.

Bobcat-service-analyzer-90.00-1

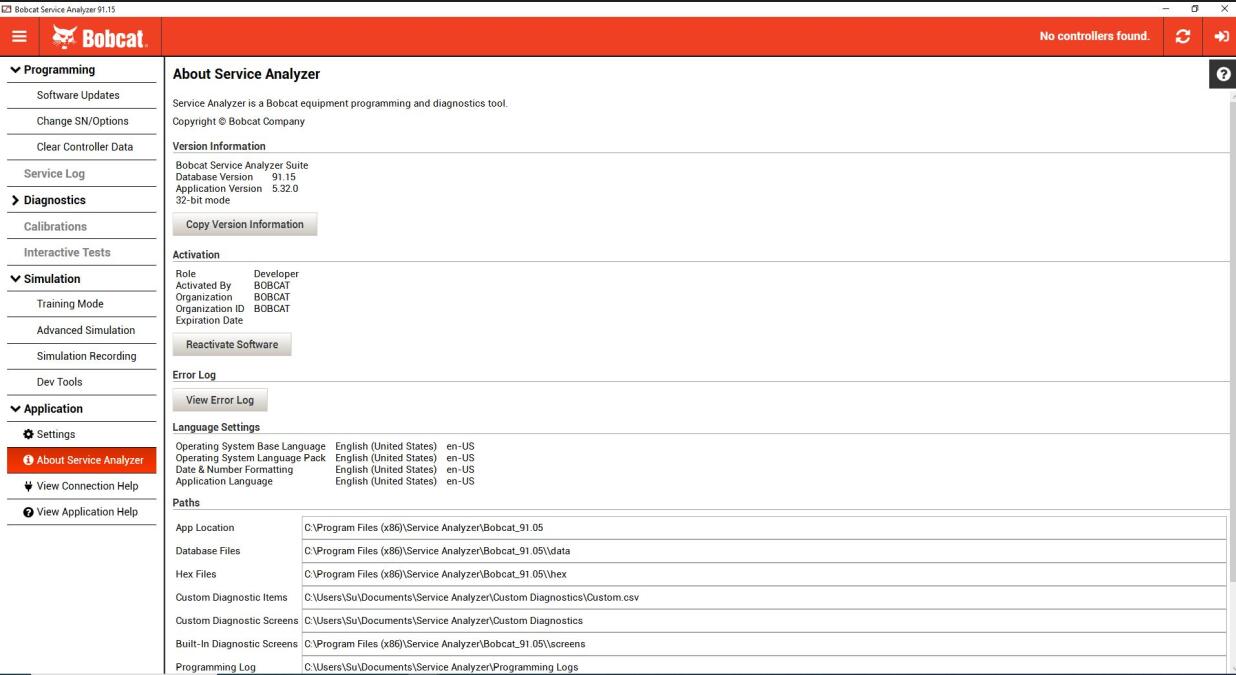

Bobcat Service Analyzer contains a tool for programming and diagnosing the Bobcat technique. Diagnostic tools Bobcat helps you find out whether there is a problem with our equipment and solve it in time with the diagnostic tool to avoid potential danger. This software will allow you to familiarize yourself with the various technical information and functions of this program, with which you can correctly diagnose your equipment and prevent premature breakdowns.



Bobcat Service Analyzer Functions:

Service Analyzer – allows communicate with the Electronic Control Modules (ECMs), existing and potential problems to be diagnosed. Connect, monitor and diagnose Loaders, Excavators, Utility Work Machines, VersaHandlers.

  • Monitor – allows the technician to view certain vital machine sensor values in a digital and bar graph form. The technician is also able to select sensor values to be displayed in a large digital format for easier viewing. The bar graphs change colors depending on current sensor state.
  • Warnings – allows the technician to view Stored Service Codes history, the number of total machine Warning and Shutdowns that have occurred, and adjusting of the Maintenance Clock settings.
  • Diagnostics – allows the ability to monitor display panel operation, drive and workgroup functions, attachment controls and the Radio Remote Control transmitter operation and re-syncing to the receiver. Test lights, controls, panels, buttons, indicators.
  • Install – allows updating of dealer information and adding new kits to the machine that are connected to a controller.
  • Program / Update – allows updating software to select controllers. It also allows entry of machine’s serial number, hours (new controllers only) and enabling / disabling installed Options and Kits.



Bobcat Service Analyzer Support Languages:

Czech, German, English, Spanish, French, Italian, Korean, Portuguese, Base, Russian, Simplified Chinese.



Bobcat Service Analyzer Support OS:

Window 7, Window 10, 32 & 64 bit (Tested on window 10 pro-1607 64bit)



Bobcat Service Analyzer Update History Logs:

Service Analyzer V89.02 – 8 Mar 2021

  1. Eliminate intermittent H3948 Multiple Joystickfault that can occur during cold cranking on
    M-Series loaders.
  2. New M-Series Loader Auxiliary Software (V5.03)
    a. Updated Fuel Lift Pump Control for Bobcat V1Engines
    – T770H***B: AT6330000+
    – T740H***A: B3CA21000+
    – S770H***B: AT5A17000+
    – T870H***C: B47C18000+
    – S740H***A: B3BT19000+
    – S850H***C: B47715000+
    – T770H**EB: B3BW16000+
    – S770H**EB: B3BV14000+
    – T870H**EC: B47L14000+
    – S850H**EB: B3BY14000+

***********************************************

Service Analyzer V89.01 – 11 Feb 2021

  1. Update Aux2 and Aux4 flow settings and loadmoment setting for the following R-Series
    compact excavators:
    – E50ZL*ER: B4HT11001+
    – E50ZF**R: B4TC11001+
    – E55ZL*ER: B4HU11001+
    – E55ZF**R: B4TD11001+
    – E60*L*ER: B4HV11001+
  2. Adds options for High Flow, and Electric Auxand Offset to the following Compact Excavator:
    – E17ZK*CM: B4ZM11001+
  3. Adds engine diagnostic screen for CompactExcavators.
  4. New M-Series Loader Workgroup Software (V11.13)
    a. Fixes issue with intermittent W3276 fault.
  5. Adds support for new M-Series Loader Workgroupcontroller P/N 7314576.
  6. New Attachment Controller (SACD) Software (V1.3)
    a. Adds support for Super Flow attachments.
  7. Adds support for the following attachments:
    – 72SCH: S6TE00001+
    – 72SCHHF: A6TD00001+
    – 84SCH: A6TG00001+
    – 84SCHHF: A6TH00001+
    – SB26X36: B53M00001+
    – SB26X48: B53N00001+
    – SB26X56: B53P00001+
    – SB32X60: B55P00001+
    – SB32X68: B53H00001+
    – SB32X74: B53G00001+
    – SB32X80: B53J00001+
    – SB32X86: B55V00001+
    – SB36X86: B53K00001+
    – SB36X96: B53L00001+
    – FRC50: B57M00001+
    – FRC61_1SPD: B5CB00001+
    – FRC61_2SPD: B57L00001+
    – FRC72: B5CA00001+
    – SG60: 233000001+
    – SG60X: A00700001+
    – VBLADE60: 084300001+
    – VBLADE72: 083900001+
    – VBLADE84: 084000001+
    – VBLADE96: 084100001+
    – VBLADE108: 084200001+
    – BACKHOE: 074600001+
    – DOZER80: 232100001+
    – DOZER90: 231900001+
    – DOZER96: 224400001+
  8. Update for the following M-Series loadersto show “PRIME” on display when fuel system
    is priming:
    – S450H*D*C: B4RH11001+
    – T450H*D*B: B4RG11001+
    – S510H*D*B: B4RE11001+
    – S590H*D*B: B4RF11001+
    – T550H*D*A: B57T11001+
    – T595H*D*A: B57U11001+
  9. Support for S590H*D*A move from Korea regionto North America region.
    – B4TP11001 – B4TP12000: South Korea
    – B4TP12001+ : North America
  10. Support for new engine map files on thefollowing machines:
    – E88*JA*R: B4NM11001+
    – E88*L*ER: B4NL11001+

***********************************************
Service Analyzer V89.00 – 21 Jan 2021

  1. New R-Series Compact Excavator Standard DisplaySoftware (V1.16.4)
    a. Improved display stability.
  2. New R-Series Loader Standard DisplaySoftware (V1.16.3)
    a. Improved display stability.Service Analyzer V88.24 – 4 Dec 2020
  3. Support added for S70*K**CB (S/N: B57B11001+)
  4. Updated ECU Software
    a. Disable Low Oil Level Fault (P350F)
  5. Adjust Low Idle RPM (850RPM to 950RPM)

The above affects the following machines with Bobcat V2 engines
– R-Series Loaders: 6X/7X
– Excavators: E42/D42, E50/D50, E50Z, E55Z, E60

  1. New R-Series loader update
    a. Support added for single direction bucketpositioning.
  2. Support added for Workgroup Response.

Service Analyzer V88.23 – 3 Nov 2020

  1. New R-Series Loader Standard Display Software(V1.16.0)
    a. Improved display stability.
  2. Reduces instances where camera screen wasn’tmirroring image properly.
  3. Fixed issue where vitals would overlap withicon.
  4. Renamed “Workgroup Settings” to “Lift and TiltCompensation”
  5. Fixed issue where three point seatbelt icon wouldremain active after two speed was deactivated.
  6. New R-Series Compact Excavator Standard DisplaySoftware (V1.16.1)
    a. Improved display stability.
  7. Reduces instances where camera screen wasn’tmirroring image properly.
  8. Fixed issue where vitals would overlap withicon.
  9. Fixed issue where machine lockout and Quick Startwere not allowed to be changed while engine wasrunning.

Service Analyzer V88.14 – 17 July 2020

  1. New Small Articulated Loader (SAL) maincontroller software (V1.05)
    a. Support for service clock and serviceclock log.
  2. Adjustment to the sensor supply out ofrange faults.
  3. Updaed hydraulic oil temperature warning andshutdown setpoints (High 195°F, ExtremelyHigh 210°F).
  4. Auxiliary pot out of neutral fault will clear onnext attempt to actvate auxiliary if pot is withinthe neutral range.
  5. Extend and Retract out of neutral fault will clearon the next attempt to activate extend or retract ifpot is within the neutral range.
  6. Arm bar faults require a key cycle to clear.
  7. Support for software version log.
  8. Support for engine hour meter rollover. Hour meterwill roll over to 0 when 9999.9 is reached.
  9. Updates to service analyzer diagnostic screensand fault code descriptions.
  10. Fixed issue where some ECU map files were not properlylinked causing the following error to appear onService Analyzer No application file available for Engine Control Unit (ECU)

Service Analyzer V88.11 – 2 July 2020

  1. Increases coil current for Soil AsphaltSpreader.
  2. Corrected depth check errors for thefollowing excavator models:
    D42*J**R: B4YF00001+
    E42*J**R: B4GM00001+
  3. New AWS Loader Drive+ software (V12.3)
    a. Support for new steering solenoids
  4. Updated Engine (ECU) Software forDL01, DL02, DL03 Bobcat Engines
    a. Fuel Injector valve cleaning logicadded to ECU map files for original
    piston and pre-TMAP sensor equipped original Bobcat Engines.
  5. Updated the following Bobcat Engine,V2 ECU map files:
    a. Fixed issue with EGR / TVA H-Bridgeopen load fault codes not clearing
    after repair.
    – Loader
    DM02_LEL00_A06_V721
    DM02_LEL01_A02_V721
    DM02_LEL02_A03_V721
    DM02_LEL06_A05_V721
    DM02_LEL07_A02_V721
    DM02_LEL08_A02_V721
    DM02_MFL01_A03_V721
    DM02_MFL02_A04_V721
    DM02_MFL03_A02_V721
    DM02_MFL04_A02_V721
    DM02_MFL08_A04_V721

– Excavator
DM01_LEE00_A05_V721_ECU
DM01_LEE01_A05_V721_ECU
DM02_LEE01_A02_V721_ECU

– Telehandler
DM03_LEV00_A02_V721_ECU
DM03_MFV01_A02_V721_ECU



  1. Adjusted starter engine speed cut offlevel from 1000 RPM to 850 RPM on thefollowing machines:
    – S450L*DEA: B4J711001+
    – S450H*D*C: B4RH11001+
    – T450L*DEA: B4J611001+
    – T450H*D*B: B4RG11001+
    – S510L*DEA: B4JB11001+
    – S510H*D*B: B4RE11001+
    – S530L*DEA: B4KA11001+
    – S550L*DEA: B4ZD11001+
    – S590L*DEA: B4ZE11001+
    – S590H*D*B: B4RF11001+
    – T590L*DEA: B4KV11001+
    – T550H*D*A: B57T11001+
    – T595H*D*A: B57U11001+
  2. New Gauge panel software (V3.05)
    a. Support for Telehandler Bobcat Engine V2
  3. New R-Series Loader Hub Software (V1.13)
    a. Support for added for Bobcat Engine V2with DPF.
  4. New R-Series Touch Display Software(Application: V2.5.0; Content: V1.5.0)
    a. Support for added for Bobcat Engine V2with DPF.
  5. Fixed issue where fuel usage statisticsis showing incorrect data.
  6. New R-Series Standard Display Software(Application V1.12.0)
    a. Support for added for Bobcat Engine V2with DPF.

Service Analyzer V87.07 – 22 May 2019

  1. New TLS Gateway Software (V6.40), TLS DriveSoftware (V6.40) and TLS Workgroup Software
    (V6.40) to support new controllers with partnumbers 7273600, 7273601, and 7273602.
  2. New Manbasket Software (V1.40) and GACD2Software (V1.20) to support new controller
    with part number 7273603.
  3. Support added for the following machines:
    – D35*J**R: B4WV11001+
    – D35ZK*ER: B4CS11001+
    – D42*J**M: B4WW11001+
    – D42*J**R: B4YF11001+
    – D50*J**M: B4WY11001+
    – D50*J**R: B4YG11001+
  4. Support added for 7″ Display on thefollowing machines:
    – E85*J**R: B48413701+

***********************************************
Service Analyzer V87.06 – 14 May 2019

  1. New GACD Software (V8.9)
    a. Support added for the Box Blade HD
    – B4T900101+
  2. New Loader Deluxe Software (V7.5)
    a. Support added for the Box Blade HD
  3. New MX Primary (V4.5) and Secondary (V2.3) software
    a. Initial support for 7″ display
  4. Support for the following machines:
    – D17ZKA*M: B3Y911001+
    – D27ZK*ER: B4BB11001+
    – D35ZK*ER: B4CS11001+

***************************************
Service Analyzer V87.05 – 30 April 2019

  1. Support for Bob-Dock added on thefollowing machines:
    – S740H***A: B3BT11805
    – T740H***A: B3CA11805
    – S770H***B: AT5A11720
    – T770H***B: AT6312720
    – A770H***B: AT5J11380
    – T750H***B: AT5T11743
    – T630H***B: AJDT13778
    – T650H***B: ALJG19317
    – S630H***B: AHGL12984
    – S650H***B: ALJ818497
  2. Support added for the followingmachines:
    – E26*K**R: B4S911001
  3. New Loader M4 Drive Software
    (V14.11)
    a. Decrease hydrostatic pump gainfor the following models:
    – T630****A – A7PU16275+
    – T630H***B – AJDT16750+
    – T650****A – A3P021700+
    – T650***EA – A3P115475+
    – T650H***B – ALJG29650+
    – T650H**EB – B2KZ13900+

***************************************
Service Analyzer V87.04 – 5 April 2019

  1. Support for Bob-Dock added on thefollowing machine:
    – T650H***B: ALJG28632
  2. Boom down movement control rampsimproved on following Telehandlermachines:
    – TL35.70: ANL714000+, ANMG14000+,AVM114000+, AVM614000+,B3ZS11001+, B3ZT11001+
    – TH.7035: AR3914000+, AR3D14000+,B3C414000+, B3C514000+,B3ZZ11001+, B41111001+
    – V723:B4C311001+
  3. Corrected boom movement limitationsin case of some LLM faults on following
    Telehandler models:
    TL30.60, TL26.60, TH.6030, TL30.70, TH.7030,
    T35.105, T35.105L, T36.120SL, T35.130S,
    T35.130SLP, T35.140S, T41.140SLP, T40.180SLP

***************************************
Service Analyzer V87.03 – 27 March 2019

  1. Support added for the followingmachines:
    – S70*K***B: B4TY11001+
    – S70*K**EB: B4UC11001+
    – S590H*D*A: B4TP11001+
    – E26*K**R:  B4S911001+
  2. New Loader Gateway Software(V15.01)
    – Fixes issue with switched powersometimes remaining off on key on.

***************************************
Service Software V87.02 – 4 Mar 2019

  1. New Loader Auxiliary Software(V5.1)
    – Fixes issue with Remote ACDattachments (Chipper, Concrete Pump, etc.) when activating auxiliaries from the attachment.
  2. Support for Bob-Dock added on thefollowing machines
    – S740H***A: B3BT14668+
    – T740H***A: B3CA15491+
    – S770H***B: AT5A13544+
    – T770H***B: AT6319318+
    – S770H**EB: B3BV11888+
    – T770H**EB: B3BW13133+
    – A770H***B: AT5J12503+
    – A770H**EB: B3BU11707+
    – T630H***B: AJDT16592+
    – S630H***B: AHGL14606+
    – S650H***B: ALJ825891+
  3. Include boom float option onfollowing TLS machines:
    – TL26.60   B3G615001+, B3G815001+,B3GA15001+, B3GC15001+,B3YF15001+, B3ZH15001+
    – TL30.60   B3G415001+, B3G715001+,B3G915001+, B3GB15001+,
    B3YD15001+, B3Z815001+
    – TL30.70   B4AY15001+, B4AZ15001+,B4B215001+, B4B315001+
    – TH.6030   B3GD15001+, B3GE15001+,B3GF15001+, B3GG15001+,B3ZL15001+, B3ZM15001+
    – TH.7030   B4DW15001+, B4DZ15001+
    – TL34.65HF B41N17001+, B41P17001+
    – TL35.70   ANL716001+, ANMG16001+,AVM116001+, AVM616001+,B3ZS17001+, B3ZT17001+
    – TL38.70HF AHT416001+, AVDV16001+,AVKJ16001+, AVKM16001+,B3ZU17001+, B3ZV17001+
    – TL43.80HF B4BT11001+, B4BU11001+,B4BY11001+, B4BZ11001+,B4P711001+
    – TH.6534   B41S17001+, B41R17001+
    – TH.7035   AR3916001+, AR3D16001+,B3C416001+, B3C516001+,B3ZZ17001+, B41117001+
    – TH.7038   AT7A16001+, AVDZ16001+,B3C616001+, B3C716001+,B41217001+, B41317001+
    – TH.8043   B4BV11001+, B4BW11001+,B4C111001+, B4C211001+,B4P811001+
  4. Update TLS Bobcat engine ECUsoftware to include 300 sec torquederate before engine shutdown in case of critical failure on following machines:
    – TL26.60   B3YG11001+, B3ZJ11001+,B3ZH11001+, B3YF11001+,
    – TL30.60   B3YE11001+, B3Z911001+,B3Z811001+, B3YD11001+,
    – TL30.70   B4B111001+, B4B211001+,B3ZK11001+, B4B311001+
    – TH.6030   B3ZL11001+, B3ZM11001+,
    – TH.7030   B4DW11001+, B4DZ11001+
    – V519      B3YH11001+,
    – TL35.70   B3ZS11001+, B3ZT11001+
    – TL34.65HF B41N11001+, B41P11001+
    – TL38.70HF B3ZU11001+, B3ZV11001+,AVDV14000+, AVKJ14000+,AHT414000+, AVKM14000+
    – TL43.80HF B4BY11001+, B4BZ11001+,B4P711001+, B4BT11001+,B4BU11001+
    – TH.7035   B3ZZ11001+, B41111001+
    – TH.6534   B41R11001+, B41S11001+
    – TH.7038   B41211001+, B41311001+,AVDZ14000+, AT7A14000+,B3C614000+, B3C714000+
    – TH.8043   B4C111001+, B4C211001+,B4P811001+, B4BV11001+,B4BW11001+
    – V723      B4C311001+
    – T35.105   B41511001+, B41411001+
    – T35.105L  B41711001+, B41611001+
    – T36.120SL B41911001+, B41811001+
    – T35.130S  B41B11001+, B41A11001+
    – T35.130SLP B41D11001+, B41C11001+
    – T35.140S  B41G11001+, B41F11001+
    – T41.140SLP B41K11001+, B41H11001+
    – T40.180SLP B41M11001+, B41L11001+
  5. Service Analyzer V5.17 Release
    – Added warning when TLS engineupdates require maincontroller updates.

– New engine software included:

300 sec torque derate in case of critical error code then engine shutdown instead of immediate
engine shutdown.

– Fixed bug that caused portions of the English postscript of translated logs to not be in English.

– Fixed data from diagnostic screens being captured when closing the file dialog, instead of when the “Save Data” button in the gear menu was pressed.

– Improved handling of invalid default service log directory settings.

***************************************
Service Software V87.01 – 19 Feb 2019

  1. Reverting Loader Auxiliary Softwarefrom V5.0 to V4.03.  Issue foundthat prevents Remote ACD attachments (Chipper, Concrete Pump, etc.) from activating auxiliaries from the attachment.

***************************************
Service Software V87.00 – 11 Feb 2019

  1. New Toolcat Drive Software (V4.10)
    a. Improved auxiliary control whenbraking.
  2. Improved throttle faultdetection.
  3. Improved swash plate faultdetection.
  4. New Loader M4 Drive Software(V14.10)
    a. Decrease hydrostatic pump gainfor the following models:
    – T740H***A – B3CA16100+
    – T770****A – A3P816575+
    – T770***EA – A3P913375+
    – T770H***B – AT6321000+
    – T770H**EB – B3BW13300+
    – T870E***B – B47H11300+
    – T870H***C – B47C13700+
    – T870H**EC – B47L11500+
  5. Telehandler Software Update (WorkgroupV5.6; Drive V6.1; and Gateway V5.2)
    a. Creation of following serial numbersfor 4.3 T machines:
    – B4BT11001+
    – B4BU11001+
    – B4BV11001+
    – B4BW11001+
    – B4BY11001+
    – B4BZ11001+
    – B4P711001+
    – B4C111001+
    – B4C211001+
    – B4P811001+
  6. Activated automatic suspensionfunction on following serial numbers:

PF1:
B3G415001+, B3G615001+, B3G715001+
B3G815001+, B3G915001+, B3GA15001+
B3GB15001+, B3GC15001+, B3GD15001+
B3GE15001+, B3GF15001+, B3GG15001+
B3Z815001+, B3ZH15001+, B3YD15001+
B3YF15001+, B3ZL15001+, B3ZM15001+
B4AY15001+, B4AZ15001+, B4B215001+,
B4B315001+, B4DW15001+, B4DZ15001+

PF2:
B41N17001+, B41P17001+, B41R17001+,
B41S17001+, ANL716001+, ANMG16001+,
AVM116001+, AVM616001+, AR3916001+,
AR3D16001+, B3C416001+, B3C516001+,
B3ZS17001+, B3ZT17001+, B3ZZ17001+,
B41117001+, B4C317001+, AVDV16001+,
AHT416001+, AVKJ16001+, AVKM16001+,
AVDZ16001+, AT7A16001+, B3C616001+,
B3C716001+, B3ZU17001+, B3ZV17001+,
B41217001+, B41317001+, B4BT11001+,
B4BU11001+, B4BV11001+, B4BW11001+,
B4BY11001+, B4BZ11001+, B4P711001+,
B4C111001+, B4C211001+, B4P811001+

  1. Improved interrupt power monitoring onWorkgroup and Auxiliary controllers



Bobcat Service Analyzer Free Download:

Bobcat Service Analyzer v90.00 Installation Service (Paid Version 100% Work)



Bobcat Service Analyzer v89.06 Free Download:

https://mega.nz/file/ZfgSUb6b#l7Yoh_P08ZqY-Yt2SOkJRTHylAYpJthwtcaIFqRT9oo

(Visited 668 times, 2 visits today)
