AVDI Diagnostics All Keys Lost Programming for Ford S-Max 2015+

In this instruction,car-auto-repair.com will show you guide on how to use AVDI diagnostics to do all keys lost programming for Ford S-Max 2015+.

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-1



Procedures:

Connect AVDI programmer to Ford S-Max OBD port

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-2

Starting the Abrites Diagnostics for Ford software

Then select “Special Function”–>”Key Learning”

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-3

Select “Ford Europe”–>”2015 S-Max”–>”2.0 TDCI”

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-4

Select “Erase All Smart Keys”,then click “Execute”

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-5

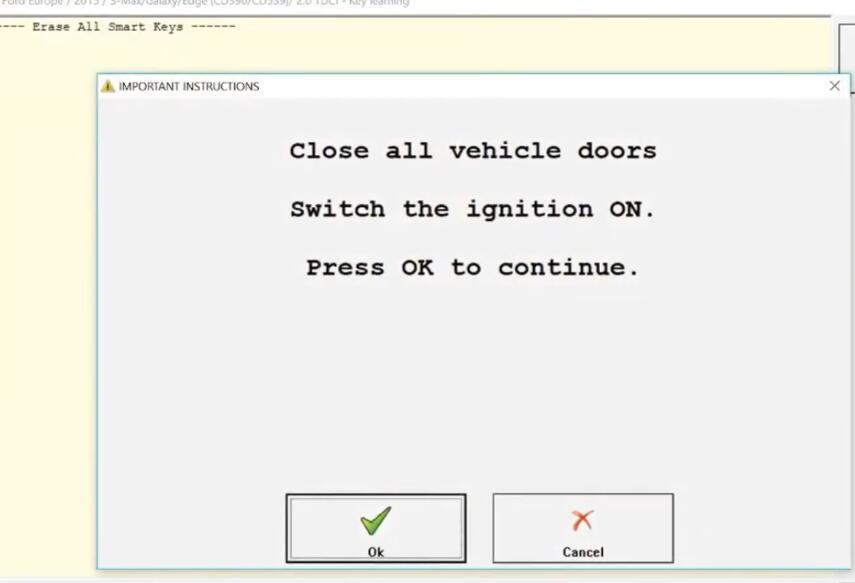

Close all vehicle doors

Switch the ignition ON

Press OK to continue

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-6

Close all vehicle doors

Insert the key you want to program in emergency slot.

Switch the ignition ON

Press OK to continue

Note:When erasing the keys,you could ignore the message telling you to insert the keys in the emergency slot and insert them at a later stage during the programming.

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-7

Erasing the keys will take a while…

Number of keys programmed:0

Turn ignition ON with the key you want to program or insert it in emergency slot.

Note: This is the step where you program the new keys after the old ones have been erased.

The minimum programmed keys for Ford/Mazda is two.

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-8

Put key in slot on steering column.

Slot is under rubber covering at the bottom of the cup holder.

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-9 AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-10



One key is now programmed,insert the second key into the slot

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-11

Just repeat the step to program second key,then click “No” exit programming step.

Switch the ignition OFF

Remove the key from ignition switch

Press OK to continue

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-12

Operation Successfully

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-S-Max-2015-13

Now test you new keys.
