Autel MK808 All Keys Lost Programming for 2004-2014 Honda Acura TL

In this instruction,car-auto-repair.com will show you guide on how to use Autel MK808 to do all keys lost programming for Honda Acura TL2004=2014. Before you program new keys, it’s better to deleting all keys from cars system. If you want to know more information of all key lost, please refer to AUTO ALL KEY LOST.

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-1



Procedures:

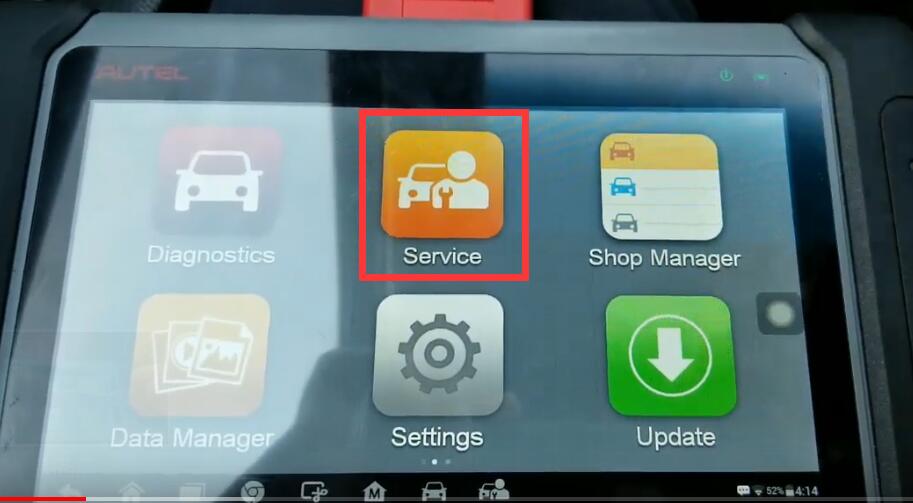

Connecting the OBD cable to the car. Running Autel MK808 and click “Service”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-2

Click “Immo keys”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-3

Select “Acura”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-4

Switching IGN on with the blank key to give the car power

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-5

Flashing green key light means car won’t start

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-6

Click “System Selection”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-7

Select “USA”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-8

Select “Hot Function”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-9

Click “OK”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-10

Click “OK”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-11

Click “Special functions”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-12

Select “Add and delete keys”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-14

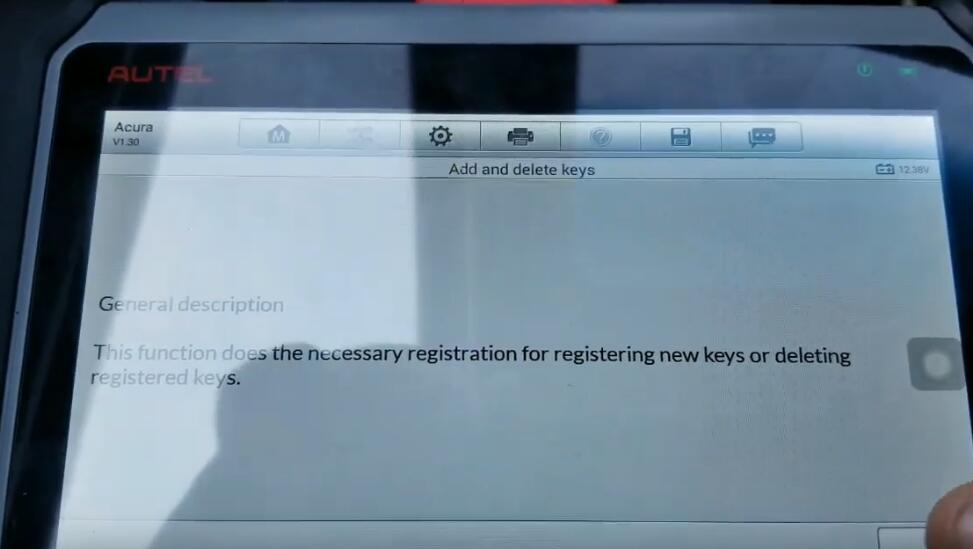

General description: This function does the necessary registration for registering new keys or deleting registered keys. Click “OK”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-14

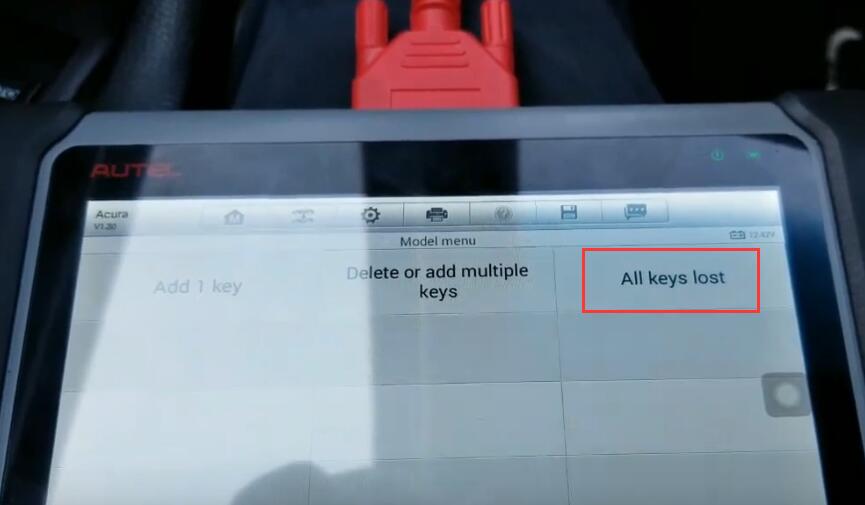

Select “All keys lost”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-15

Imput the number of keys you want to register, then click “OK”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-16

Follow the on screen to turn the ignition switch off within few seconds

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-17

Then turn the ignition switch on

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-18

Check the green blinking key light on or off, it it’s off, click “Yes”

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-19

Turn the ignition off and on follow on screen. The registration of keys has been completed, Turn the ignition switch off.

Autel-MK808-All-Keys-Lost-Programming-for-2004-2014-Honda-Acura-TL-20

Now you can check key remotes to ensure it will start the engine.

Function is ready.
