WinKFP Expert Mode Programming Configuration

This post show how to configure WIN KFP Expert mode programming.



BMW Standard Tools 2.12 Free download (include WinKFP)

WinKFP error 211 Solutions

How to Set Up WinKFP on Win XP

BMW Coding/Flashing/Progrmming PDF+Video Guide



WinKFP Expert Mode Programming Configuration:

Delete all files in the Develop folder.

WinKFP Expert Mode Programming Configuration (1)

Select the program data folder in this case MV1746.

WinKFP Expert Mode Programming Configuration (2)

Select the MV1746.DAT file open with Notepad

WinKFP Expert Mode Programming Configuration (3)

Press Ctrl + H and search the program number. The program number here is 7592774.

WinKFP Expert Mode Programming Configuration (4)

You will then find a line of numbers.
1st Program Number
2nd Hardware Number
3rd 0pa Number
4th 0da Number

WinKFP Expert Mode Programming Configuration (5)

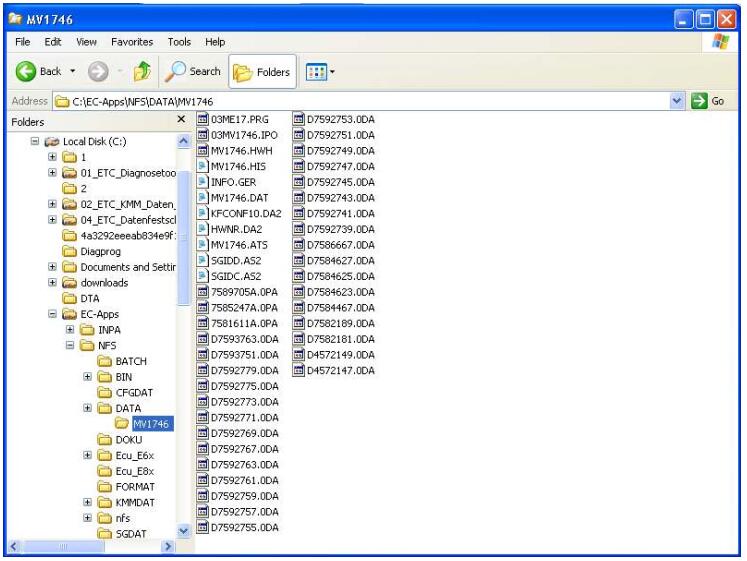

Copy the 2 files over to Develop folder. *.0pa and *.0da file

WinKFP Expert Mode Programming Configuration (6)

Copy the 2 files over to Develop folder. *.0pa and *.0da file

WinKFP Expert Mode Programming Configuration (7)

Select the Coapi.ini file

WinKFP Expert Mode Programming Configuration (8)

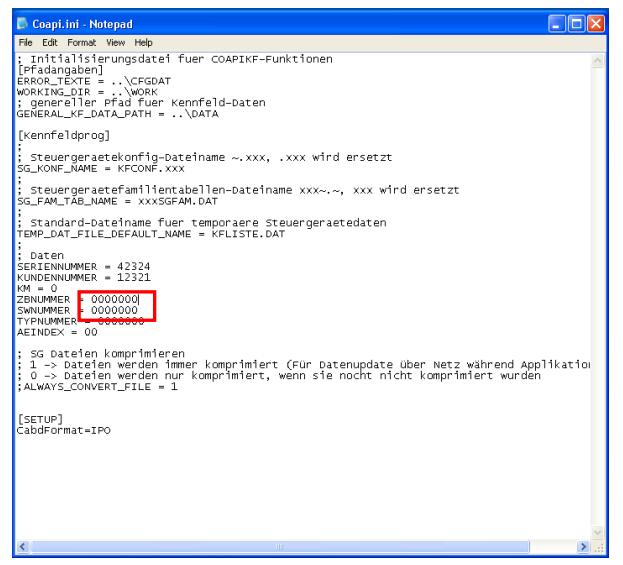

The ZBNUMBER and SWNUMBER must be changed to the program number.

WinKFP Expert Mode Programming Configuration (9)

The ZBNUMBER and SWNUMBER must be changed to the program number the save the file.

WinKFP Expert Mode Programming Configuration (10)

Select WinKfp and check the configuration.

WinKFP Expert Mode Programming Configuration (11)

Change configuration to be exactly the same as the example. Select OK when completed

WinKFP Expert Mode Programming Configuration (12)

Select Comfort Mode

WinKFP Expert Mode Programming Configuration (13)

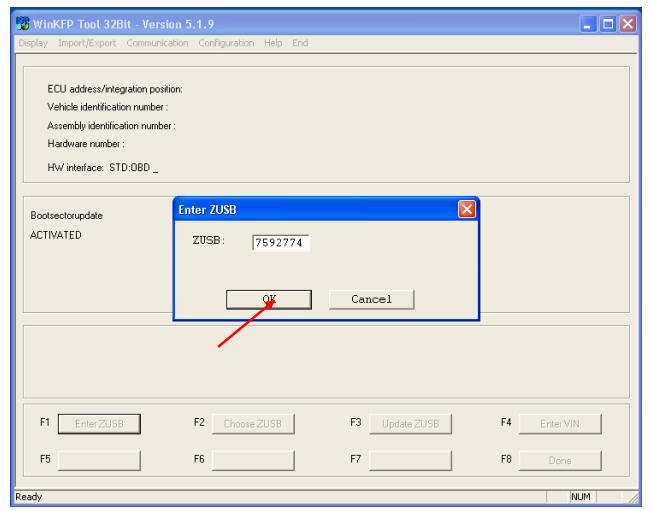

Select Enter ZUSB

WinKFP Expert Mode Programming Configuration (14)

Select OK after entering program number.

WinKFP Expert Mode Programming Configuration (15)

Select OK

WinKFP Expert Mode Programming Configuration (16)

Select Enter Vin

WinKFP Expert Mode Programming Configuration (17)

Select OK after entering the VIN.

WinKFP Expert Mode Programming Configuration (18)

Select Done

WinKFP Expert Mode Programming Configuration (19)

The ECU address, PABD and P-SGBD will appear. Exit program and restart program.

WinKFP Expert Mode Programming Configuration (20)

Select Comfort Mode

WinKFP Expert Mode Programming Configuration (21)

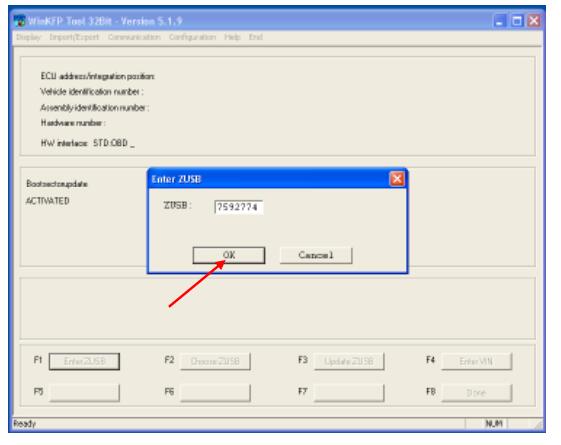

Select Enter ZUSB

WinKFP Expert Mode Programming Configuration (22)

Select OK after entering program number.

WinKFP Expert Mode Programming Configuration (23)

Select OK

Select Done

WinKFP Expert Mode Programming Configuration 42

Select Cancel. Do not enter a VIN number.

WinKFP Expert Mode Programming Configuration (25)

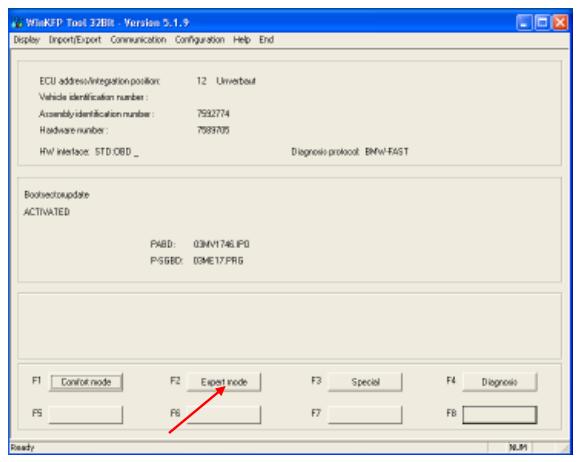

Select Expert Mode

WinKFP Expert Mode Programming Configuration (25)

Select PABD

WinKFP Expert Mode Programming Configuration (27)

Select number as found before.

WinKFP Expert Mode Programming Configuration (28)

Select P-SGBD

WinKFP Expert Mode Programming Configuration (27)

Select number as found before.

WinKFP Expert Mode Programming Configuration (30)

Select ECU Address

WinKFP Expert Mode Programming Configuration (30)

Select number as found before.

WinKFP Expert Mode Programming Configuration (32)

Select Program file

WinKFP Expert Mode Programming Configuration (33)

Select OK

WinKFP Expert Mode Programming Configuration (34)

You will see the program file number. Select Data file.

WinKFP Expert Mode Programming Configuration (35)

Select OK

WinKFP Expert Mode Programming Configuration (36)

Select OK this error can be ignored as you are in Expert Mode.

WinKFP Expert Mode Programming Configuration (37)

You will see the data file number. Select Done.

WinKFP Expert Mode Programming Configuration (38)

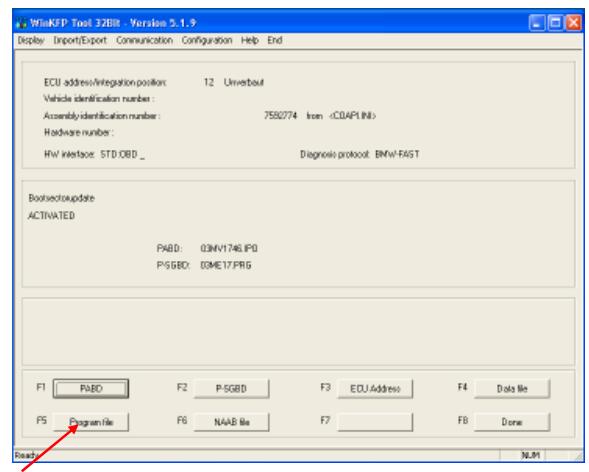

Select Prog Program

WinKFP Expert Mode Programming Configuration (39)

Now enter the VIN and press OK. Programming will start.

WinKFP Expert Mode Programming Configuration (40)

Now select Prog Data and programming will start.
After programming you can exit the program.

WinKFP Expert Mode Programming Configuration (41)
