Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012

This article show a guide on how to use Launch X431 calibrate longitudinal accelerometer for Range Rover Evoque 2012.And at first part,I will show the guide by text and pictures,and in part 2 you can check the details via video operations.



Related Topics:

Range Rover Evoque 2012 Parking Brake Pad Replacement Matching by Launch X431



Procedures:

Build connection between Launch X431 and vehicle.

Enter device menu to select “LANDROVER”

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012

Loading…

Initializing system,please wait…

Select “Automatically search”

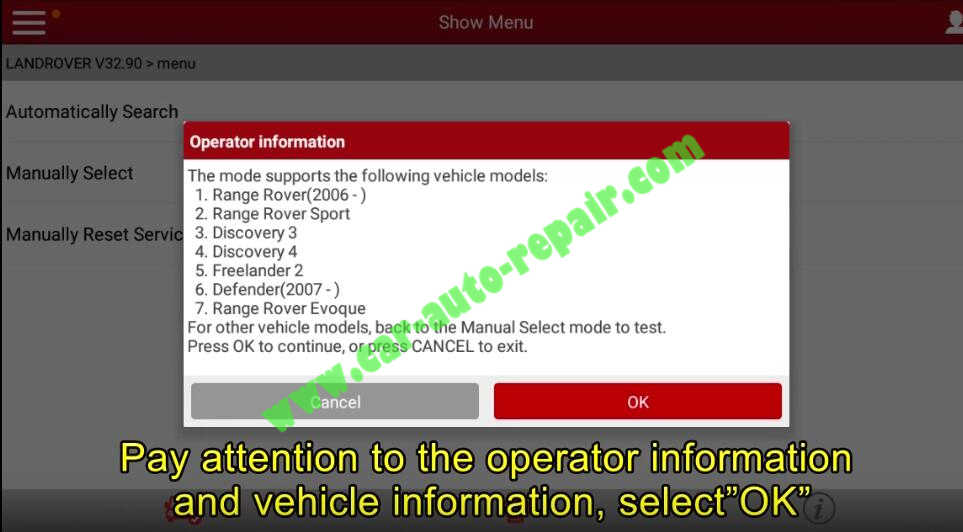

Then the Launch X431 show massage as below:

The mode supports the following vehicle models:

1.Range Rover(2006-)

2.Range Rover Sport

3.Discovery 3

4.Discovery 4

5.Freelander 2

6.Defender(2007-)

7.Range Rover Evoque

For other vehicle models,back to the manual select mode to test.

Press OK to continue,or press CANCEL to exit.

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (2)

And it show the vehicle information:

Brand:Land Rover

Model:L538

Model Name:Evoque

Engine:GTDI-2.0 PETROL

Model Year:2012

Trim:STANDARD-4wd

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (3)

Then select “System Selection”

Scroll down the bar to select “PBM(Parking Brake Module)”

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (4)

Select “Special Function”

Select “Longitudinal accelerometer calibration”

Longitudinal accelerometer sensor calibration.This application is required to be used following removal and refitting of the parking brake module.

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (5)

Then follow the software instruction to operate.

Set the ignition switch to on(position 2)

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (6)

Make sure the vehicle is placed on a level surface and that it remains stationary throughout the whole procedure.

Make sure the parking brake module is correctly secured to the vehicle and that the parking brake is applied.

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (7)

Operation completed

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (8)

Set the ignition switch to off position

Set the ignition switch to on position again

The next procedure will be to carry out a complete vehicle diagnostic trouble code clear.

Do you wish to continue?Click “Yes” to continue

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (9)

Wait about 40 seconds.

Set the ignition switch to off position

Set the ignition switch to on position

Control module procedure has completed.

Lauch X431 Calibrate Longitudinal Accelerometer for Range Rover Evoque 2012 (10)

Done!
