How to Flash Steering Column Electronic with ODIS on VW

This short instruction will show you guide on how to flash steering column electronic via ODIS on VW.



Preparation:

Newest ODIS-E Engineering 17.0.1/12.2.0/9.0.1 Free Download

08.2023 VW ODIS 23.0.5 & 7.2.1 & 5.2.7 Diagnostic Software Free Download

How to Install ODIS-Engineering 12.1.0 Diagnostic Software



Steps:

Connect ODIS to vehicle OBD port, running software ODIS.

Click “0016 Steering Column Electronics”–>”001 Identification”

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-1

Click “042 Flash”

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-2

Choose “0016 Steering Column Electronics), then click “Local flash file”

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-3

Choose the file you need, open it

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-4

Start flashing, click “Yes”

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-5

Click “OK”

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-6

Would you like to clear all control module DTC memory entries? Yes

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-7

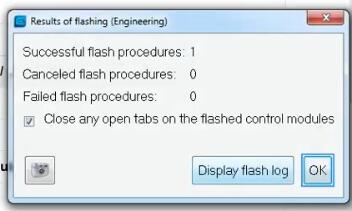

When results of flashing comes out, click “OK”

How-to-Flash-Steering-Column-Electronic-with-ODIS-on-VW-8

Function is completed.
