How to Enable Audi MMI Green Menu (Hidden Menu) by VCDs & Script

This article show a guide on how to use VCDs or Script to enable Audi MMI green menu(hidden menu)

Audi MMI Green Menu is used for several operations.For activate it you can do it with a VagCom cable VCDs or using script.

This guide is for enable green menu in 3G and 3GP but you can follow the same steps with other systems with this instructions:

MMI 2G [07-Control Head]=>[Adaptation-10]=>Channel 8=>set to 1
MMI 3G [5F-Information Electr.]=>[Adaptation-10]=>Channel 6=>set to 1
MMI 3GP [5F-Information Electr.]=>[Adaptation-10]=>Channel 6=>set to 1
RMC [5F-Information Electr.]=>[Adaptation-10]=>Channel 5=>set to 1
MIB Not available



Enable Audi MMI Green Menu by VCDs:

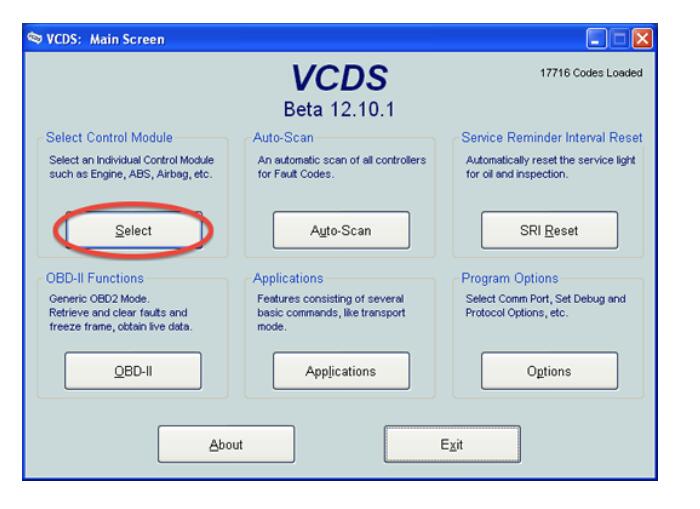

Open VCDS and inside “Select Control Module” click on “Select” button

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (1)

Select module “5F”

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (2)

Click on “Adaption-10”

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (2)

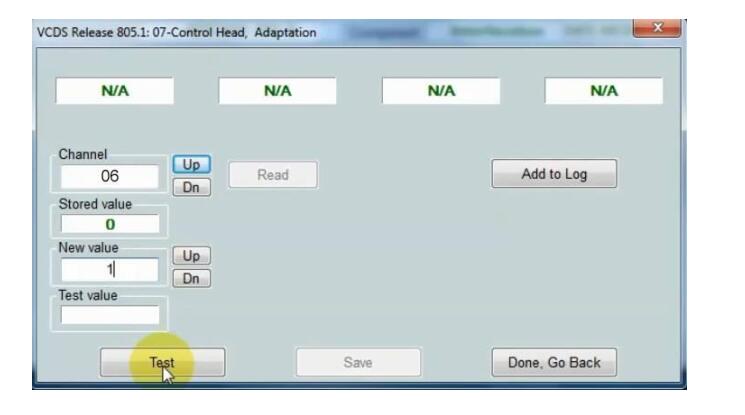

Enter “6” for the channel and press the “Read” button

Now,inside the “New Value” field set the value to “1” and click “Test” and “save”

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (4)

Note that only “Save” may be available in which case you would ignore the “Test” button Press “Done,Go Back”,close the controller and quit the software.

There no need to restart the MMI,just enter the hidden menu.

MMI 2G SETUP+CAR
MMI 3G SETUP+CAR
MMI 3GP CAR+MENU
RMC CAR+MENU
MIB Not available





Enabling Green Menu using a script

Download the”Green Menu” script

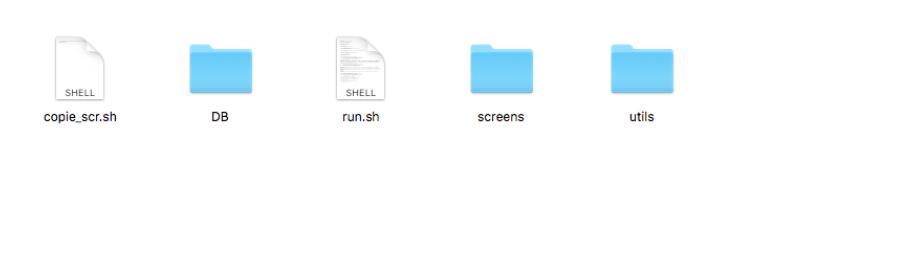

Format your SD in FAT32 and copy the script’s files in the SD root(like picture below)

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (5)

Make sure that MMI is fully booted(press all buttons once RADIO CAR NAV MEDIA TEL)

Wait until all options are ok(no options in gray) even when all options are ok wait a minute more.

Is the moment for insert the SD in slot 1。

Don’t touch anything

After a few seconds screen will popup,press any key(we suggest thebig knob) once

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (6)

Don’t touch anything again(the script are copying files and doing stuff)

After some seconds/minutes the script will finish and another screen will appear.

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (7)

Remove the SD before doing anything

Reboot your MMI using the 3 button

How to Enable Audi MMI Green Menu(Hidden Menu) by VCDs & Script (8)

Now you can access to “Green Menu”
