How to Do Front Camera Calibration with G-scan for 2018 Volkswagen Atlas

After replacing a front windshield or a front camera module, you need to preform camera calibration using a scan tool. This instruction will show you guide on how to do front camera calibration with G-scan for 2018 Volkswagen Altas.

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-1

Procedure:

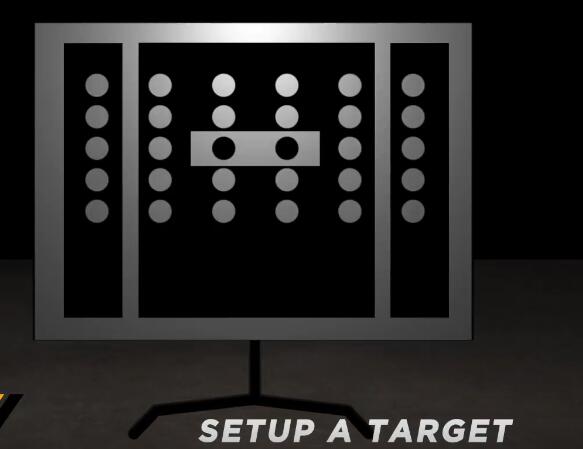

First steP is to setup a target as instructed in the OEM repair manual.

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-2

Locate the center line of all wheels on the ground and mark the point using a tape and a marker

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-3

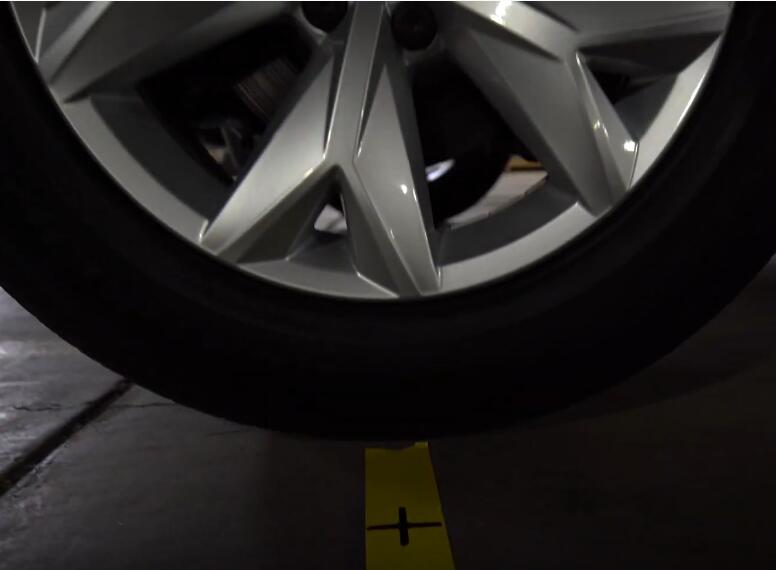

In this case, we used a laser level and a square block to locate the center point for all 4 wheels.

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-4

Next, draw a straight line from the rear to the front wheel’s center point, measure 1500mm from the front wheel’s center point and locate the point.

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-5

Draw another line between the left and the right point, the target need to be positioned in the middle of this line.

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-6

The height of the target needs to be positioned about 1200 to 1250mm from ground

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-7

Connect G-scan3, and select “Diagnosis”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-8

Select “Volkswagen”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-9

Click on “Automatic Selection”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-10

Select “Information and Communication System”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-11

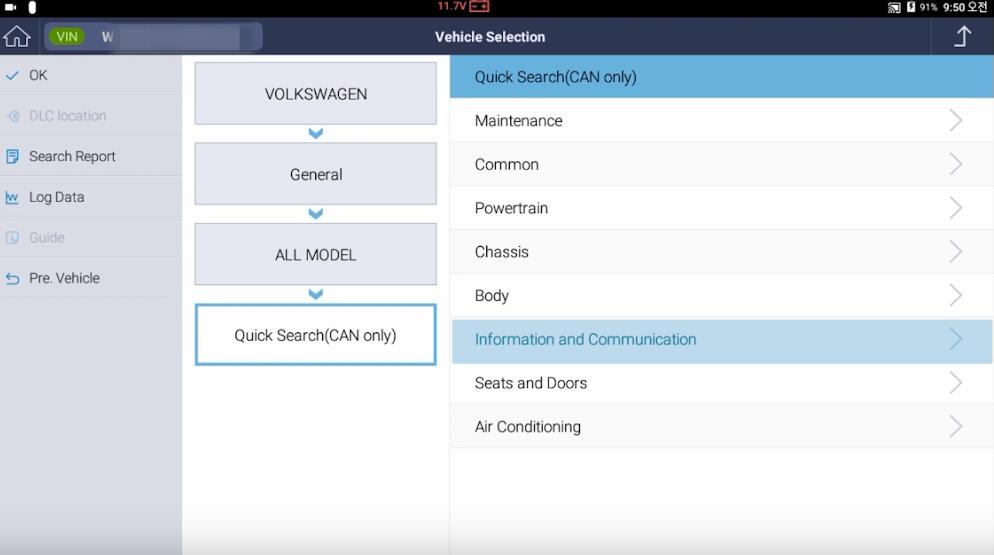

Select “A5 Front sensors driver assistance”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-12

Select “Special Function”–>”Calibrate Control Unit”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-13

This function will calibrate the front camera module. Always read the description carefully before you press OK to continue

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-14

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-15

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-16

If the target is ready ,click “OK”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-17

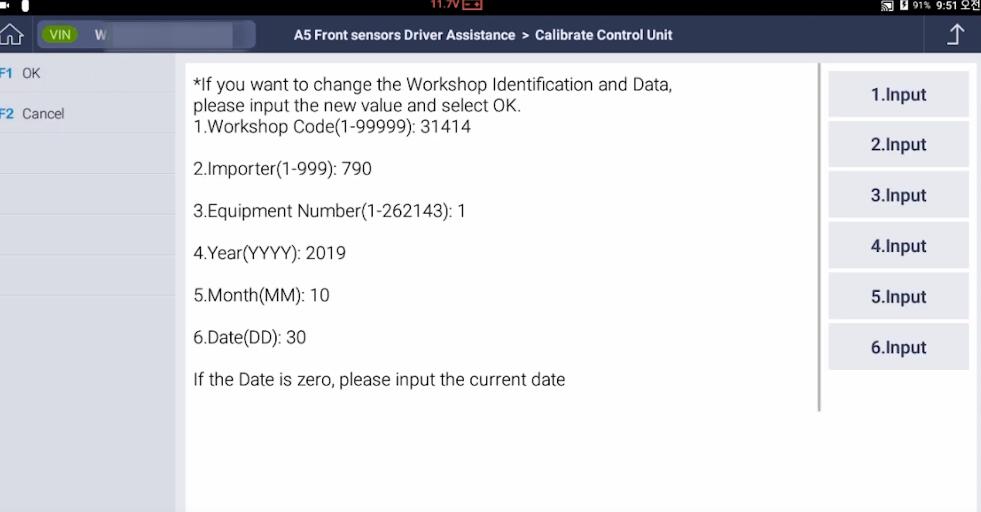

Below is the workshop ID and data that were saved in the last time. If you would like to make a change, you can do it by selecting Input buttons located on the right of the screen. Click “OK” to continue

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-18

Input the distance between the tire contact patch and the edge of the wheel housing.

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-19

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-20

Click “OK” to continue

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-21

This the the results of calibration, click “OK”

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-22

Turn the ignition OFF and click OK, then turn the ignition ON and click OK.

Calibration of the camera was performed successfully

How-to-Do-Front-Camera-Calibration-with-G-scan-for-2018-Volkswagen-Atlas-23
