GM GL8 2008 ECM & TCM Service Programming by TIS2Web

This article show you the guide on how to use TIS2Web to perform ECM and TCM service programming for GM GL8 2008 3.0L V6 LZC.And for more GM repair projects,please check here:GM Vehicle Repair Cases.



Preparations:

MDI TIS2web Pass-Thru Programming Guide

VXDIAG NANO for GM



Procedures:

Go to https://www.acdelcotds.com to access your “Service Programming” subscription

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (1)

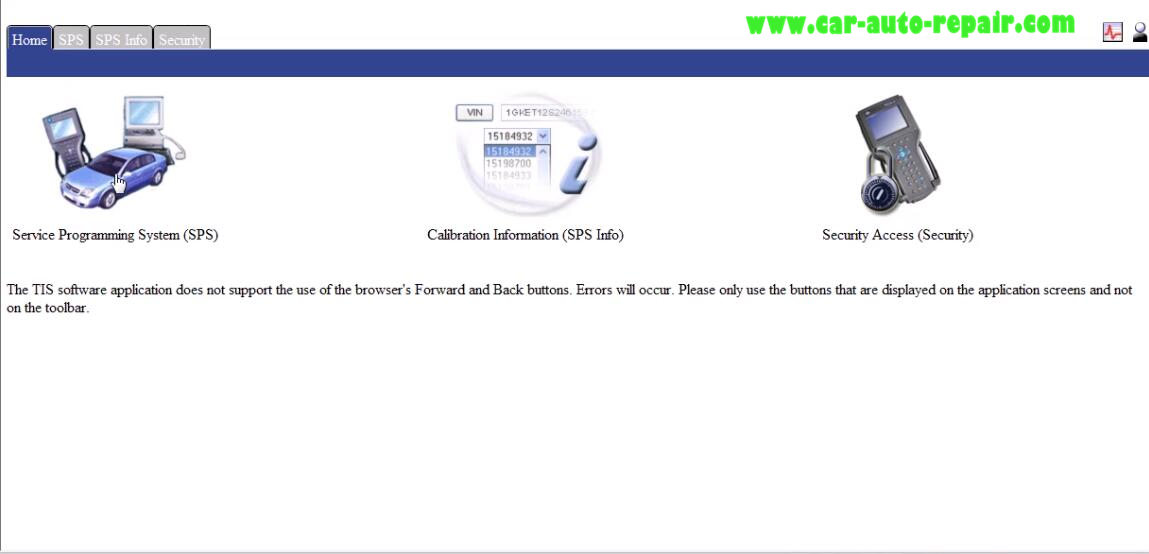

Select “Service Programming System(SPS)”

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (2)

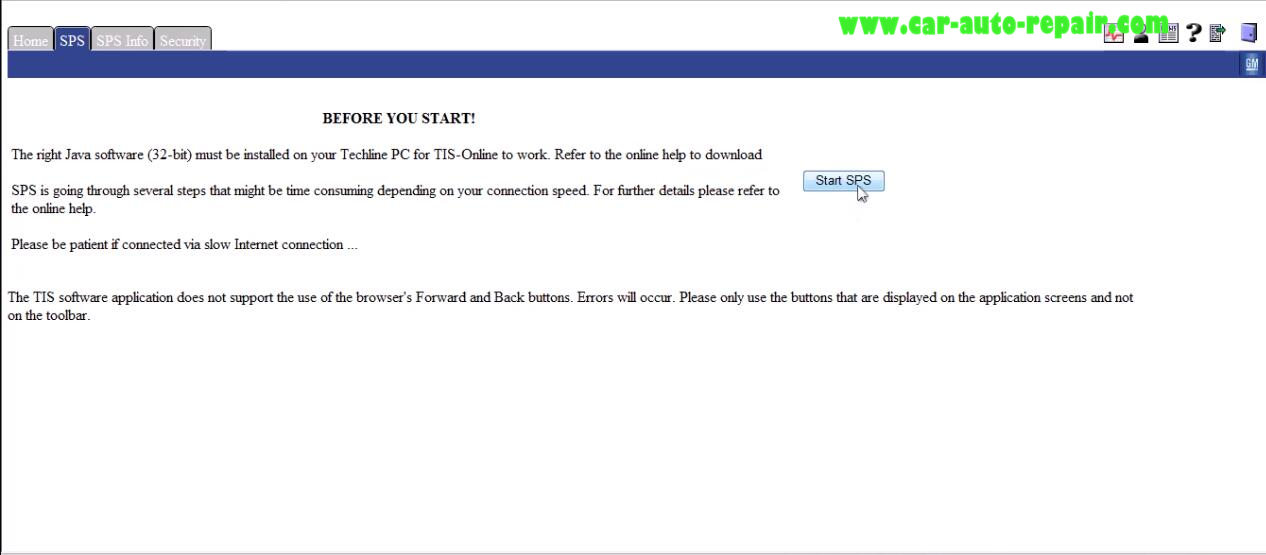

SPS is going through several steps that might be time consuming depending on your connection speed.For further details please refer to online help.

Select “Start SPS”

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (3)

Select Diagnostic Tool “J2534 VXDIAG” and Programming Process “Reprogram ECU”

Click “Next” to continue.

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (4)

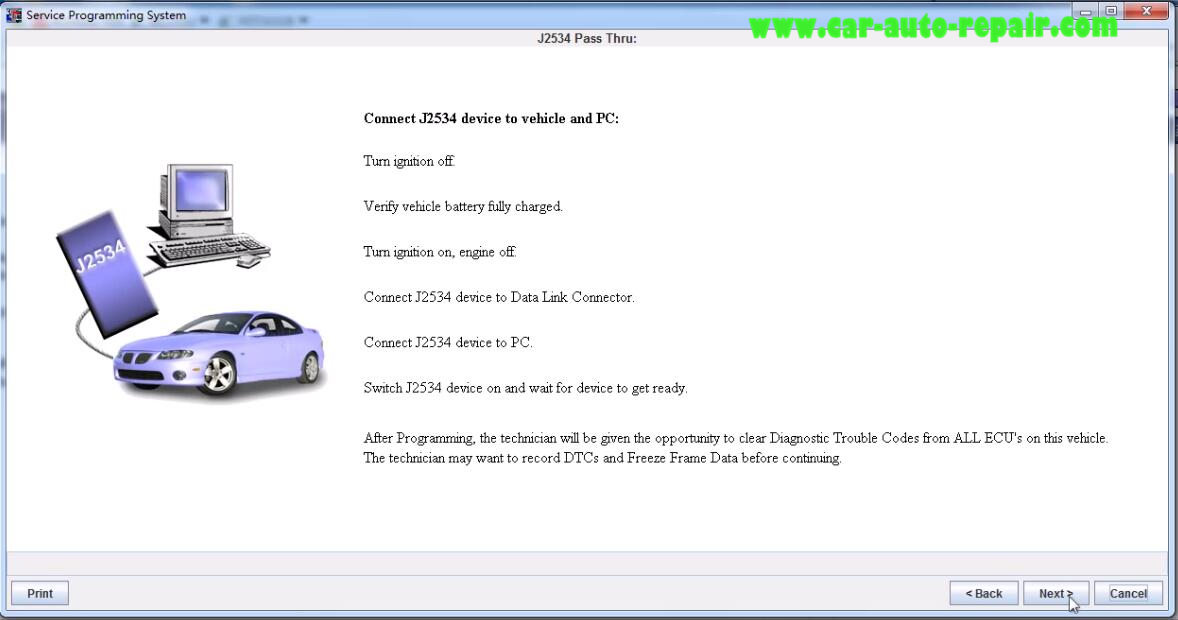

Connect J2534 device to vehicle and PC:

Turn ignition off

Verify battery fully charged

Turn ignition on,engine off

Connect J2534 device to Data Link Connector

Connect J2534 device to PC

Switch J2534 device on and wait for device to get ready

After programming,the technician will be given the opportunity to clear Diagnostic Trouble codes from all ECU’s on this vehicle.The technician may want to record DTCs and Frame Data before continuing.

Click “Next” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (5)

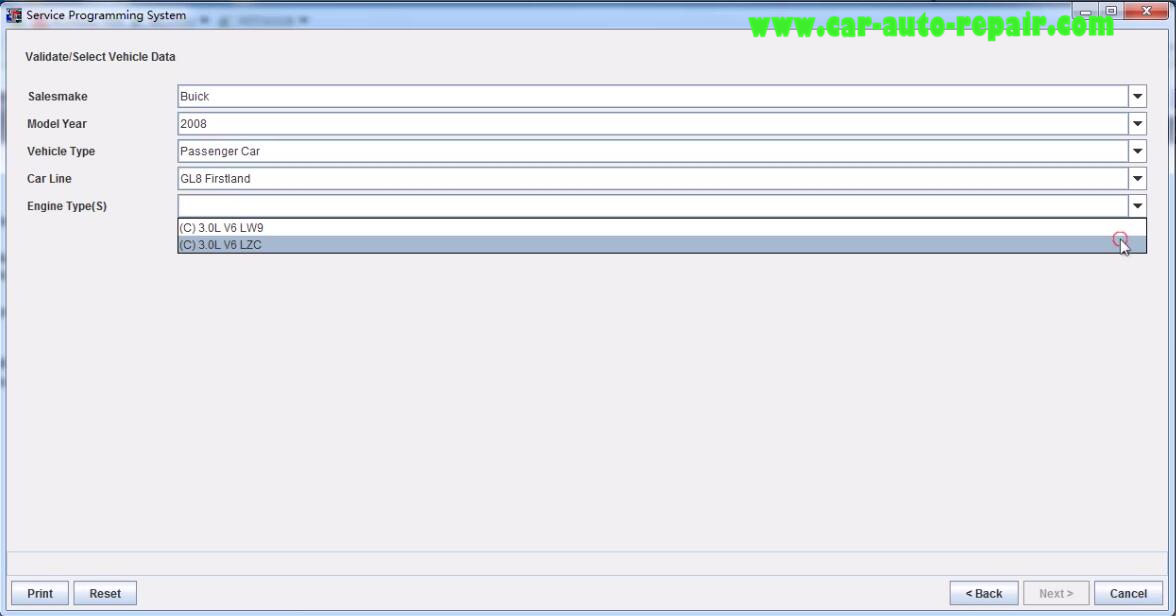

Select vehicle

Salesmake:Buick

Model Year:2008

Vehicle Type:Passenger Car

Car Line:GL8 Firstland

Engine Type(S):(C) 3.0L V6 LZC

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (6)

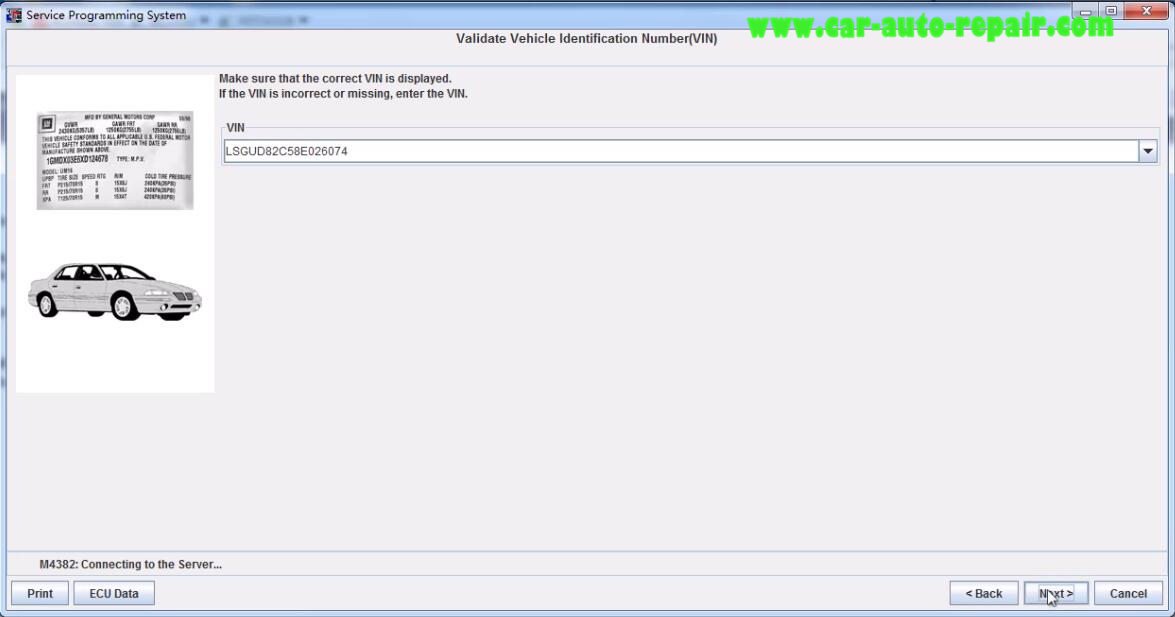

Validate Vehicle Identification Number

Make sure that the correct VIN is displayed

If the VIN is incorrect or missing,enter the VIN

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (7)

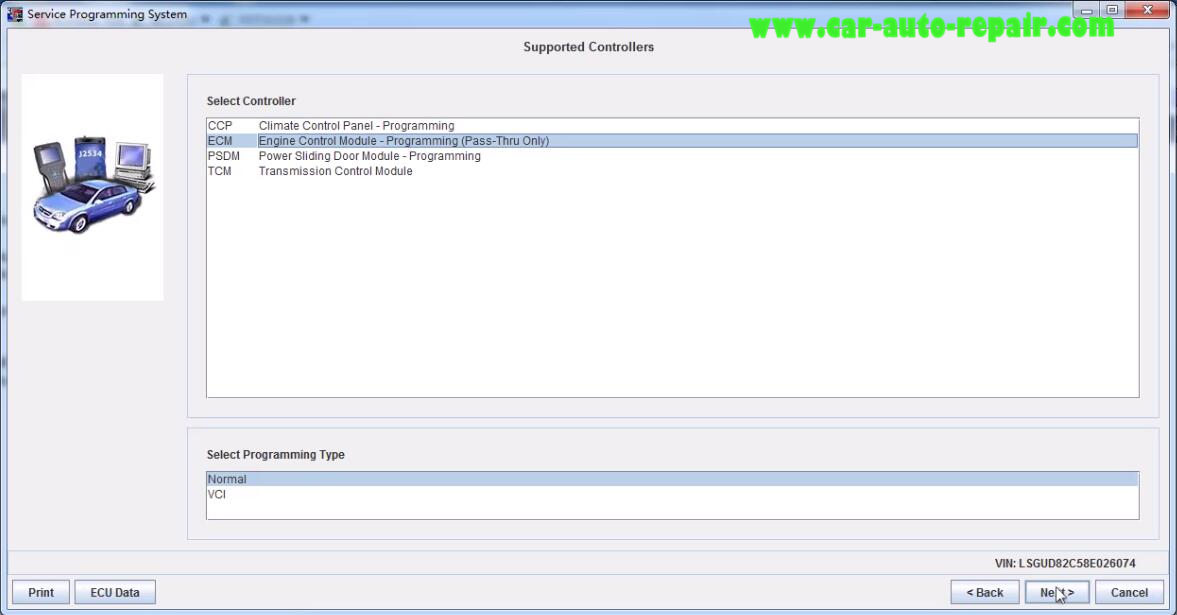

Select “ECM (Engine Control Module-Programming (Pass-Thru Only))”

And Programming Type:Normal

Click “Next” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (8)

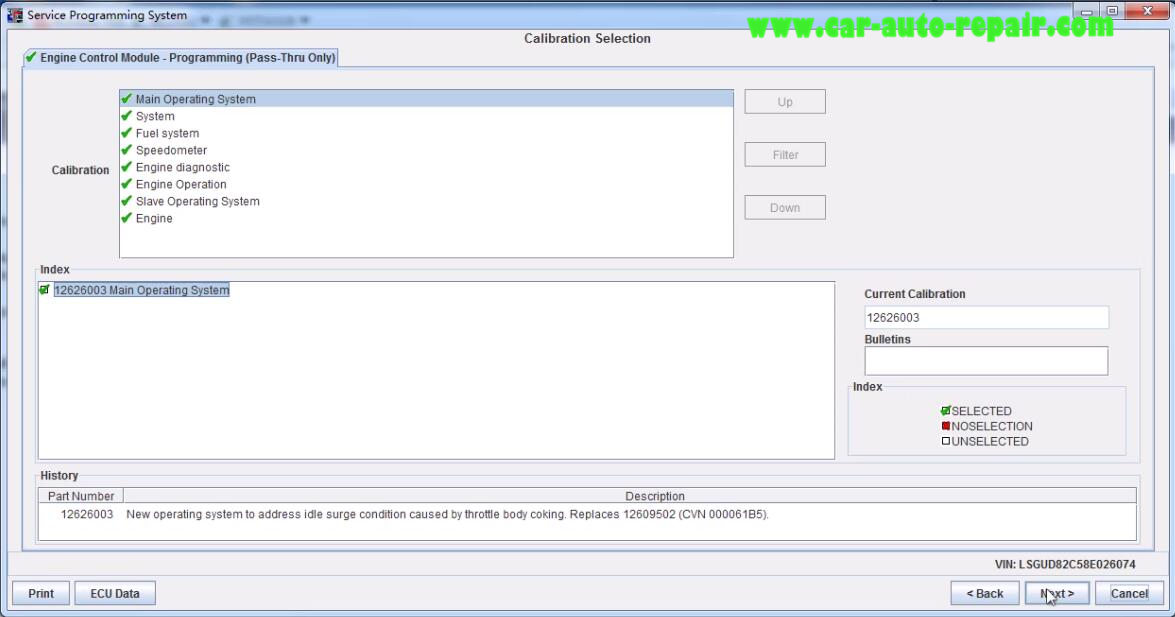

It show the calibration selection

Click “Next” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (9)

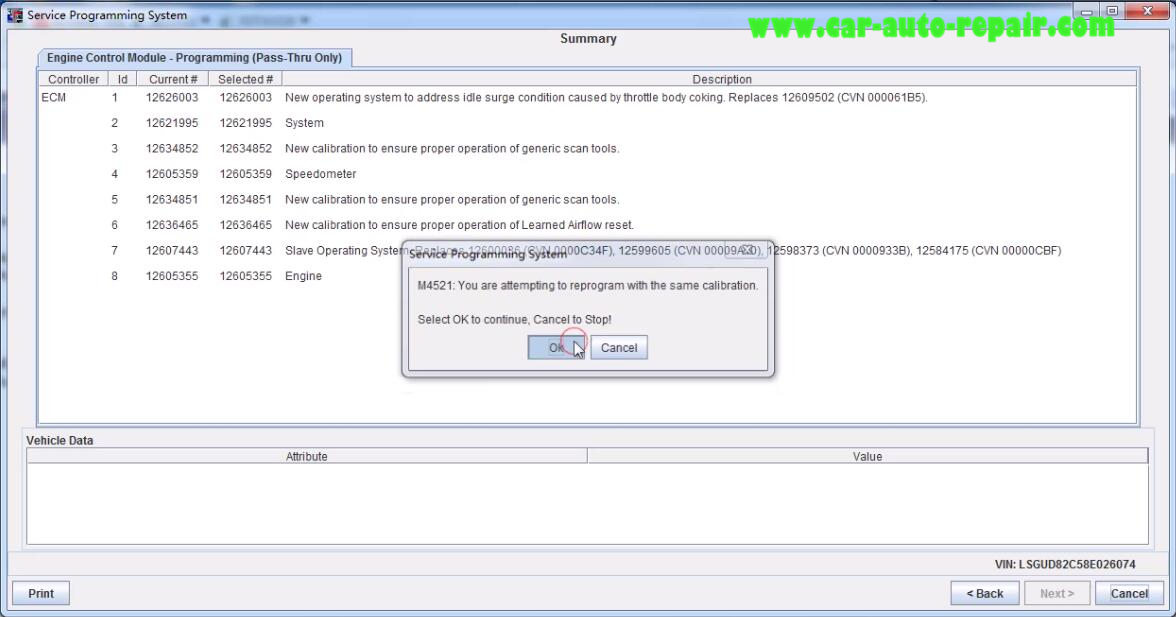

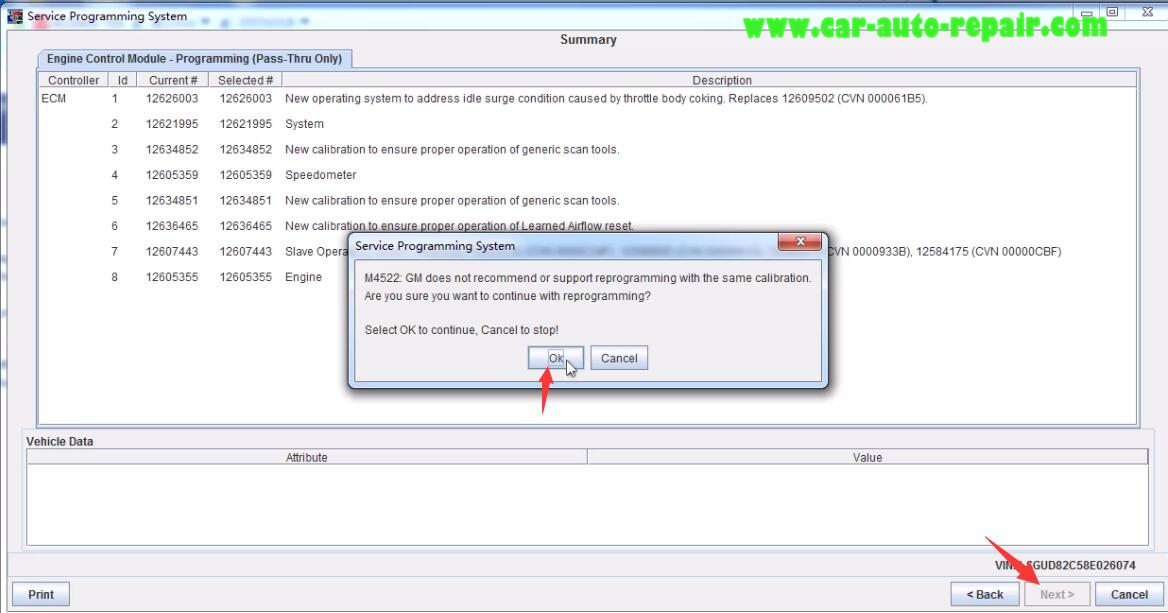

You are attempting to reprogram with the same calibration

Select OK to continue,cancel to stop!

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (10)

And prompt you “Are you want to continue with reprogramming?”

Click “OK” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (11)

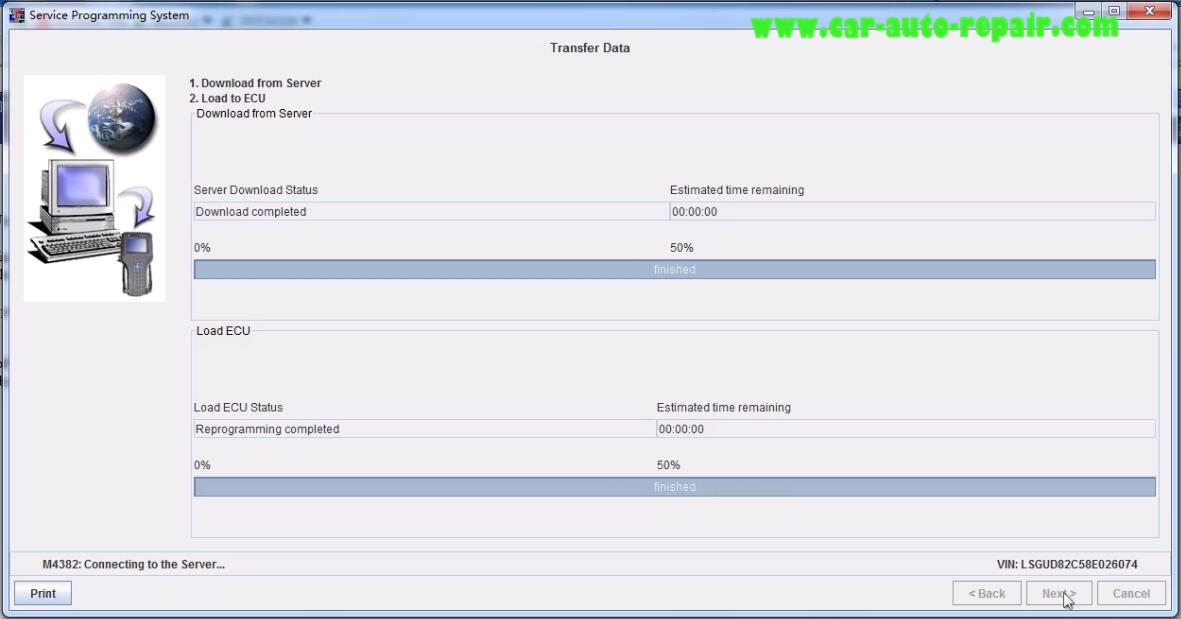

Transfer Data

It will download data from server and load to ECU automatically,please wait process..

Then click”Next” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (12)

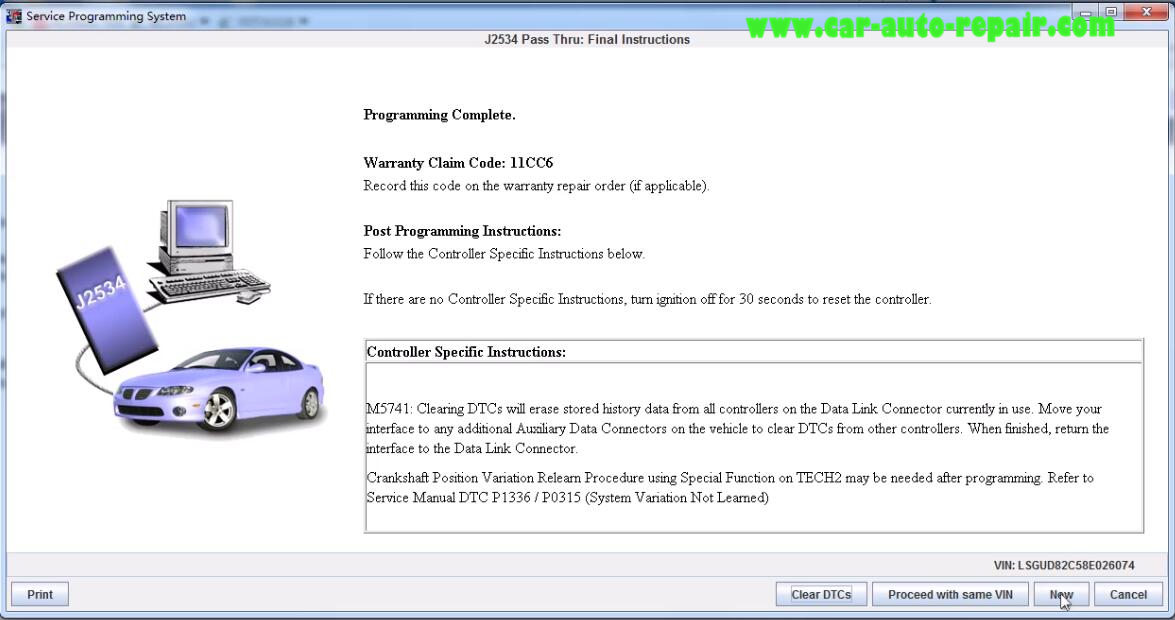

Programming Complete.

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (13)



GM TCM Transmission Control Module Programming:

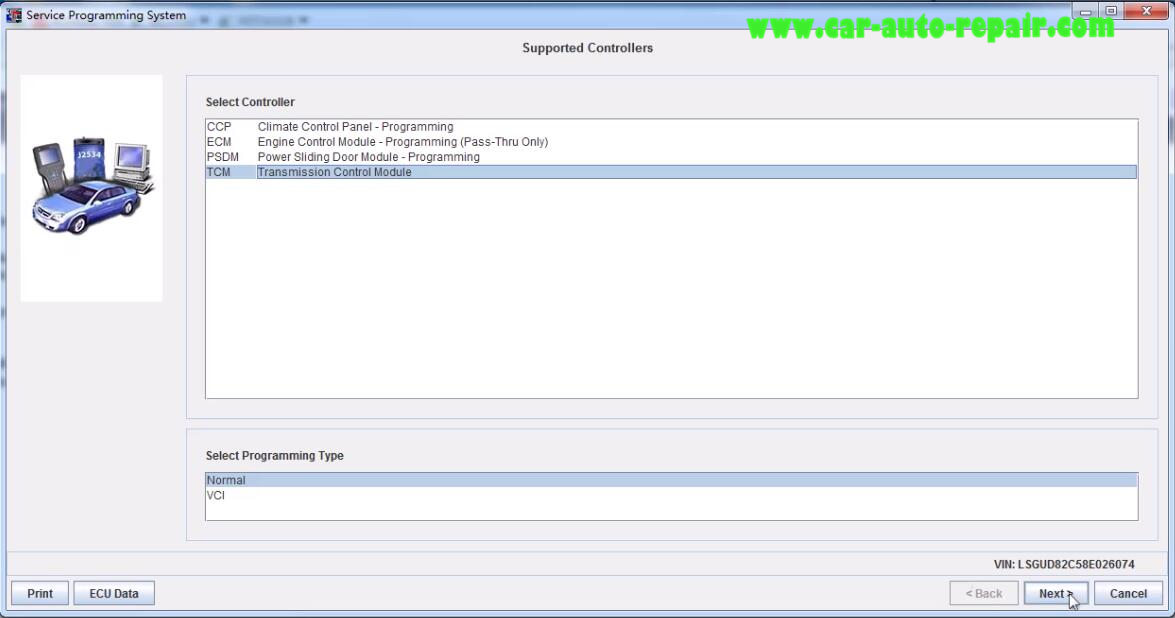

Back to controller selection,and select “TCM” and programming type:normal

Click “Next” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (14)

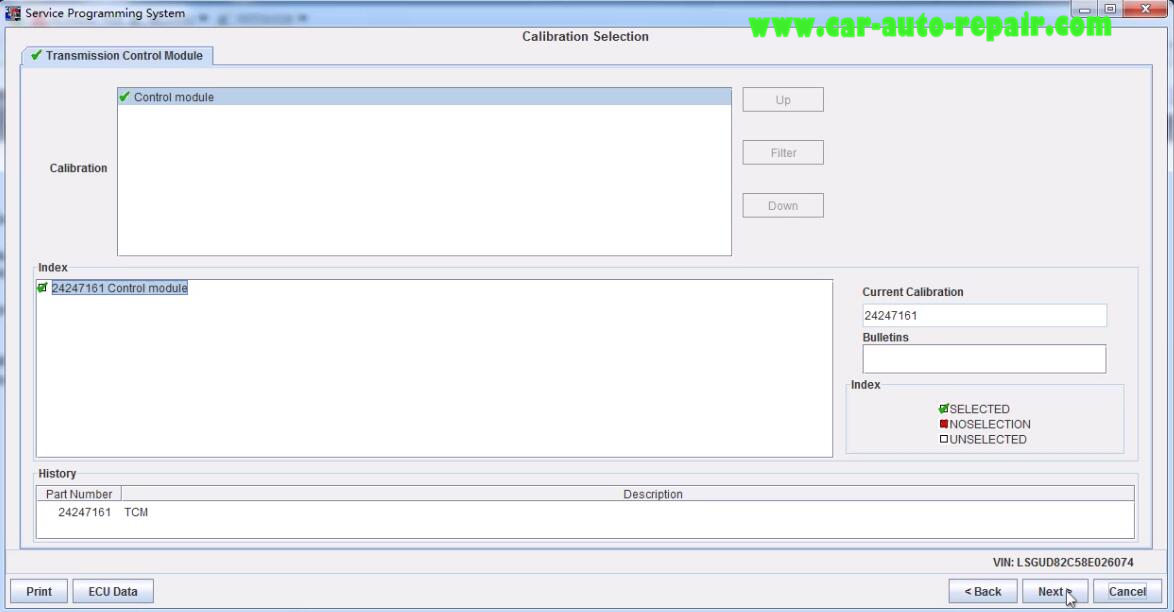

TCM Control Module calibration selection,click “Next” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (15)

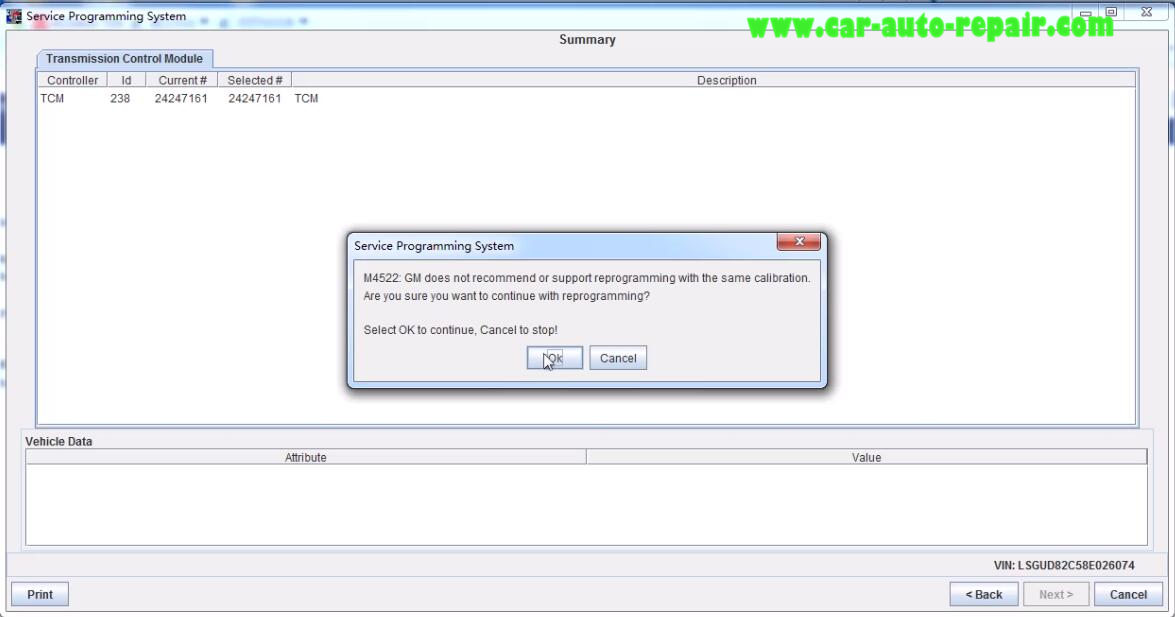

M4522 GM does recommend or support reprogramming with the same calibration.

Are you sure want to continue with reprogramming?

Click “OK” to continue

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (16)

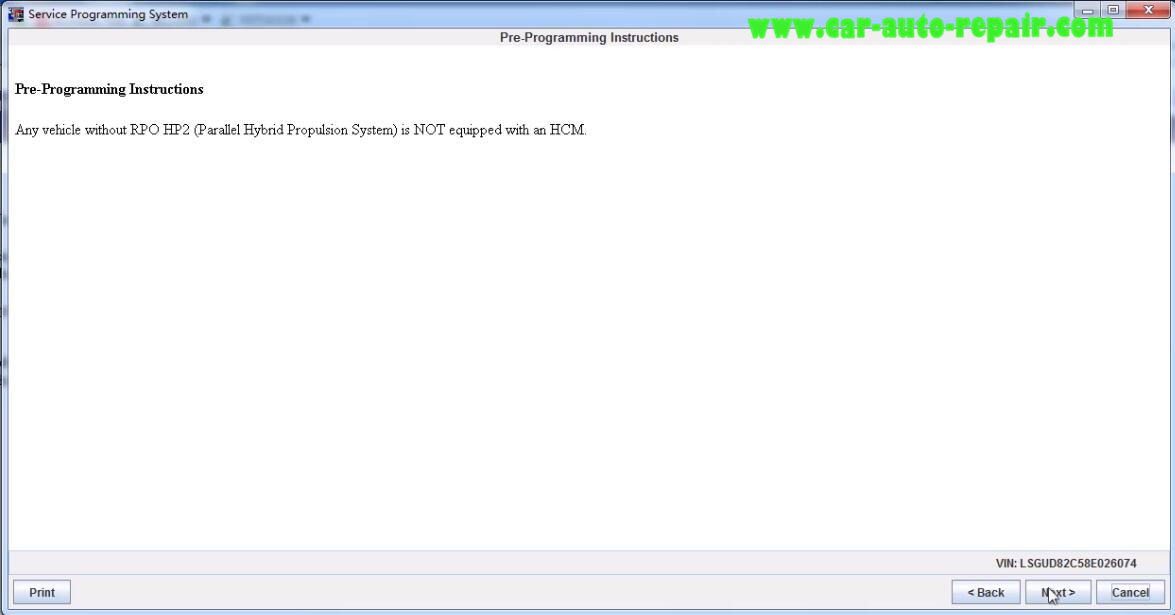

Pre-Programming Instructions

Any vehicle without PRO HP2 (Parallel Hybrid Propulsion System) is NOT equipped with an HCM

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (17)

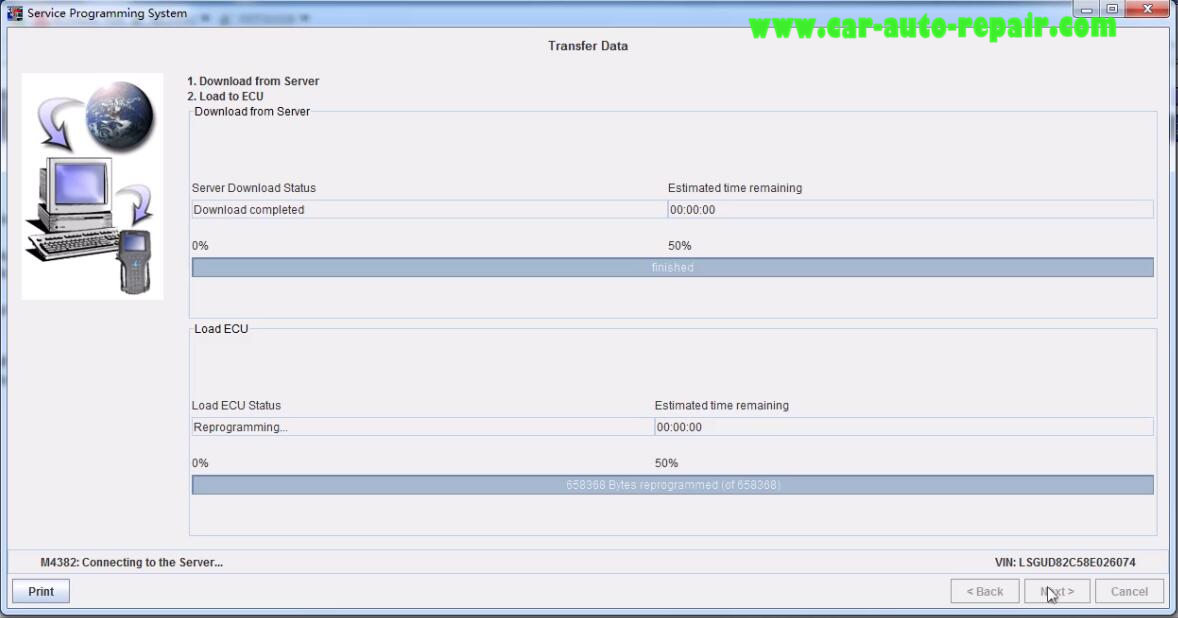

Now it will start programming TCM,after then click “Next”

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (18)

Programming Complete.

GM GL8 2008 ECM & TCM Service Programming by TIS2Web (19)

Done!
