Bosch ADS625 ADS 325 Live Data Guide

This is a training article for Bosch ADS series diagnostic tool,in this article I will introduce how to use Bosch ADS625 & 325 live data function.Hope you can gain the good deal of enlightenment from it.



Live data is vital to confirming an issue in repairing a vehicle.



Bosch ADS625 & 325 Related Contents:

How to Use Bosch ADS 625 ADS 325 to Identify a Vehicle

Bosch ADS 625 ADS325 Read DTCs for Chevrolet Silverado

How to Use Bosch ADS625 and ADS325 Diagnostic Scanner



Procedures:

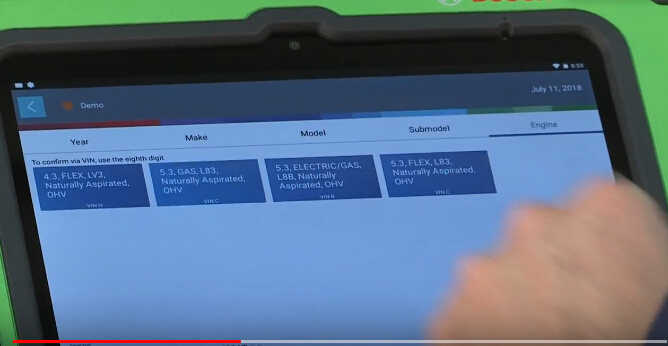

Before you perform Bosch ADS 625 series live data function,you need to identify the vehicle,check: How to Use Bosch ADS 625 ADS 325 to Identify a Vehicle

Bosch ADS625 ADS 325 Live Data Guide (1)

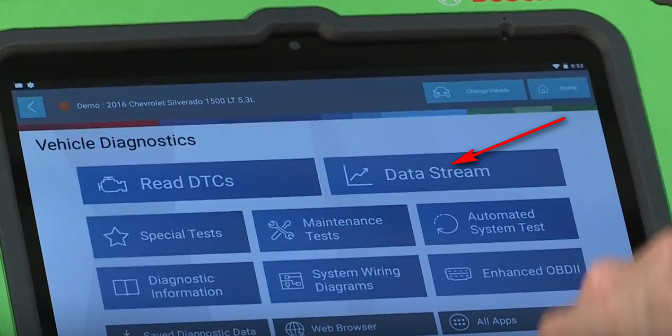

Select “Data Stream”

Bosch ADS625 ADS 325 Live Data Guide (2)

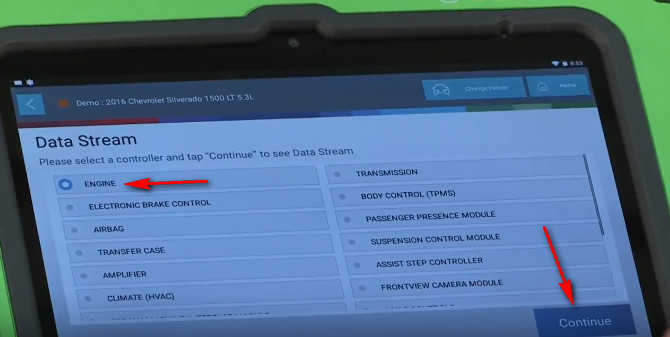

Please select a controller and tap “Continue” to see Data Stream.

Here take Engine as example,select “Engine”,then tap “Continue”

Bosch ADS625 ADS 325 Live Data Guide (3)

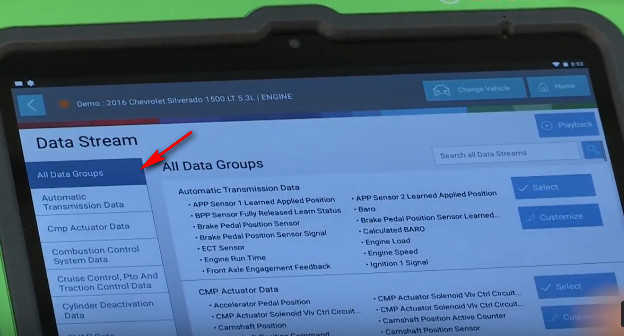

Select from predetermined data groups from left side menu

Bosch ADS625 ADS 325 Live Data Guide (3)

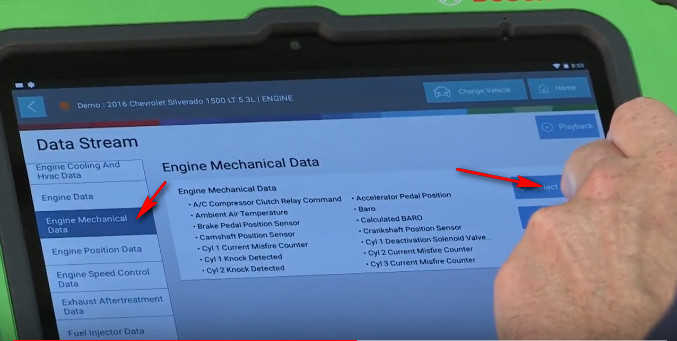

Scroll down option to select “Engine Mechanical Data”,the tap “Select” to continue

Bosch ADS625 ADS 325 Live Data Guide (3)

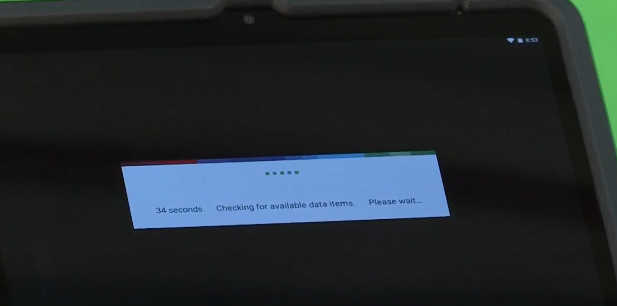

Checking for available data items,please wait…

Bosch ADS625 ADS 325 Live Data Guide (6)

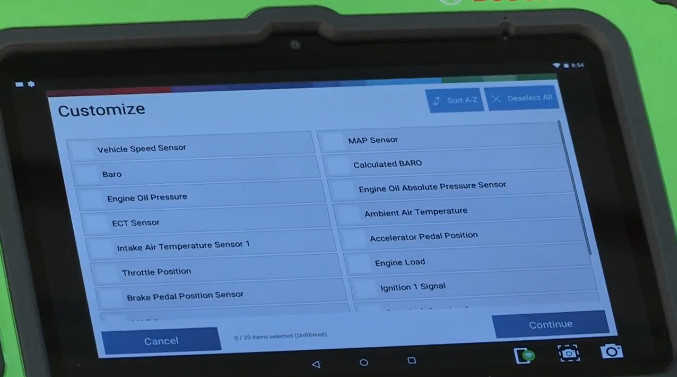

Now you can custom the data you want to do play

Bosch ADS625 ADS 325 Live Data Guide (7)

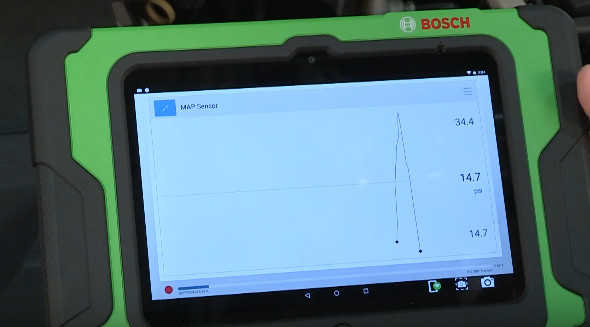

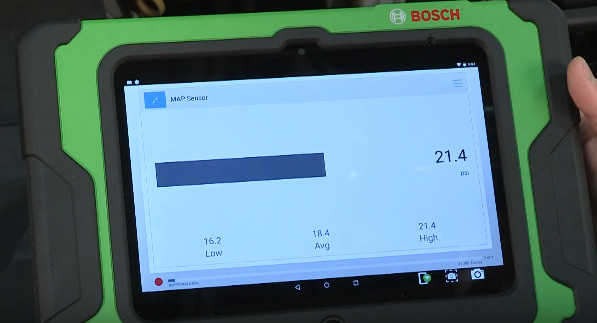

And you can change the play type into live graph

Bosch ADS625 ADS 325 Live Data Guide (8) Bosch ADS625 ADS 325 Live Data Guide (9)

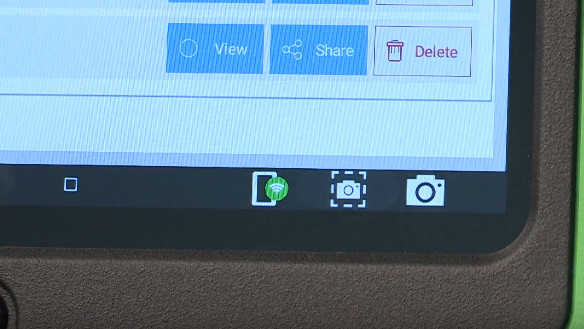

Take a screenshot to save the data for reports

Bosch ADS625 ADS 325 Live Data Guide (10) Bosch ADS625 ADS 325 Live Data Guide (11)
