Volvo FH Truck Rocker Arm Shaft Removal Guide

This instruction show you guide on how to remove rocker arm shaft for Volvo FH trucks.Illustrations may differ slightly from the actual vehicle being serviced. However, key components addressed in this information are represented as accurately as possible.



Related Contents:

2024 Volvo Premium TechTool PTT 2.8.240/2.8.150/2.7.116 All Version Free Download

Volvo PROSIS 2023 2019 2018 Parts Catalog & Repair Manuals Free Download

Volvo Diagnostic Kit (88890300)

Volvo VOCOM 88890300 Diagnostic Kit





Procedures:

1 Disconnect the cable from the negative terminal.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-1

2 Lock the roof spoiler.

3 Place the gear selector in neutral.

4 Apply the parking brake.

5 Exit the cab.

6 Tilt the cab forward.

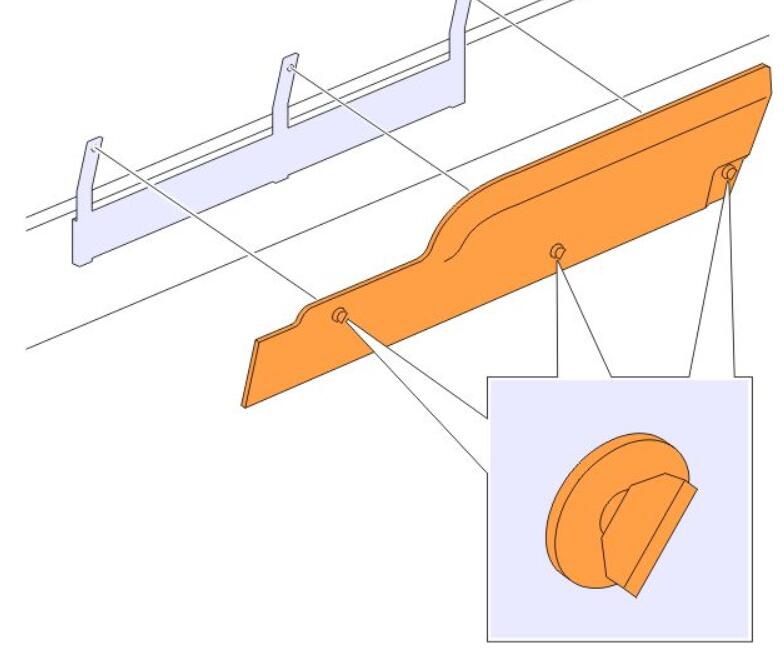

7 Remove the sound baffle.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-2

8 Remove the cable harness.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-3

9 Remove the screws.

10 Remove the pipe.

11 Remove the sealing ring.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-4

12 Remove the screws.

13 Remove the valve cover.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-5

14 Clean around the valve.

15 Remove the screws.

16 Remove the valve.

Note:Do not remove the cable ties.

17 Remove the spacer sleeve.

18 Remove the pipe.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-6

14 Clean around the valve.

15 Remove the screws.

16 Remove the valve.

Note:Do not remove the cable ties.

17 Remove the spacer sleeve.

18 Remove the pipe.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-7

21 Loosen the screws (1-13).

Note:Loosen the screws evenly in stages along the entire length of the the rocker arm shaft to prevent damage.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-8

22 Remove the screws.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-9

23 Adjust the lifting tool (A).

24 Install the lifting tool (A).

25 Secure the pistons.

Note:Use cable ties.

Volvo-FH-Truck-Rocker-Arm-Shaft-Removal-Guide-10

26 Remove the rocker arm shaft.
