How to Activate/Deactivate/Reset Engine Immobiliser for JCB Machine

When you perform JCB mahcine engine ECU updating or other some function,you need to do activation/deactivation or resetting on immobilizer.Here is a guide on how to use JCB ServiceMaster 4 diagnostic software to to activate/deactivate or reset immobilizer.



Preparations:

2022 JCB ServiceMaster 4 Free Download for Win 7/Win 8/Win 10

2017 JCB Parts Plus+ and Repair Service Manual Free Download



Procedures:

1.Make a note of the engine serial number on the engine labels

2.Make sure the machine is switched on and ServiceMaster is connected.

3.Navigate to the relevant machine engine setup tool:

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-1

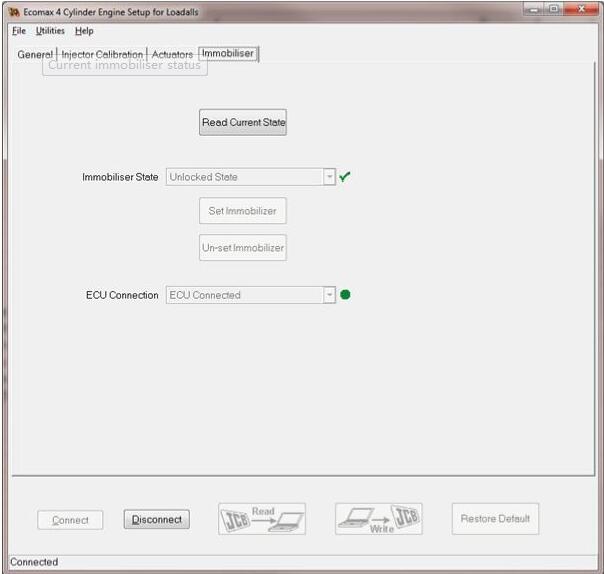

4.Navigate to the immobiliser tab. This will show the current status of the immobiliser:

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-2

5.Navigate to utilities / high security unlock and select Copy CHALLENGE to Clipboard.

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-3

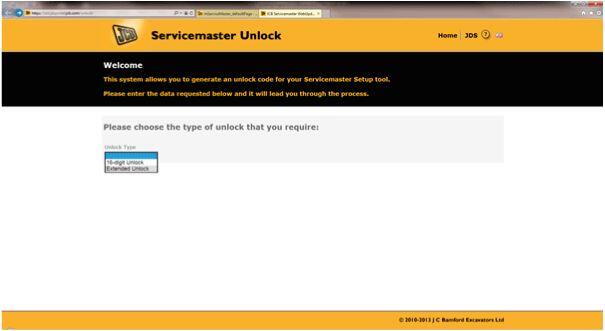

6.Log into JDS and navigate to the unlock page. Select Extended Unlock

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-4

7.Paste the challenge value and click submit.

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-5

8.Select Immobiliser. Enter the engine serial number (refer to step 1). Enter any relevant information into the Reason Required field:

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-6

9.Copy the response value provided.

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-7

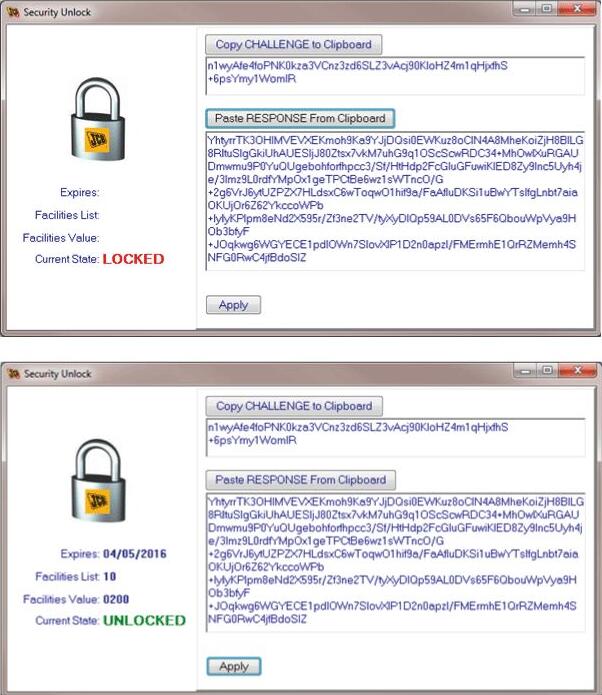

10.Paste the response value into the high security unlock page in ServiceMaster. Select Apply. The relevant fields will now be unlocked. Close the security unlock page.

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-8

11.The options to Set or Un-set the Immobiliser will now be available.

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-9

12.Setting the immobiliser will result in the following message:

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-10

13.Un-setting the immobiliser will result in the following message:

How-to-ActivateDeactivateReset-Engine-Immobiliser-for-JCB-Machine-11

14.After either selection, the ECU will need to be restarted. Switch off the machine and wait for at least 2 minutes before performing any further operations on the machine.

15.If setting the immobiliser, please refer to machine instructions to pair the immobiliser devices.



More topics for JCB machine,please refer to:JCB Machine Trouble Repair.
