Toyota ADT Injector Quantity Learning by Techstream

After replacing the engine assembly or injectors you need to perform pilot quality learning in the Engine ECU for Toyota ADT.So this instruction show you guide on how to use Techstream do to injector quantity learning for Toyota ADT.



Preparations:

Latest Toyota TIS Techstream Software Free Download

MINI VCI Cable J2534

Toyota TIS Techstream Video+PDF Tutorial



Procedures:

Connect VCI cable to your Toyota OBD port,then run Techstream on desktop

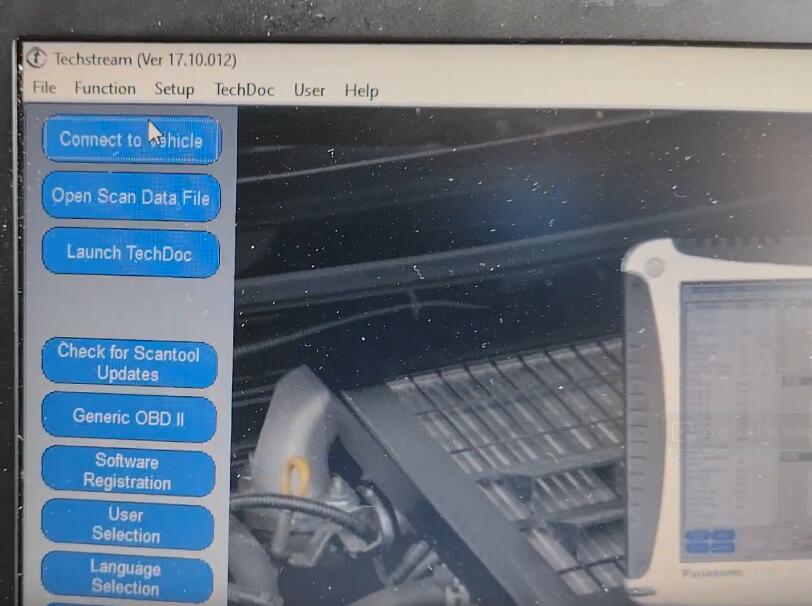

Click “Connect to Vehicle”

Toyota-ADT-Injector-Quantity-Learning-by-Techstream-1-1

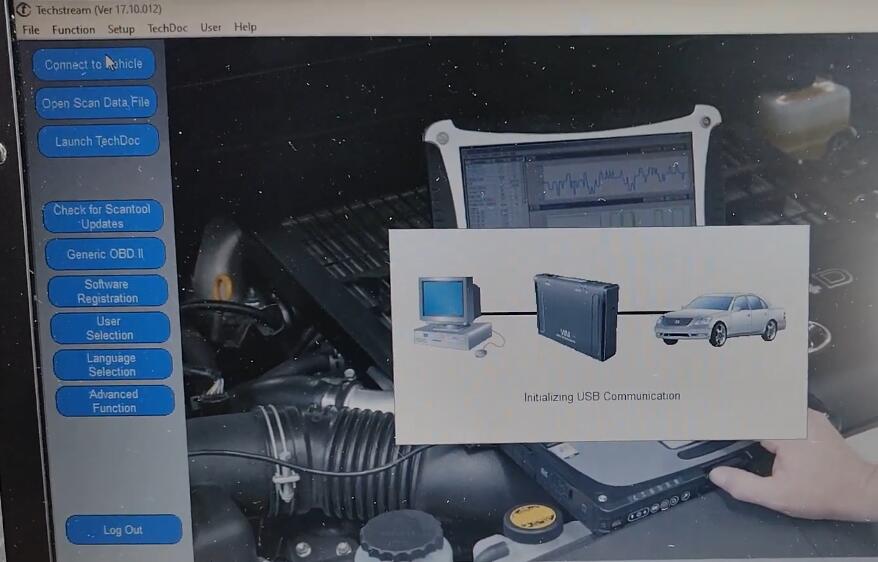

Initializing USB Communication

Toyota-ADT-Injector-Quantity-Learning-by-Techstream-2

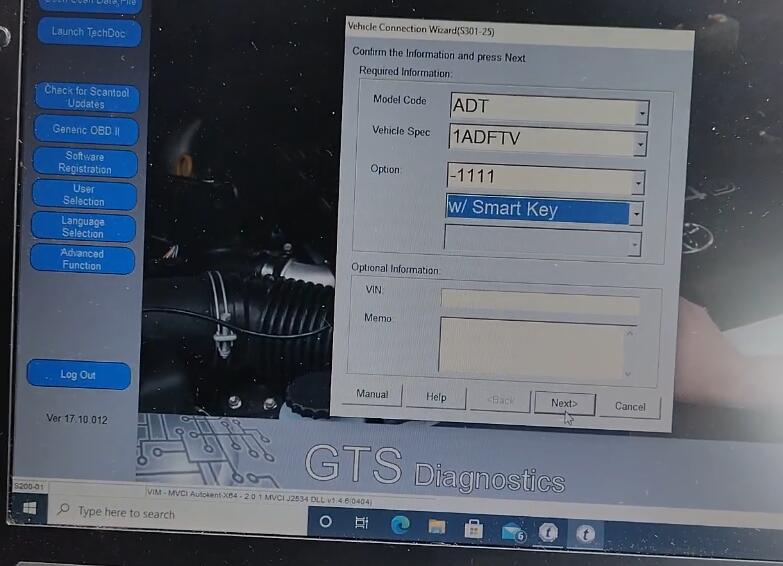

Confirm information and press Next

Toyota-ADT-Injector-Quantity-Learning-by-Techstream-3

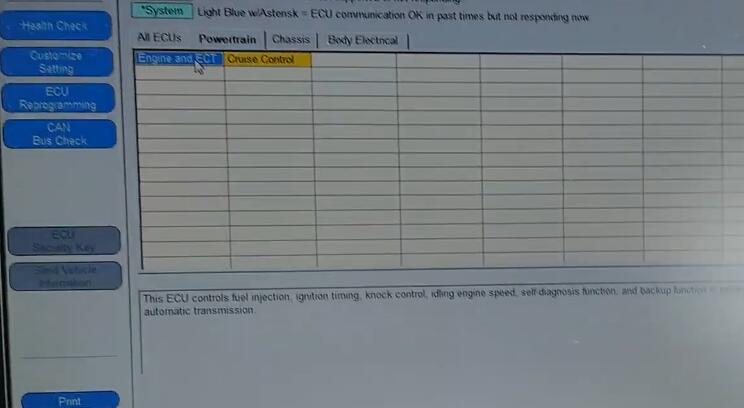

Double click “Engine and ECT”

Toyota-ADT-Injector-Quantity-Learning-by-Techstream-4

Then click “Utility”

Toyota-ADT-Injector-Quantity-Learning-by-Techstream-5

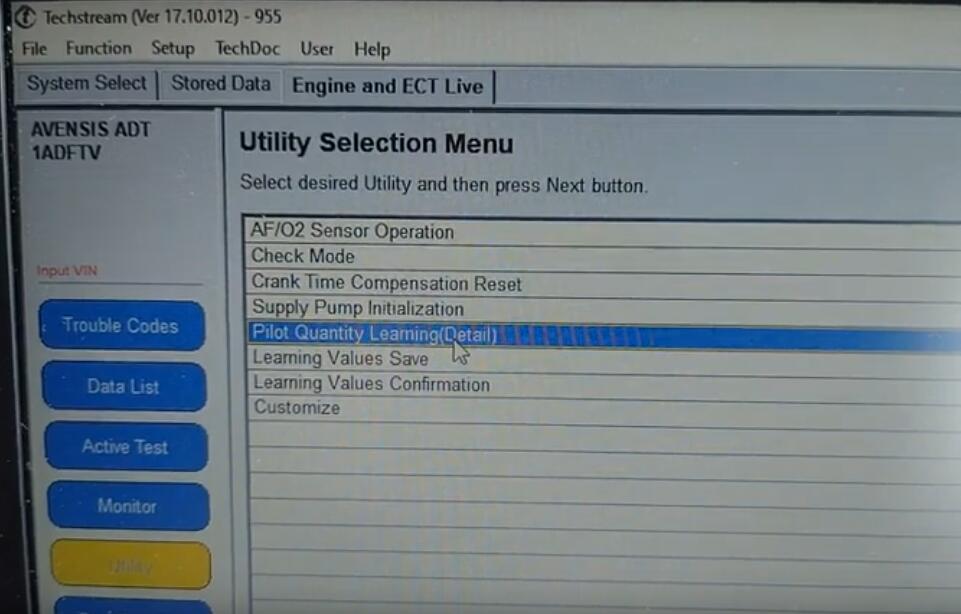

After then select “Pilot Quantity Learning (Detail)”

Then click “Next” arrow

Toyota-ADT-Injector-Quantity-Learning-by-Techstream-6

After then just wait finish.
