How to use G-Scan calibrate Steering Angle Sensor(SAS) for Mercedes Benz Maybach

Here is a short demonstration of SAS calibration on 2017 Mercedes Benz Maybach. If you want to know more about G-Scan function, please refer to G-Scan test cases.

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-1

Replace Electronic Steering Assembly.

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-2

Procedures:

Connect G-Scan 3 tool to Benz Maybach, then select “Service Function”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-3

Select “STEERING ANGLE SENSOR CALIBRATION”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-4

Select “MERCEDES BENZ”–>”AUTOMATIC SELECTION”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-5

Confirm information then tap “OK”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-6

Select “Chassis”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-7

Select “ES-Electrical power steering” then tap “OK”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-8

Select “Reset learned values”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-9

Always read the description carefully, then tap “OK”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-10

You need to drive the vehicle at least 5km/h and turn the steering wheel to the full left and right until the status changes to “TAUGHT IN”, tap “OK”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-11

Drive the vehicle at 5km/h and turn the steering wheel to the left until the status changes to “TAUGHT IN”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-12

Then turn the steering wheel to the right until the status changes to “TAUGHT IN”

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-13

Press “OK” to exit the function.

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-14

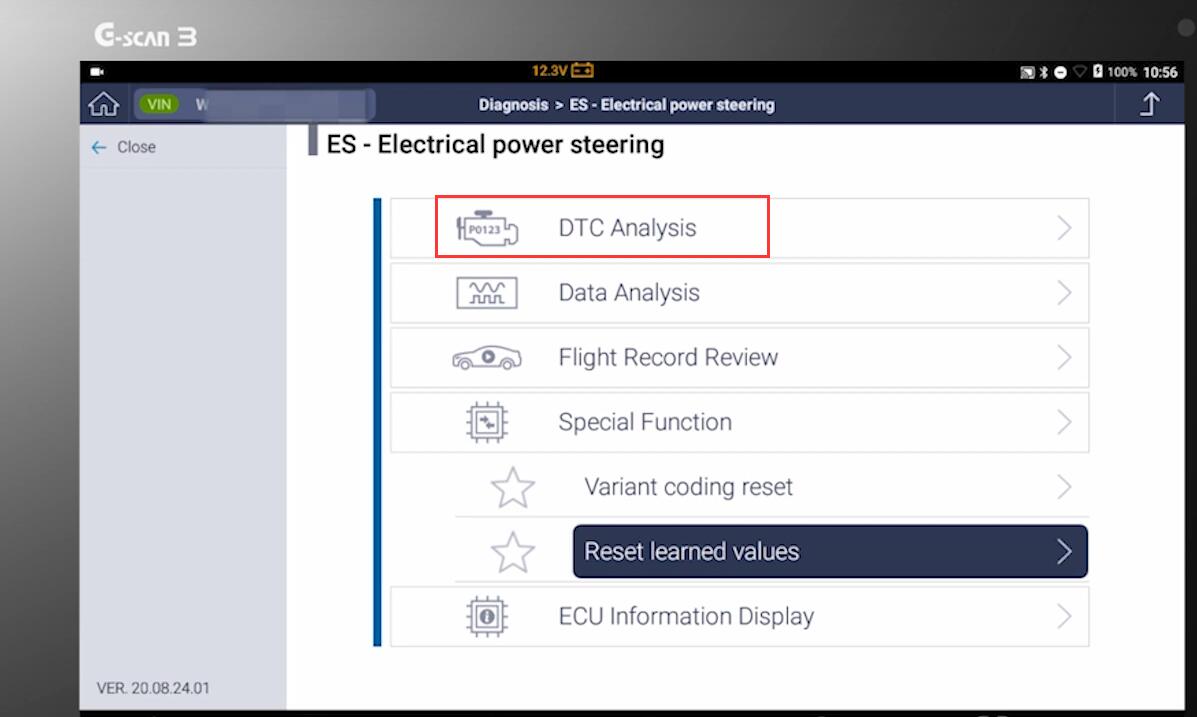

Select “DTC analysis” to check for any possible trouble codes.

How-to-use-G-Scan-calibrate-Steering-Angle-SensorSAS-for-Mercedes-Benz-Maybach-15

Function has been completed successfully.



If you want to know more about Benz projects, please refer to Benz Trouble Repair.
