How to Replace Transmission Mount for Mercedes E-Class W212 2009-2016

The car developed a vibration from the drive shaft area under the car between speed 30-50km/h, this instruction will show you guide on how to fix that issue by changing the transmission mount.

More replace cases about Benz W212, please refer to BENZ E-CLASS W212.





Steps:

The transmission mount is at the end of the transmission where the transmission connects to the drive shaft

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-1

After check the drive shaft bushing if it’s cracked or worn it will cause vibration

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-2

The car started vibrating between 30-50km/h after visual inspection of the mount it looked a little collapsed from the inside

There 13mm bolts hold the mount from the bottom, unscrew it

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-3

Removing this bracket gives better access to the mount , two E12 bolts hold it on

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-4

Need a jack to lift the transmission. Use a piece of wood to protect the transmission pan from being damaged

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-5

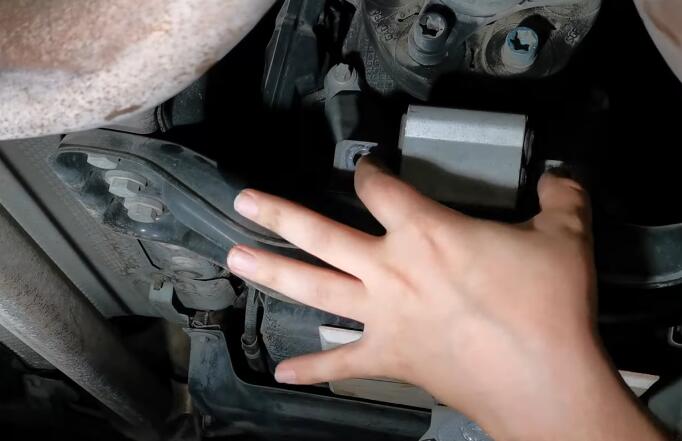

Unlock two 16mm bolts hold the mount to the transmission, note the direction of the mount when removing it

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-6

Old and new transmission mount

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-7

Install new transmission mount. Need to jack the transmission a bit more due to the height difference between the old and new mount

How-to-Replace-Transmission-Mount-for-Mercedes-E-Class-W212-2009-2016-8

After installation, put everything back, replacement is finished.
