How to Decode/Reset Audi Navigation RNS Radio AM29LV640

In this instruction car-auto-repair.com show you guide on how to decode/reset Audi Navigation RNS radio AM29LV640ML.The method is shared by RepairAllTV,he write a known code bin file into AM29LV620 chip,then flash file download link included.More radio cases,please refer to:Radio Decode

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-1



Procedures:

Remove Audi Navigation RNS radio and remove the PCB out

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-2

The radio code is stored in this chip (AM29LV640ML)

Note:There are two same model chip,please check it on picture marked!

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-3

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-4

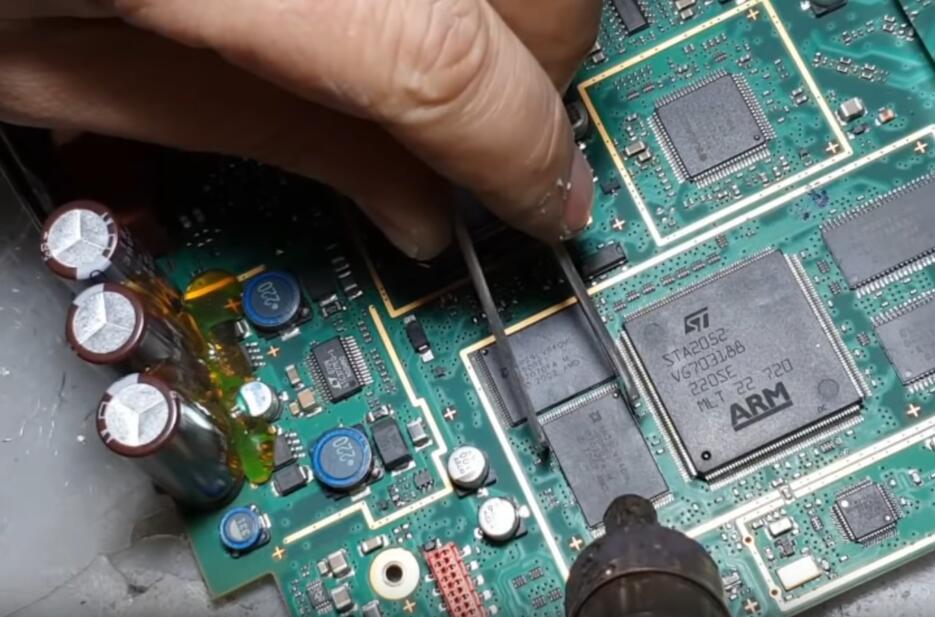

Use solder gun and tweezers to remove the AM29LV640ML chip

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-5

Install AM29LV640ML chip on TNM TSOP56 adapter

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-6

Connect TNM TSOP56 adapter on TNM programmer

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-7

Run TNM Universal Programmer to read out bin file from AM29LV640ML

It is recommended that read out original bin file and save it on your PC

Because if something go wrong after your operation,you are able to write original bin file to restore it.

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-8

Then perform erase to clear the bin data on in AM29LV640ML

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-9

Now load new bin data file with a known code 0607 to write it into AM29LV640ML

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-10

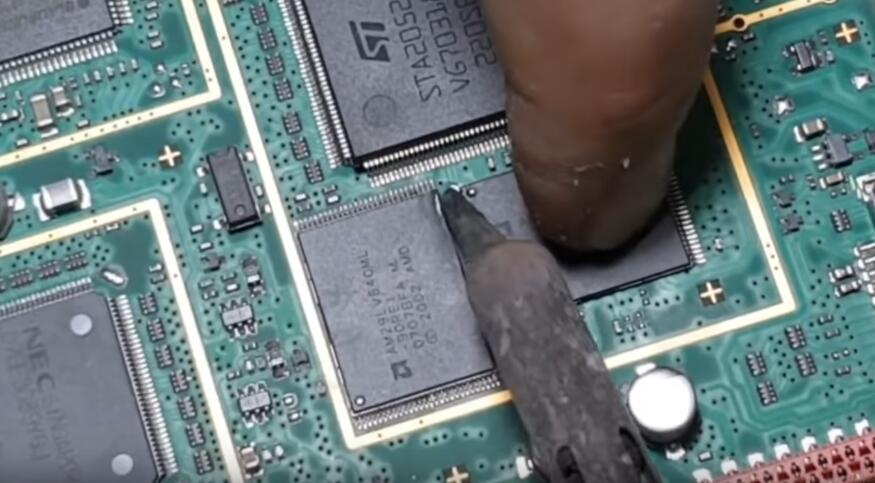

Solder AM29LV640ML chip back on PCB

Note:It is very skillful,make sure you are skillful.

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-11

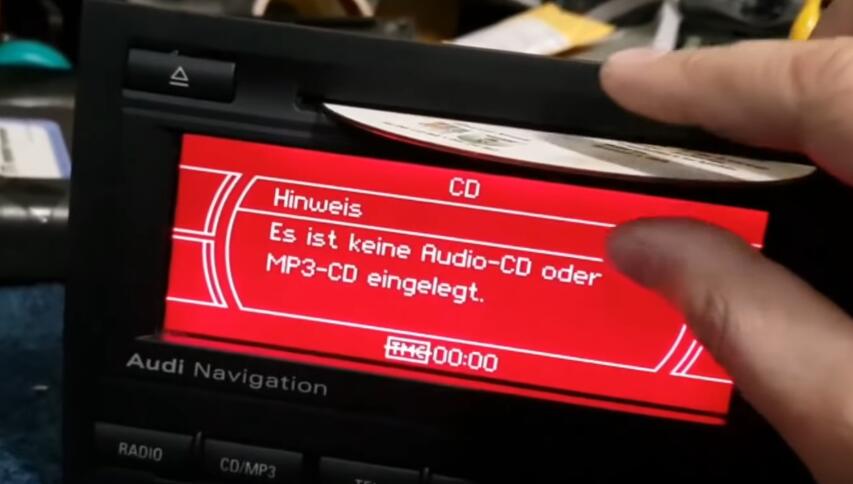

After then install PCB back into radio,and power on to input with code:0607

How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-12 How-to-DecodeReset-Audi-Navigation-RNS-Radio-AM29LV640-13



Done!
