How to Choose VAG Vehicle Diagnostic Data on ODIS Engineering

This instruction show you two ways to choose diagnostic data for VAG vehicle on ODIS Engineering.



Preparation:

Newest ODIS-E Engineering 12.1.1 & 9.0.4 Free Download

How to Install ODIS-Engineering 12.1.0 Diagnostic Software



Method 1: searching from below vehicle list if you know vehicle model

AUDI:

>AU21X: AU210/AU220(A1)/AU316(Q3)

>AU35X: AU35X(A3AB2)/AU324/AU325(TTNF)/AU714/AU715(R8)

>AU37X: AU37X(A3AB3)/AU334/AU335(TT3)

>AU48X: AU48X(A4/A5 B8)/AU416(Q5)

>AU56X: AU56X(A6 C6)/AU716(Q7)

>AU57X: AU57X(A6/A7 C7)

>AU64X: AU64X(A8D4)>AU724: AU724(R8NF)

>AU924: AU914/7(RSe)/AU924(R8e Tron2.0)

>MLBEVo: MLBEVo/AU736(Q7 NF)/AU49X(B9)/AU246(Q5 NF)/AU651(D5)

>MLBEVo_DolP: MLBEVo/AU736(Q7 NF)/AU49X(B9)/AU246(Q5 NF)/AU651(D5)



VW:

>MQBAB: MQB-A/B

>VN337E:E-Caddy

>VN35X: Caddy

>VN54X: Crafter NF

>VN75X:T5

>VN81X: Amarok

>VW019:1-Liter Auto

>VW120: Up! NSF

>VW21X: Suran

>VW23X: Gol

>VW250CS: Polo China

>VW2531CS:A-Entry China

>VW2532CN: Jetta A2 NF China

>VW25X: Polo

>VW26X: Polo GP(MQBAO)

>VW3111: Lavida China

>VW3112CN: New Bora China

>VW316C: Tiguan Lang China

>VW32X: New Beetle

>VW358C: Touran China

>VW36X: Golf 6

>VW36XCN: Golf 6 China

>VW37X: Golf 7

>VW37XCN: Golf 7 China

>VW37XCS:A+China

>VW411:New Midsize Sedan

>VW411CS:New Midsize Sedan China

>VW46XCN:Passat B7 China Lang

>VW47X:Passat B7

>VW48X:Passat B8

>VW51XCS:C-Modell Chian

>VW526:Touareg

>VW611GP3:Phaeton GP3

>VW62X:Phaeton NF

>VWVRTVPT:Konfigurationsdatei



SEAT:

>SE25X:Ibiza

>SE26X:SE26X

>SE35X:Altea/Toledo/Leon/Freetrack

>SE37X:PQ37

>SE41X:Exeo



Lamborghini:

>LB72X:LB724/LB725(Huracan)

>LB83X:LB83X(Aventador)



SKODA:

>SK25X: SK25X(A05-Fabia+Roomster)

>SK25X1: SK25X1(A-Entry)

>SK26X: SK26X(A06-Fabia ll)

>SK35X: SK35X(A5-Octavia+Yeti)

>SK37X: SK37X(A7-Octavia ll)

>SK46X: SK46X(B6-Superb)

>SK48X: SK48X(B8-Superb ll)

>SKSVW: SKSVW(Skoda China)



Method 2: How to use ODIS choose vehicle model if you can not find model from above list.

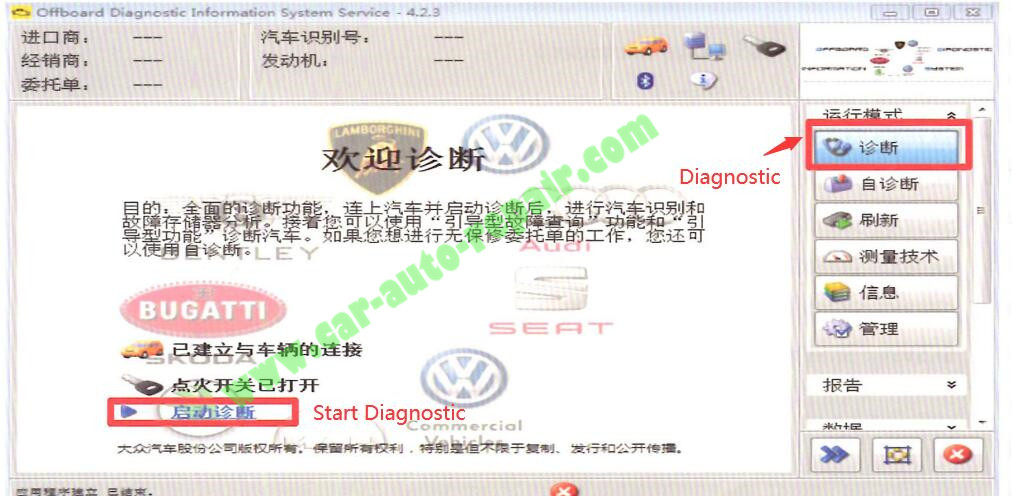

Running ODIS, then click “Start Diagnostic”–”Diagnostic”

How-to-Choose-VAG-Vehicle-Diagnostic-Data-on-ODIS-Engineering-1

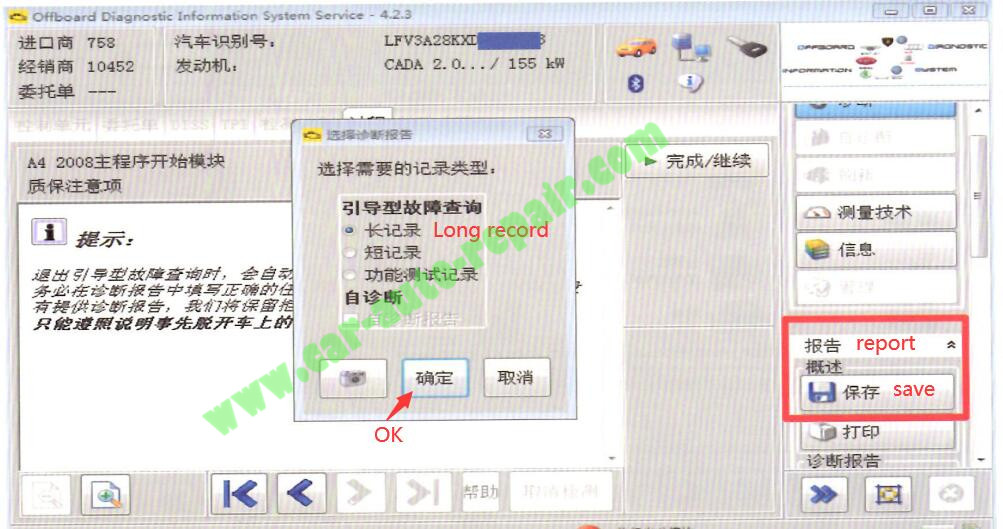

After diagnosis click “Report”—>”Save”–>”Long record”, then click “OK”

How-to-Choose-VAG-Vehicle-Diagnostic-Data-on-ODIS-Engineering-2

Save file

How-to-Choose-VAG-Vehicle-Diagnostic-Data-on-ODIS-Engineering-3

Open this file you saved via IE browser, check the name of ASAM project, AU48X is the data what we need.

How-to-Choose-VAG-Vehicle-Diagnostic-Data-on-ODIS-Engineering-4
