Cadillac XTS 2013 Steering Angle Sensor Calibration by Launch X431

After replacing the steering wheel related parts and sensors,in the event of a related failure, you need to perform calibration.So here I will show you the guide on how to use Launch X431 to calibrate steering angle sensor for Cadillac XTS 2013.For more repair case about Cadillac,please check here:Cadillac Repair Cases

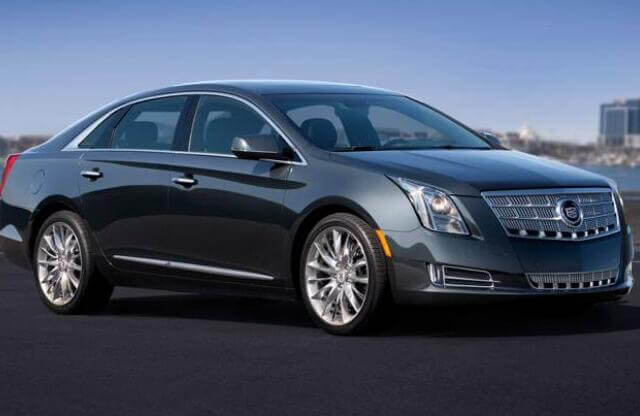

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-1



What You Need?

Launch X431 V+



Operation Procedures:

1) Choose SGM software, use “Automatically search”, find “Quick test”,to scan all system inside the car

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-2

2) Choose “EPS”

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-3

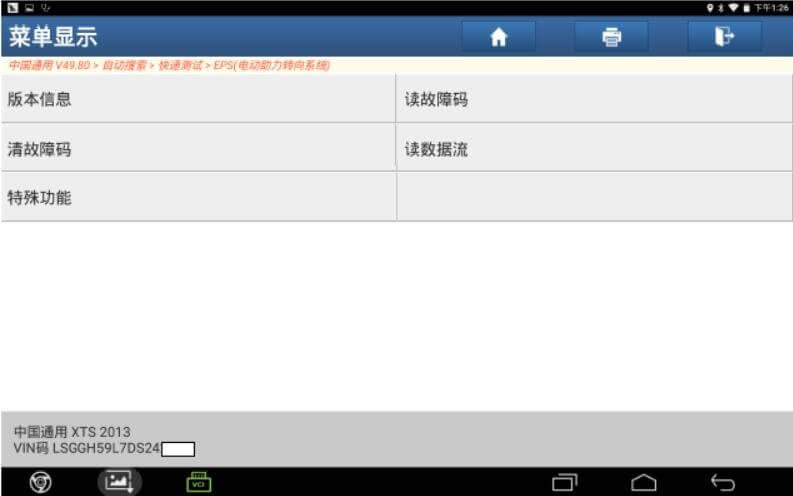

3) Choose “Special function”

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-4

4) Find “Center steering wheel angle sensor”, press “Yes” to continue

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-5

5) Start engine” to continue

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-6

6) Read the prompt”Slowly left, and then slowly to the right, last back to the steering wheel”

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-7

7) Function finished.

Cadillac-XTS-2013-Steering-Angle-Sensor-Calibration-by-Launch-X431-8
