BMW ICOM A1/A2 Firmware ICOM-FW03-15-04 Configure with ISTA 4.28.xx

This instruction show you guide on how to configure BMW ISTA 4.28.xx software with  new Firmware BMW_ISPI_ICOM-FW_03-15-04.msi for ICOM A1 & A2.



Requires:

2022.09 BMW Rheingold ISTA+ 4.37.22 4.23.14 ISTA-P 3.70 Free Download



Config Manual for ISTA 4.28.xx & BMW Standard tools

1.ICOM A1, A2, BMW ICOM update firmware to BMW_ISPI_ICOM-FW_03-15-04.msi

2.Log in to ICOM http://169.254.92.38:58000/

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-1

3.Go to LAN Setting and set Discover Mode to APIPA Save Changes and reboot ICOM.

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-2

4.On your Laptop go to Ethernet Properties and set (TCP/IPv4) to DHCP.

Connect your laptop and ICOM with Ethernet cable.

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-3

5.Open ediabas konfigurator2.0.0

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-4

Select ICOM (Ethernet) This will be used with ISTA 4.28.x.x For BMW Standard Tools check setting below. Under BMW Standard Tools Config

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-5

Click on OK

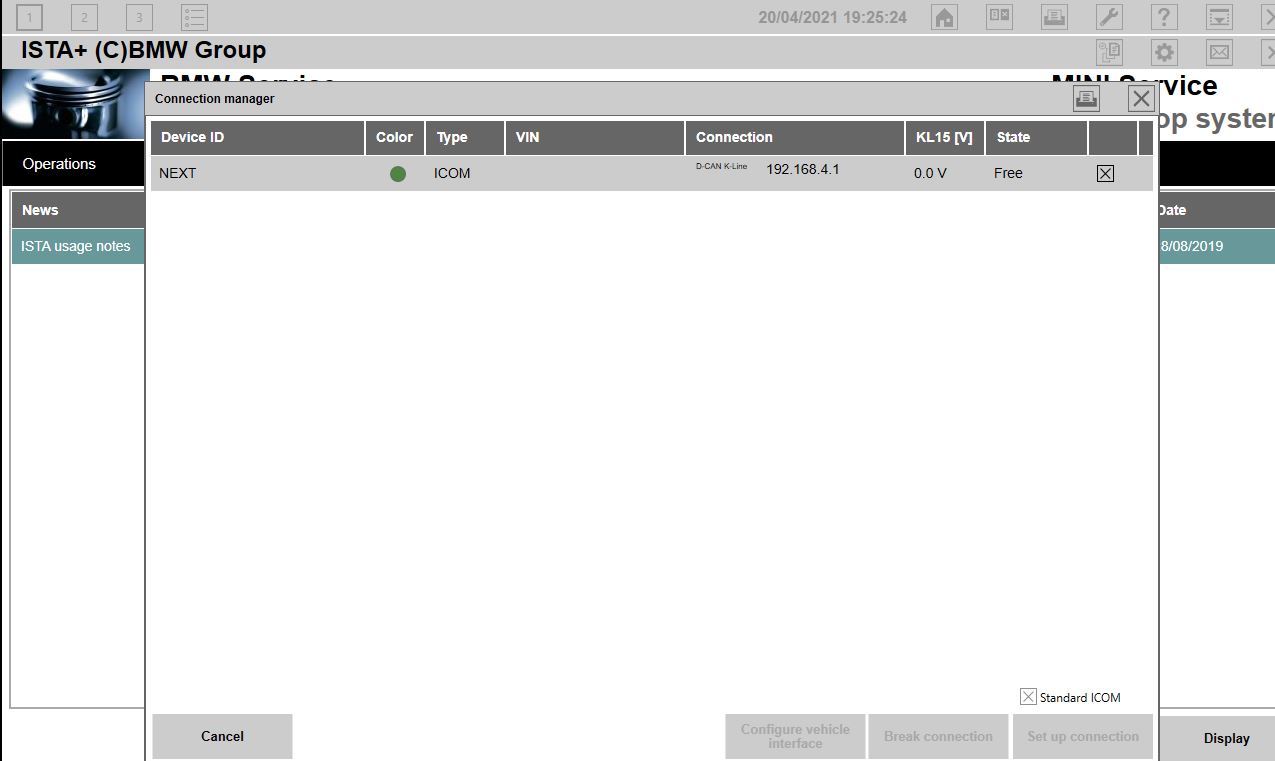

6.Open ISTA 4.28.xx and set Vehicle Interface to see below.

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-6

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-7

7.You Can now connect to your car E – F – G series. See that you ip has changed to 192.168.x.x This will not happening with INPA……



BMW Standard Tools Config

After you have configured everything for ISTA 4.28.xx and everything works as described above. You only need to set the (Configuration) Interface = to Remote as indicated below. EDIABAS will connect with IP 169.254.92.38

BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-8 BMW-ICOM-A1A2-Firmware-ICOM-FW03-15-04-Configure-with-ISTA-4.28.xx-9



This will be used for BMW Standard Tools

You can now connect with ITool Radar or Easy connect, and use INPA, NCS-Expert Tool, Tool32, WinKFP.
