Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera

This article show a guide on how to use Porsche PIWIS II to diagnose Fornt-end electronic & instrument cluster for Porsche Panamera.





Preparations:

Porsche PIWIS 2 V18.15 V17.500 Free Download

How to Install/Restore Porsche PIWIS 18.100 Universal Image





Procedures:

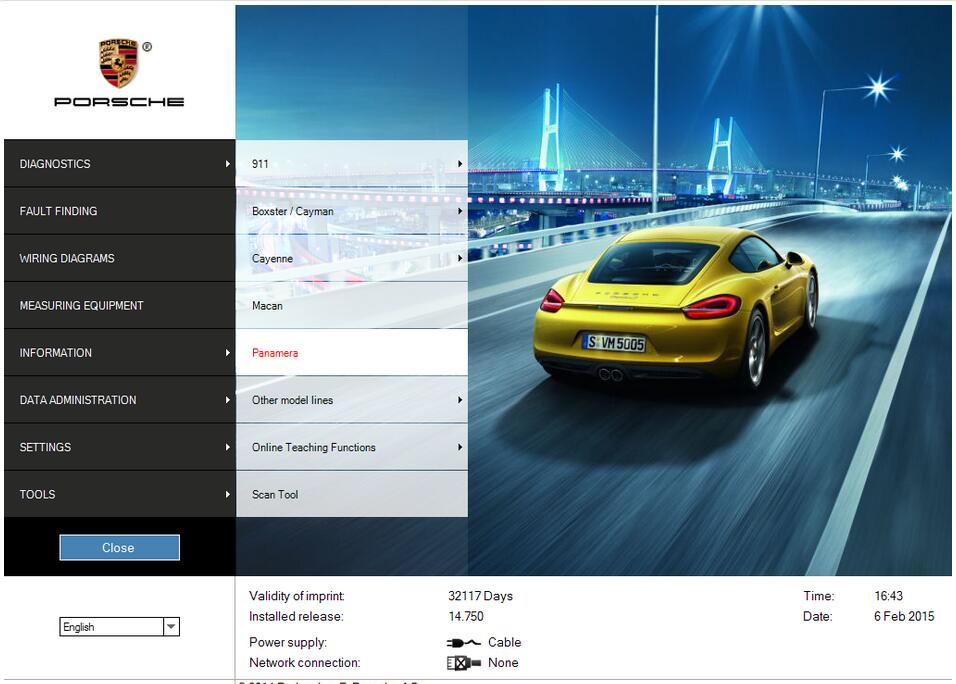

1.Click [DIAGNOSTICS]->[Panamera]

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (1)

Porsche PIWIS 2 system initializing

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (2)

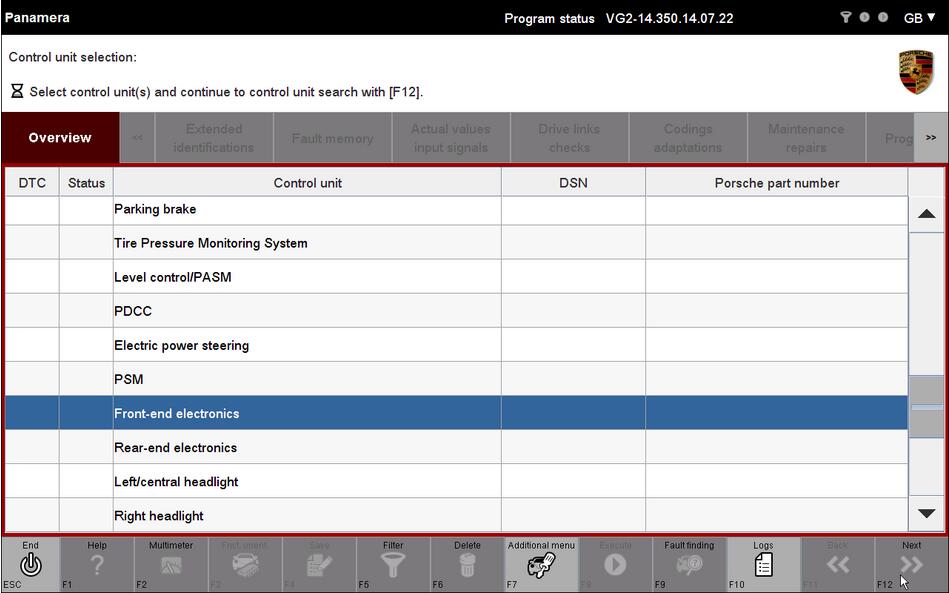

2.Select [Front-end electronics] then Click [Next] or press F12 to continue

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (3)

3.Press F11 to continue

Create a VAL? Yes with [F12], no with [F11]

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (4)

Control unit overview:

Control unit search has been completed.Select control units and select the required function via the menu.

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (5)

4.Click [Back] to return or press F11 to return

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (6)

5.Select [Instrument cluster] then click [Extended identifications]

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (7)

[Extended identifications]

Change and save identifications with[F8]

Porsche PIWIS II Diagnose Fornt-end Electronic & Instrument Cluster for Panamera (8)

Done!
