JLR SDD Clear DTCs for Land Rover L359 New Freelander

This article show the guide on how to use JLR SDD software clear the diagnostic codes for Land Rover L359 New Freelander.At first I describe it with the text and pics,and at end of article I will put the video guide.Your would better to watch the video for the details.



Prepares:

Install the JLR SDD software on your laptop.( JLR SDD Software Free Download)

JLR SDD hardware (JLR SDD Mangoose)



Steps:

After installing the JLR SDD software,run the software.

JLR SDD Clear DTCs for Land Rover L359 New Freelander (1)

Then software display the massage as below:

Communication Device Connection

Please ensure the following steps have been performed successfully.

The communication device has been connected to the tester and the vehicle

The vehicle battery status is OK.

The vehicle ignition is switched on.

Then Click “Auto VIN Read”

JLR SDD Clear DTCs for Land Rover L359 New Freelander (2)

The software will read the VIN automatically

JLR SDD Clear DTCs for Land Rover L359 New Freelander (3)

The Vehicle information show as below:

Model:Land Rover L359 New Freelander

Engine:DW12-22 DIESEL(Low poer)

Model Year:2010

VIN:SALFA2BB5AH172120

JLR SDD Clear DTCs for Land Rover L359 New Freelander (4)

Select “Powertrain”àSelect”Engine system”àSelect”Engine coding”—>Select”Continue”

It will show the vehicle specification

JLR SDD Clear DTCs for Land Rover L359 New Freelander (5)

Select “Service Functions”

Select “Continue”

Loading Recommended Candidates

Please wait…

After the progress bar complete,select the”China” on the vehicle specification options

Click “save”

JLR SDD Clear DTCs for Land Rover L359 New Freelander (6)

Please wait…

The software will show some recommended information

JLR SDD Clear DTCs for Land Rover L359 New Freelander (7)

Select the “Coplete vehihcle-Clear all stored diagnostic trouble codes” to “run”

JLR SDD Clear DTCs for Land Rover L359 New Freelander (8)

Click “Continue”

Tool Description

Clearing DTCs on vehicle.If you are running a diagnosis session DTCs can be re-read by executing the re-read all stored diagnostic trouble codes candidate.

Please wait…

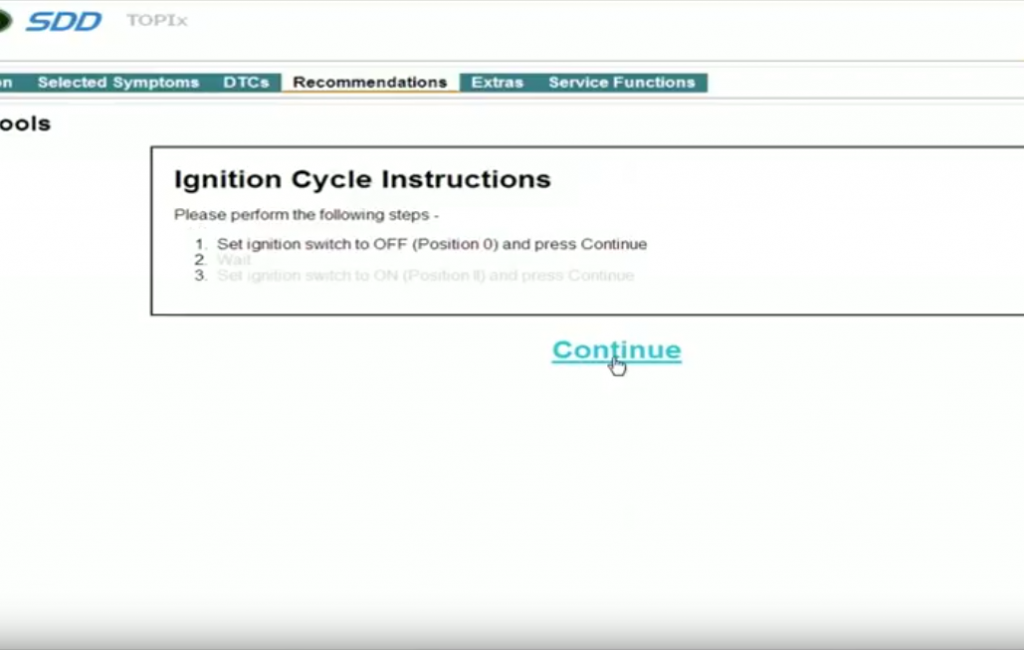

Ignition Cycle Instructions

Please perform the following steps

Set ignitions switch to OFF (position 0) and press Continue

Wait

Set ignition switch to ON (Position 2) and press Continue

Click Continue

Please wait…

JLR SDD Clear DTCs for Land Rover L359 New Freelander (9)

Select the “Session” on the menu bar

Click to rerun data collection

JLR SDD Clear DTCs for Land Rover L359 New Freelander (10)

Click the “DTCs” on the menu bar to view DTCs read from vehicle.

JLR SDD Clear DTCs for Land Rover L359 New Freelander (11)

Done!

JLR SDD Clear DTCs for Land Rover L359 New Freelander Video Guide:
