Here is the instruction show you guide on how to remove differential gear for Fendt 900 Vario COMIII.
Preparations:
NOTE: The work was carried out on a model for greater clarity.
Carry out the following tasks on both sides.

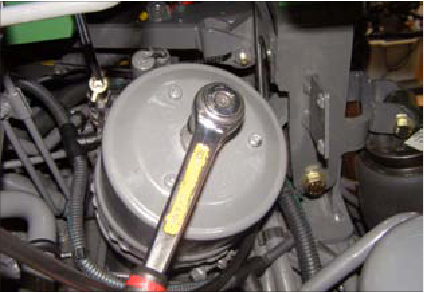

Unscrew the hand brake release screw on the Tristop cylinder by turning counterclockwise until it becomes noticeably more difficult to turn, then tighten as far as it will go with a spanner (SW24)

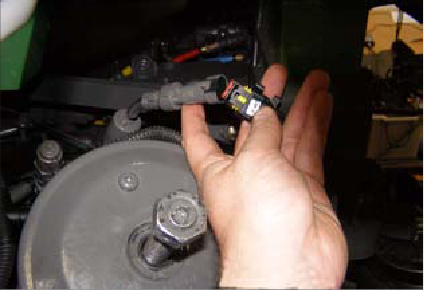

Unplug the air hoses and sensors
Remove Tristop cylinder

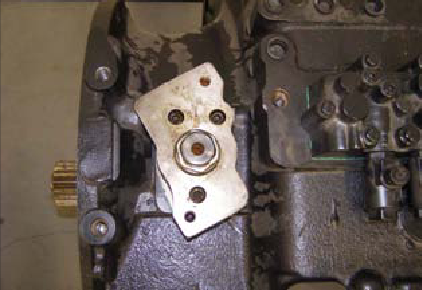

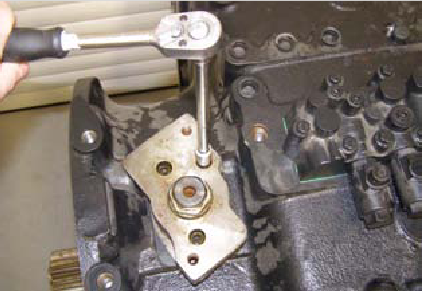

Remove lower part of brake cylinder

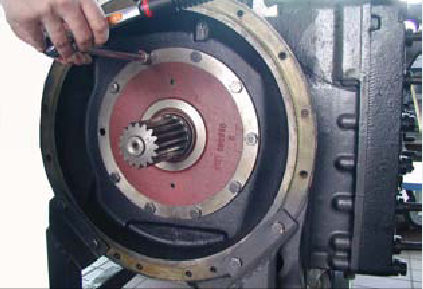

Remove brake plate hex bolts

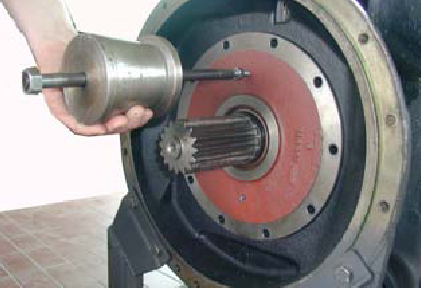

Remove brake plate using a slide hammer puller

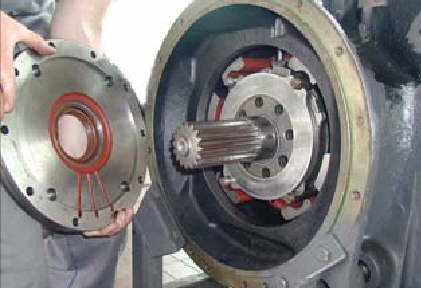

Remove brake plate

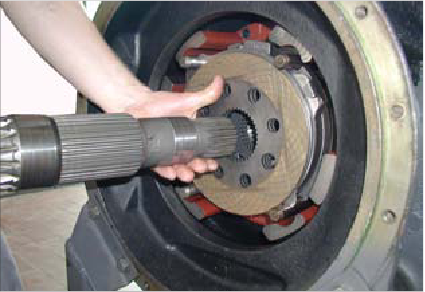

Remove shaft

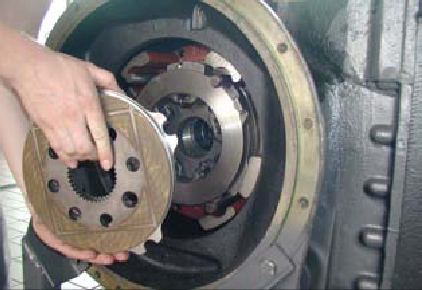

Remove front disc pack

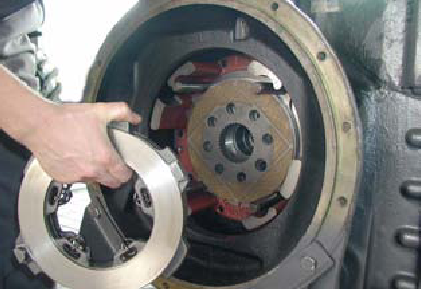

Remove actuator plate and rear disc pack

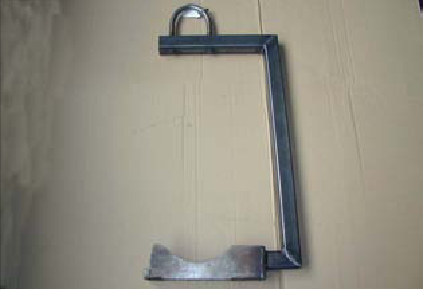

Attach hoisting gear to differential gear

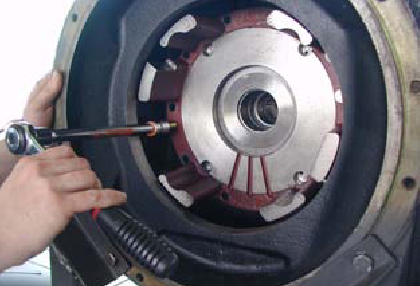

Press off bearing flange with jack screws

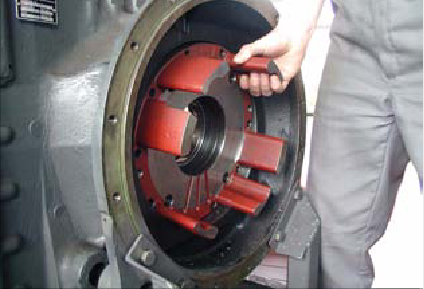

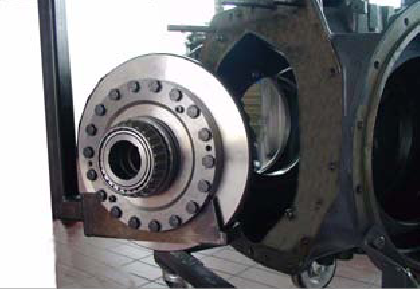

Remove bearing flange
Remove differential gear using the hoisting gear
