This instruction show you guide on how to release park brake manually for CASE IH 20 series Axial-Flow combine.
Related Contents:
2025 CNH EST 9.13 9.2 New Holland Diagnostic Software Free Download
Notice:Remember to use the “Tow Valve” before resorting to using the “Manually Releasing” process.
IMPORTANT: Remember that the parking brake can not be engaged using the operator’s controls once manually released.
If it is not possible to release the parking brake electrically, it can be released manually. To
release the parking brake manually, proceed as follows:
1 Raise the header and engage the header safety latch. Stop the engine.
2 Block the wheels adequately to prevent the combine from rolling.

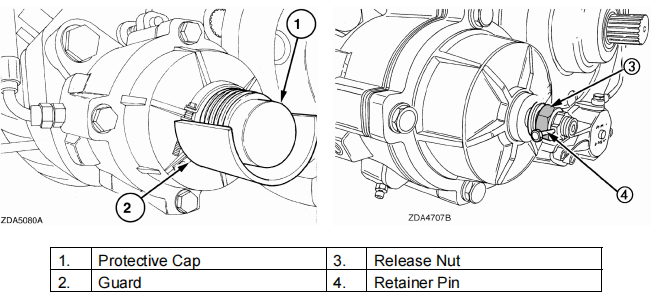

3 Remove guard, (2) and protective cap (1).
4 Remove the retaining pin (4).
5 Thread the release nut (3) ON, (pulling the shaft out of the housing) until the piston is bottomed.
