How to Program a Spare Key via AVDI for Renault Clio V

In this instruction,car-auto-repair.com will show you guide on how to use AVDI diagnostics to do a spare key programming for Renault Clio V. More key programming cases, please refer to all keys lost programming .

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-1

Software used:

RR022

AMS- Annual Maintenance Subscription



Hardware used:

AVDI – Abrites Vehicle Diagnostic Interface

CB012 Cable Set



Procedures:

Connecting AVDI to the OBD.

Starting the Renault Online software.

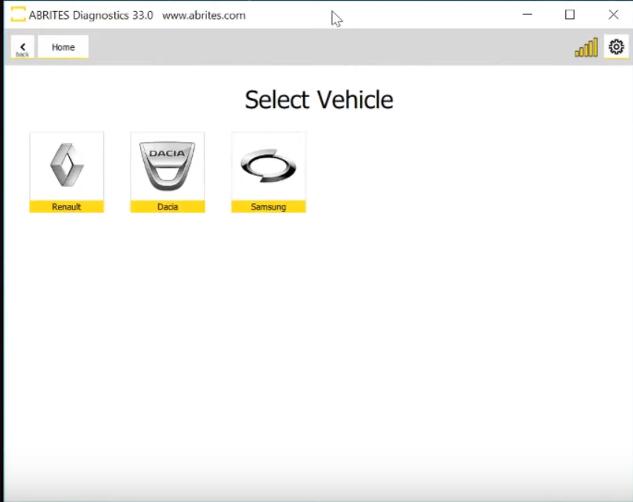

Active AMS and Internet connectivity are required for the procedure. Select the brand and continue with model selection.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-2

Click “Continue”

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-3

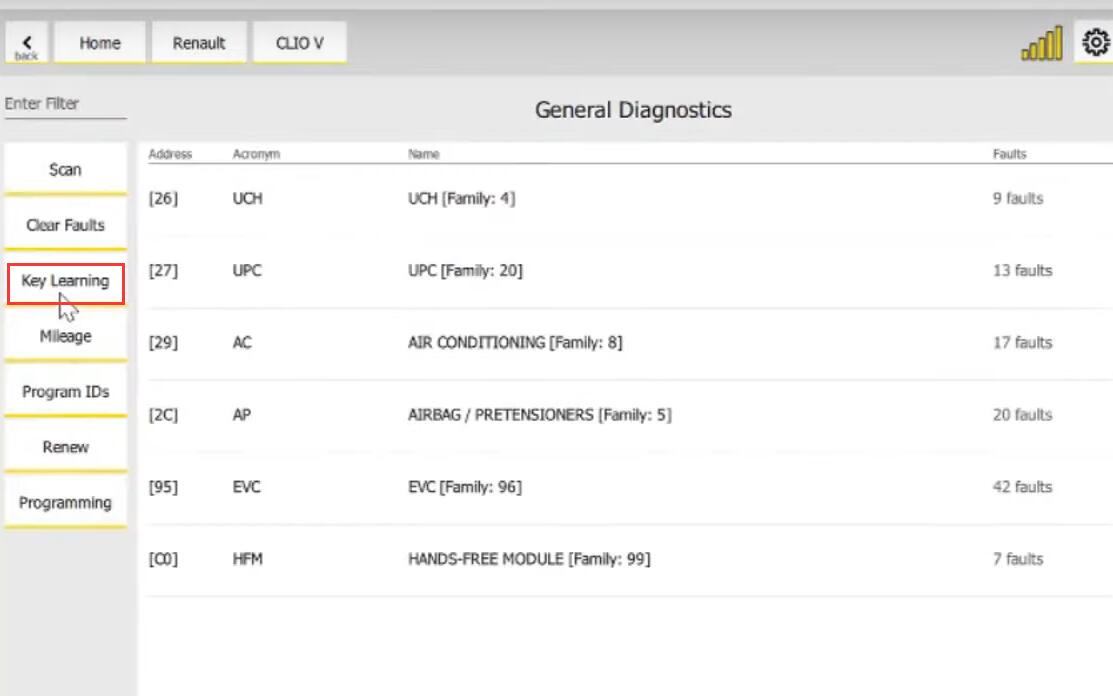

Click “Key Learning”

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-4

Click “Learn Keys”

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-5

Press and hold “START” to begin or BACK from the toolbar to cancel

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-6

For the selected vehicle it is required to use CB012 adapter.Please connect it according to the user manual and start from the beginning.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-7

Connecting CB012 to the internal CAN BUS of the car and then to the AVDI.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-8

PIN 17 on the UPC module is CAN H(white cable)

PIN 5 on the UPC module is CAN L(green cable)

Restarting the procedure from the model selection step. Select vehicle model, continue and then click “Key learning”, Press and hold “START”

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-9

Important! If you are going to add a new card do the following:

For a KEYLESS CARD: Put the card on the emergency slot. Click arrow on the right down side.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-10

Read following carefully, then click arrow

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-11

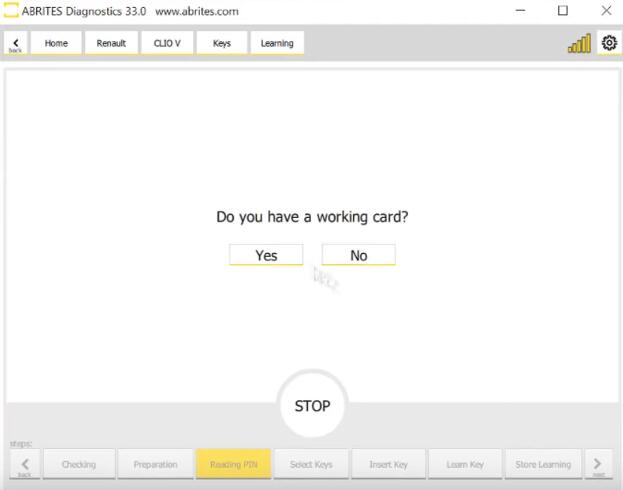

Waiting for PIN reading, the procedure takes 3minutes.Click “Yes”

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-12

Switch IGNITION OFF and click OK to continue.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-13

Until the PIN is founded.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-14

Select number of keys to learn, click arrow

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-15

Holding the card near the emergency slot will learn it.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-16

Both the new and the working card need to be learned.

How-to-Program-a-Spare-Key-via-AVDI-for-Renault-Clio-V-17

The procedure has completed, time to check if the new card is starting the car.
