Great Wall H5 Delphi 48 Chip Immobilizer Key Programming

Great Wall H5 include diesel and petrol two models,but both using normal 48 chip.This instructions show you guide on how to do key programming for it.





Great Wall H5 petrol model:

It work with Delphi immobilizer system,the immobilizer box made by Delphi.You need get immobilizer PIN code before programming.If you use X300 or some other programmer,it may can not get correct PIN.

Great Wall H5 Delphi 48 Chip Immobilizer Programming (1)

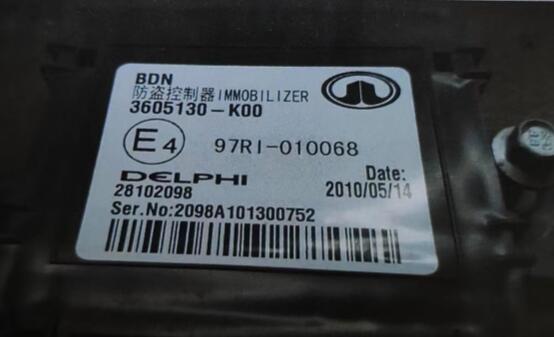

Another choice is immobilizer box,we need to assemble it and remove immobilizer chip.

Open immobilizer box cover,find the chip model:3P8Y,3PWD,3PJV or 3PMY.

You may find one of them,it is EEPROM with 6 pins.

Great Wall H5 Delphi 48 Chip Immobilizer Programming (2)

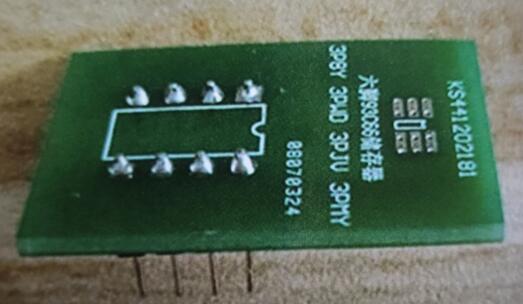

Put the 6 pins EEPROM chip on VVDI or X300 adapter,then select 93C66 to read out data

Great Wall H5 Delphi 48 Chip Immobilizer Programming (3)

Then PIN code stored at line 040,second and third Byte 316B

Great Wall H5 Delphi 48 Chip Immobilizer Programming (4)

We need transfer 316B by XOR calculate to final PIN code 45C0



Great Wall H5 Diesel Model:

Remove engine ECU,then disassemble ECU cover

Find the chip 95C320,after then use normal programmer to read out data from CHIP 95C320

Open the EEPROM data by editor,then locate line 040,line 060 and line 080

You will find PIN is A743

Great Wall H5 Delphi 48 Chip Immobilizer Programming (5)

Now you have got PIN code,so you are able to use programmer to do key programming.



Summary,if you find the car models like Great Wall H5 immobilizer system work on normal 48 chip and Delphi immobilizer system,the steps same as.
