Ford Mondeo Rear Brake Pads Repalcement by X431

Here comes the guide on How to replace Ford Mondeo rear brake pads by x431.At First part,you will learn it by text with pics.And for more detail info,you would better to watch the video guide at end of article.Hope it helps!



Procedures of Ford Mondeo Rear Brake Pad Repalcement:

Connec the x431 pro to the vehicle and enter the menu to select Ford

Select “Ford V46.50”

Note:This program can test differen Ford models up to 2017.It currently include PCM,ABS,4WAL,RCM,EATC,ECS,IABM,RAP,PAM,4X4,4WAS,CTM,OTC,ICM,PATS,ARC,LCM,DDM…

2017.10.31 Ford Mondeo Rear Brake Pads Repalcement by X431

Select “Automatically Search”

Turn on the ignition switch,select “OK”

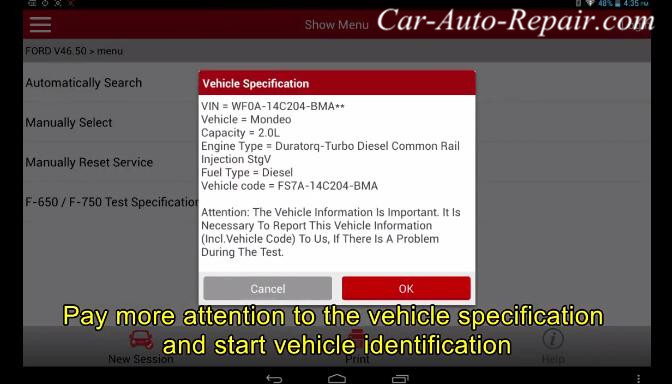

Then the device screen show vehicle specification,include:VIN,model,capacity,Engine Type,Injection StgV,Fuel Type,Vehicle code.

Attention:The vehicle information is important.It is necessary to report this vehicle information(Incl vehicle code) to us,if there is a problem during the test.

Tab “OK”

Ford Mondeo Rear Brake Pads Repalcement (2)

Processing,please wait…

Select “Transmission=Automatic”,please be patient,it will scan the vehicle system.

It will take a few minutes to scan,please wait.

Select “ABS/TCS”

The it will show the system info on the screen,include:

Model:ABS/TCS

Type:Standard Equipment module

Moudle information:00006EFF

Vehicle incode:00041c7

Select “OK”

Select “Special Function”

Select “Maintenance Mode”

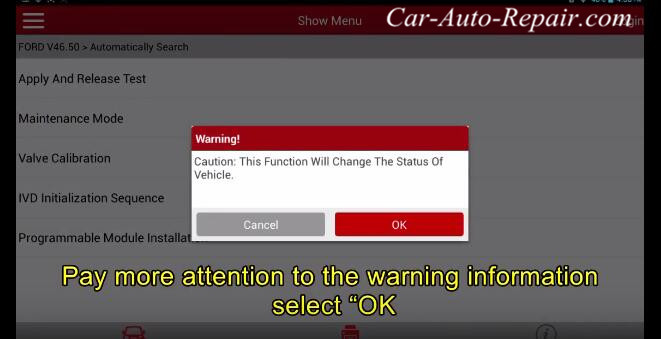

The screen will prompt the info

“Warning:This function will change the status of vehicle”

Pay more attention to the warning information,select “OK”

Ford Mondeo Rear Brake Pads Repalcement (3)

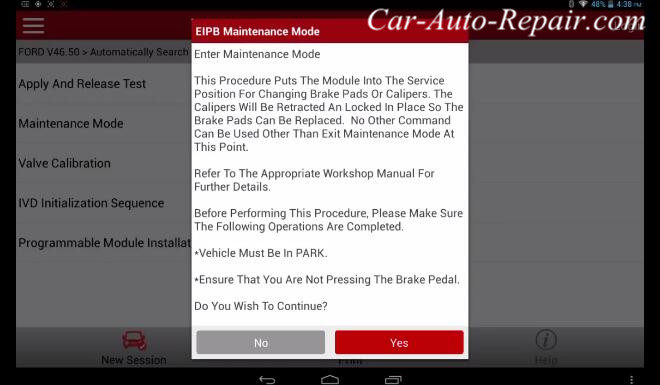

Now,you will see below massage:

EIPB Maintenance Mode

Enter Maintenance Mode

This Procedure puts the module into the service position for changing brake pads or calipers.The calipers will be retracted a locked in place so the brake pads can be replaced.No other command can be used other than exit maintenance mode at this point.

Refer to the appropriate workshop manual for further details.

Befor performing this procedure.Please make sure the following operations are completed.

Vehicle must be in park

Engine that you are not pressing the brake pedal.

Do you wish to continue?

Select “Yes”

Ford Mondeo Rear Brake Pads Repalcement (4)

Turn the ignition to “ON”,but do not start the engine,then select “ok”

Select “OK”,it start to do service work.

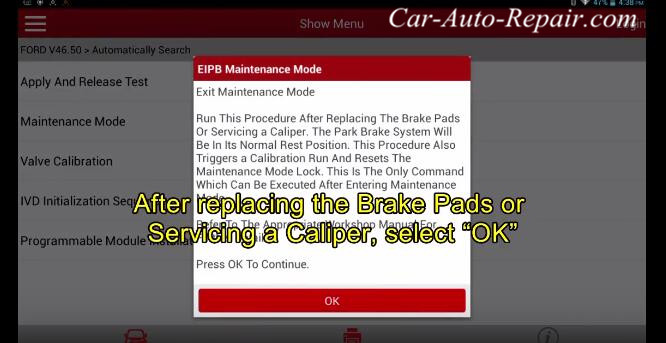

After replacing the brake pads or servicing a caliper,select “OK”

Ford Mondeo Rear Brake Pads Repalcement (5)

All procedure are completed!



Ford Mondeo Brake Pads Replacement Video Guide:
