DAF Truck AS-Tronic Lite 6AS1000 Transmission Automation Module Disassembly Guide

This illustration show you guide on how to disassemble DAF truck AS-Troninc Lite 6AS1000 Transmission automation module.



Related Contents:

DAF Davie XDc II Runtime 5.6.1 Software Free Download



Procedures:

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-1

Cable harness connector allocation 25.010:

E28 Level switch connector

E4 Clutch actuator connector

E2 Transmission cable harness connector

E31 Mount travel sensor connector

E30 Select travel sensor connector

E32 Input speed sensor connector



1 Remove clip 01.534.

2 Unlock and unplug connectors E30, E31, and E32.

3 Remove screw 01.530.

4 Remove shackle 01.520 and toothed washer 01.524.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-2

5 Unlock and unplug connector E28.

6 Remove screw 01.510.

7 Remove clamp 01.500.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-3

8 Remove cable clip 01.670 and 01.690.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-4

9 Unlock and unplug connector E2.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-5

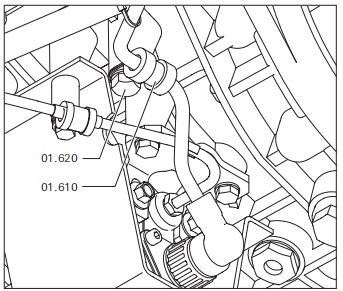

10 Remove screw 01.620.

11 Remove clamp 01.610.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-6

12 Unlock and unplug connector E4.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-7

13 Remove remaining cable clips on cable harness if necessary.

14 Remove the cable harness from the transmission.

DAF-Truck-AS-Tronic-Lite-6AS1000-Transmission-Automation-Module-Disassembly-Guide-8

More repair cases for DAF truck,please refer to:DAF Truck Repair
