VW Tiguan Bleeding ABS Brake Pump By X431

Here comes the guide on how to VW Tiguan ABS Brake Pump bleeding by X431 tool. Hope this article is helpful to you.

VW Tiguan Bleeding ABS Brake Pump By X431 (1)

Vehicle informaiton:

Vehicle model:VW Tiguan

Year:2011

VIN:LSVUC65N9B26*****

Made:China



Note:Befor starting Bleeding ABS pump,pls perform below operation

#1 Park the vehicle with parking brake.

#2 For manual transmission,turn the gear shift lever to neutral gear position.

For automatic transmission,turn the gear shift lever to “P” position

#3 Press clutch pedal,then release.



Procedure of Bleeding ABS sytem for VW Tiguan:

Note:Here we use x431 Chinese version,the operation of x431 english version is same.

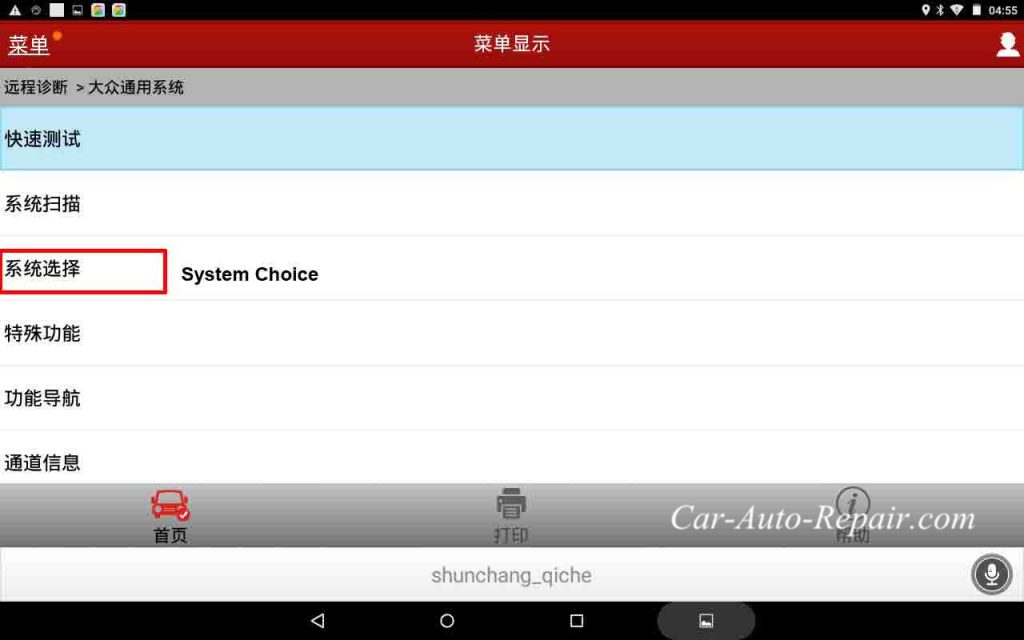

Step 1:Select “VW” up v27.08–>Select ”VW Universal System”–>Select “System Choice”

VW Tiguan Bleeding ABS Brake Pump By X431 (1)

Step 2:Select “03 braking system”

VW Tiguan Bleeding ABS Brake Pump By X431 (3)

Then the screen will show the braking system info as below:

VW Tiguan Bleeding ABS Brake Pump By X431 (3)

Step 3:Select “04 System Basic Adjust”

VW Tiguan Bleeding ABS Brake Pump By X431 (5)

Step 4:Select “Show as List”

VW Tiguan Bleeding ABS Brake Pump By X431 (5)

Step 5:Check the option of”001 ABS System bleeding”

VW Tiguan Bleeding ABS Brake Pump By X431 (5)

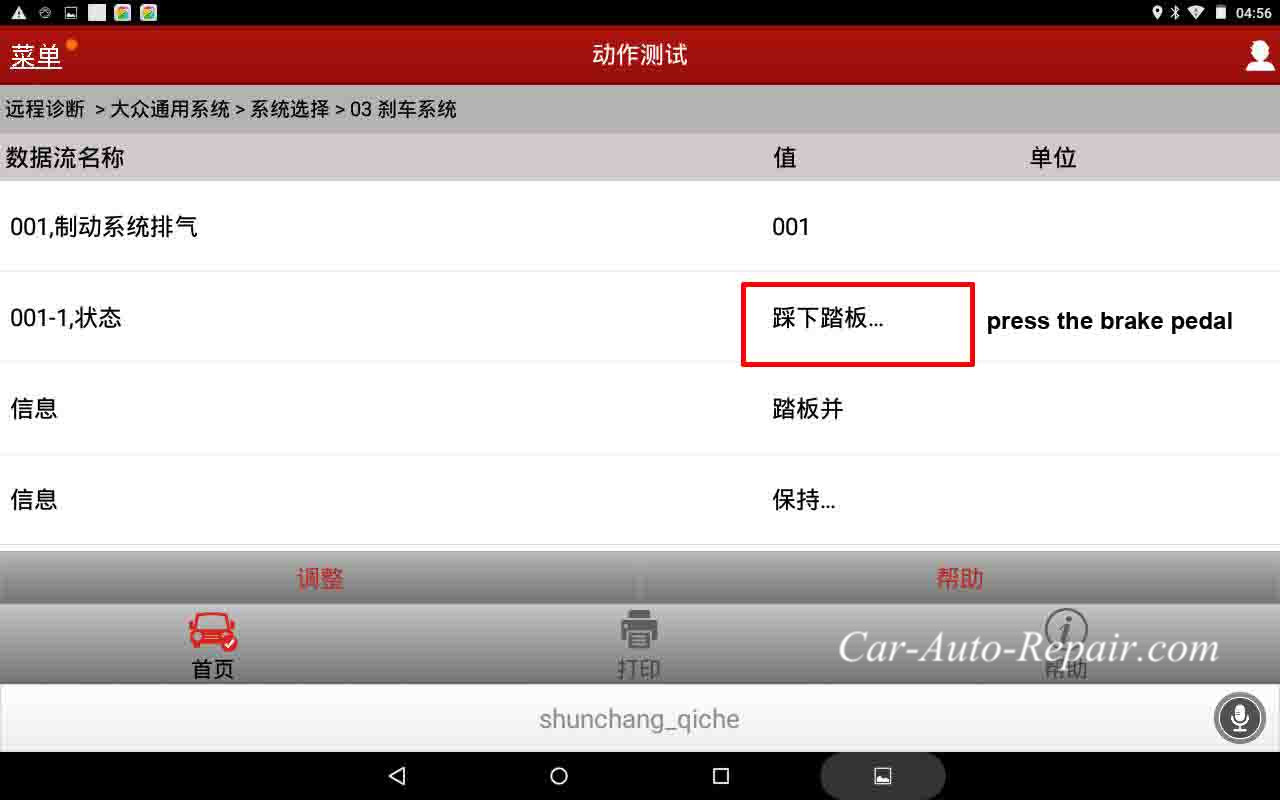

Step 6:Follow the screen guide to press the brake pedal,then click “adjust”

VW Tiguan Bleeding ABS Brake Pump By X431 (5)

Wait about 10s,and then click “adjust”

VW Tiguan Bleeding ABS Brake Pump By X431 (9)

Screen show “release the brake pedal and click adjust”

VW Tiguan Bleeding ABS Brake Pump By X431 (10)

Bleeding air form long pipeline to short pipeline,here we need to open the rear right wheel bleeding bolt,then click adjust option.

VW Tiguan Bleeding ABS Brake Pump By X431 (10)

Screen show wait 10s,then click adjust option.

VW Tiguan Bleeding ABS Brake Pump By X431 (10)

Show close bleeding bolt,and then click adjust option.

VW Tiguan Bleeding ABS Brake Pump By X431 (10)

Other 3 wheels brake pump bleeding air repeat the step5 to step 6.Until the exhaust bolt does not emit gas, the brake system restore then complete operation.
