Remove and Replace Front/Steering Console for JCB 3CX Backhoe Loader

This instruction show you guide on how to remove and replace front/steering console for JCB 3CX,4CX,214e,214,215,217 & VARIANTS.



Related Contents:

2024 JCB ServiceMaster 4 v24.3.1 Free Download for Win 10 Win11

2017 JCB Parts Plus+ and Repair Service Manual Free Download



Removal

1 Park the machine on firm level ground, apply the parking brake. Lower the loader arms and excavator to the ground, switch OFF the engine and remove the starter key.

2 Disconnect the battery.

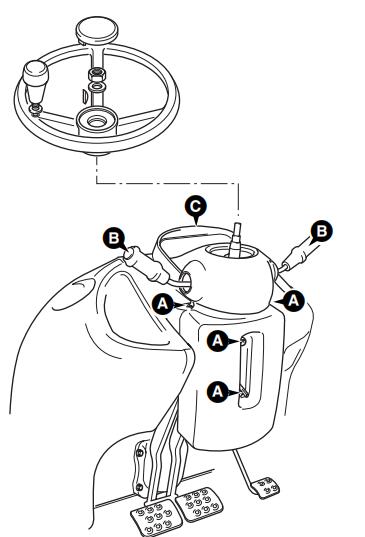

3 Working in the cab, remove the steering wheel as shown.

4 Remove the fixings A (4 off) at positions shown and take off the steering column pedestal cover.

5 Remove the column switches B.

6 Remove the instrument panel C.

7 Remove the fixings D (4 off) securing the front console panel at positions shown and then carefully lift up the front console clear of the steering column assembly.

Remove-and-Replace-FrontSteering-Console-for-JCB-3CX-Backhoe-Loader-1



Replacement

Replacement is the reverse of the removal sequence.

Take care when removing/replacing the console panel to ensure that harnesses do not become snagged and that no other connections have been disturbed.

After re-fitting, operate the front/steering console controls and check they all function correctly.

Remove-and-Replace-FrontSteering-Console-for-JCB-3CX-Backhoe-Loader-2
