Mitsubishi Outlander 2007 All Key Lost Programming by AVDI Programmer

This instruction show you guide on how to use AVDI programmer to do all key lost programming for Mitsubishi Outlander 2007 all key lost.And for more AVDI key programming,check here:AVDI Programmer Test Projects

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (1)

Mitsubishi Outlander 2007 All Key Lost Programming Procedures:

Start off by opening the Abrites Diagnostics for Mitsubishi

Connecting to the interface,please wait…

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (2)

Trying to identify vehicle automatically…

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (3)

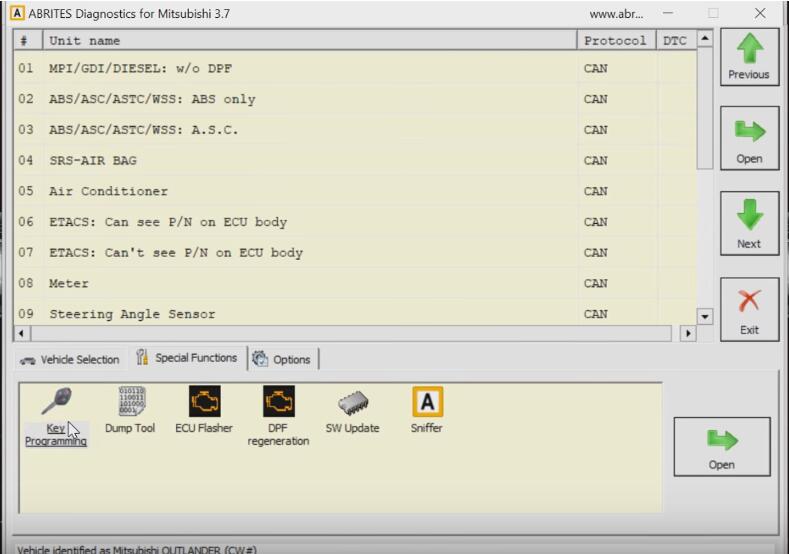

Select “Special Function”–>”Key Programming”

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (4) Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (5)



It will show you the vehicle information as below,please click “Next” to continue

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (6)

Select “Key registration” and click “Next”

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (7)

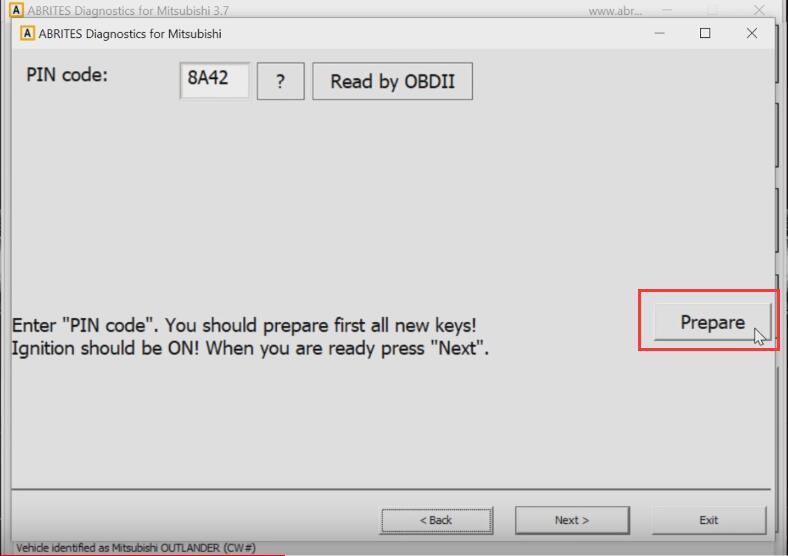

AVDI will read out the PIN code automatically,click “Prepare”

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (8)

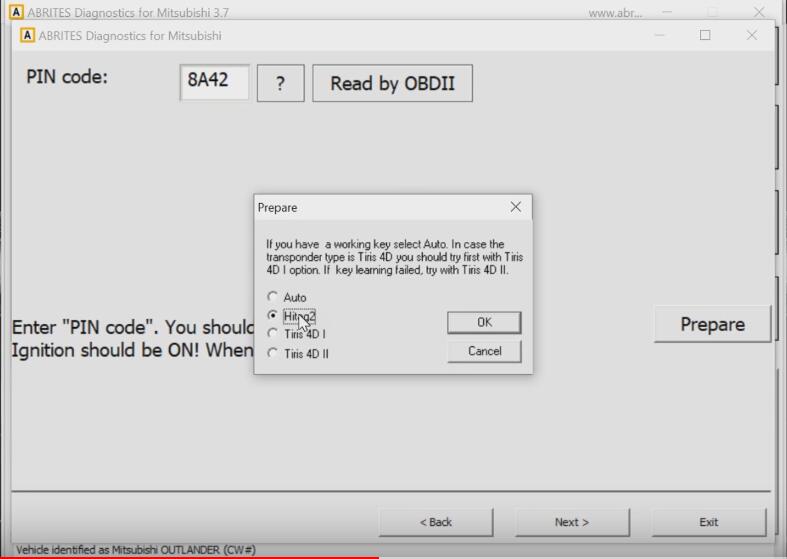

Select “Hitag2”

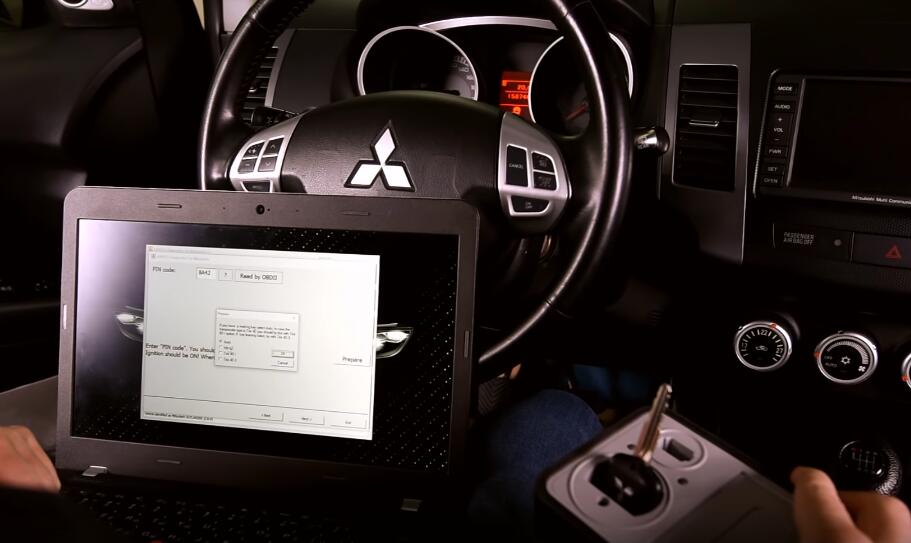

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (9) Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (10)



Click “OK” to continue

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (11)

And click “OK”

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (12)

The key can now be programmed

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (13)

Insert the key into ignition and turn to “ON” position

Key registered.

If you want program next key,inert into ignition and turn ON

And press “Next” within 30 seconds.

Otherwise wait for timeout to elapse.

Mitsubishi Outlander 2007 All Key Lost Programming by AVDI (14)

After 30 seconds waiting,the procedures is complete,check if the key is working.
