LCD Instrument Cluster Retrofit Coding by JLR PATHFINDER for Range Rover L494

In this example,car-auto-repair.com show you guide on how to do coding for Range Rover L494 2017 LCD instrument cluster retrofit by JLR PATHFINDER.More about Land Rover topics,please check it here:Land Rover trouble repair

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-1



Preparations:

JLR Pathfinder Free Download and Installation

How to Install Jaguar & Land Rover JLR Pathfinder on Win7 and Win 10



Procedures:

Connect JLR PAHTFINDER DoIP interface to Range Rover L494

After vehicle identification,click “ECU Diagnostics”

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-2

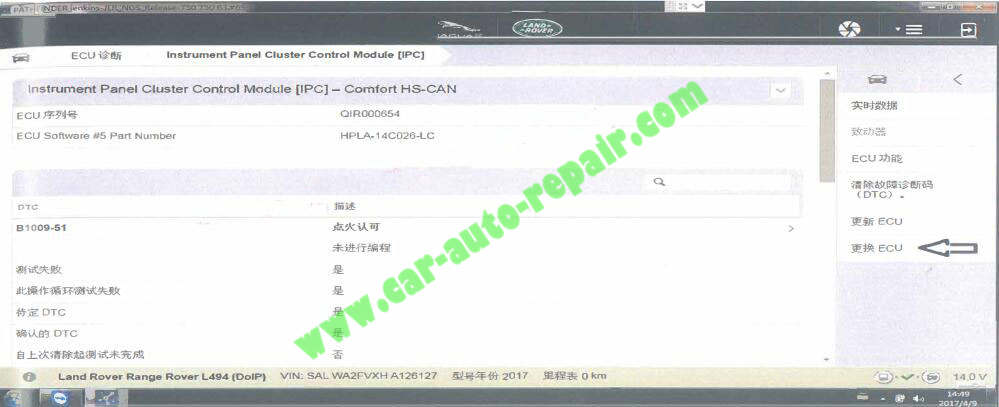

Select “Instrument Panel Cluster Control Module (IPC)”,the click “ECU Replace”

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-3

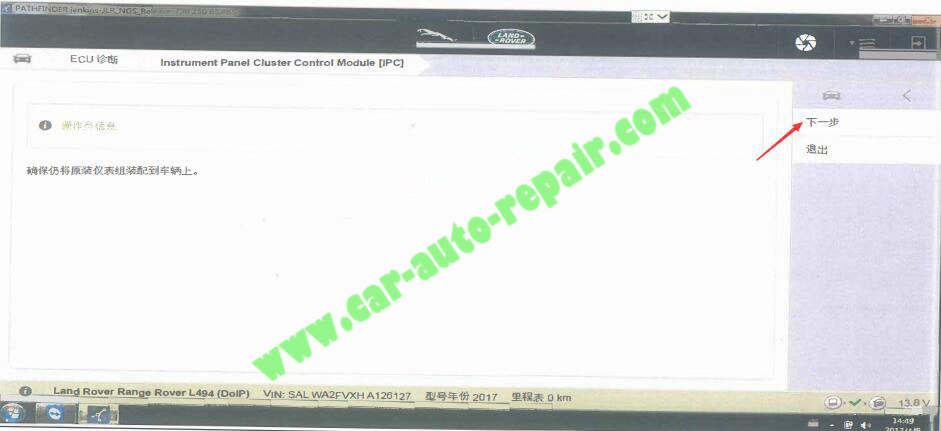

Click “Next”

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-4

Wait for process….

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-5

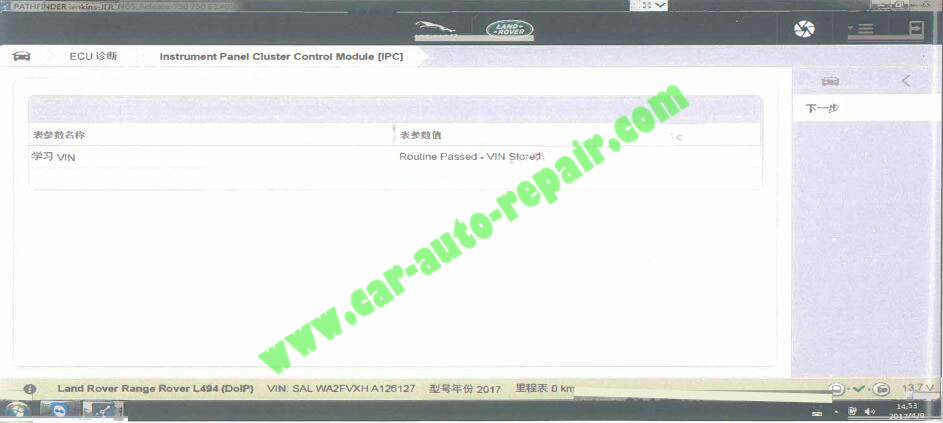

Click “Next”

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-6

Now configuration coding successfully.

Get a B100E-64 error code,you are available to install a video harness for your new instrument.

LCD-Instrument-Cluster-Retrofit-Coding-by-JLR-PATHFINDER-for-Range-Rover-L494-7

Done!
