How to Use Volvo PTT to Program ECU

This article show the guide on how to use Volvo PTT to program ECU.I will introduce it with pictures and text.Hope this mini guide will give your some enlightenment.



Preparation:

2024 Volvo TechTool PTT 2.8.240/2.8.150/2.7.116 All Version Free Download

Volvo Diagnostic Kit (88890300)

Volvo VOCOM 88890300 Diagnostic Kit



Procedures:

Connect the diagnostic tool to the vehicle,then run the Volvo PTT.

After warning massage display,click “Yes”

Waiting for system reading unit information.

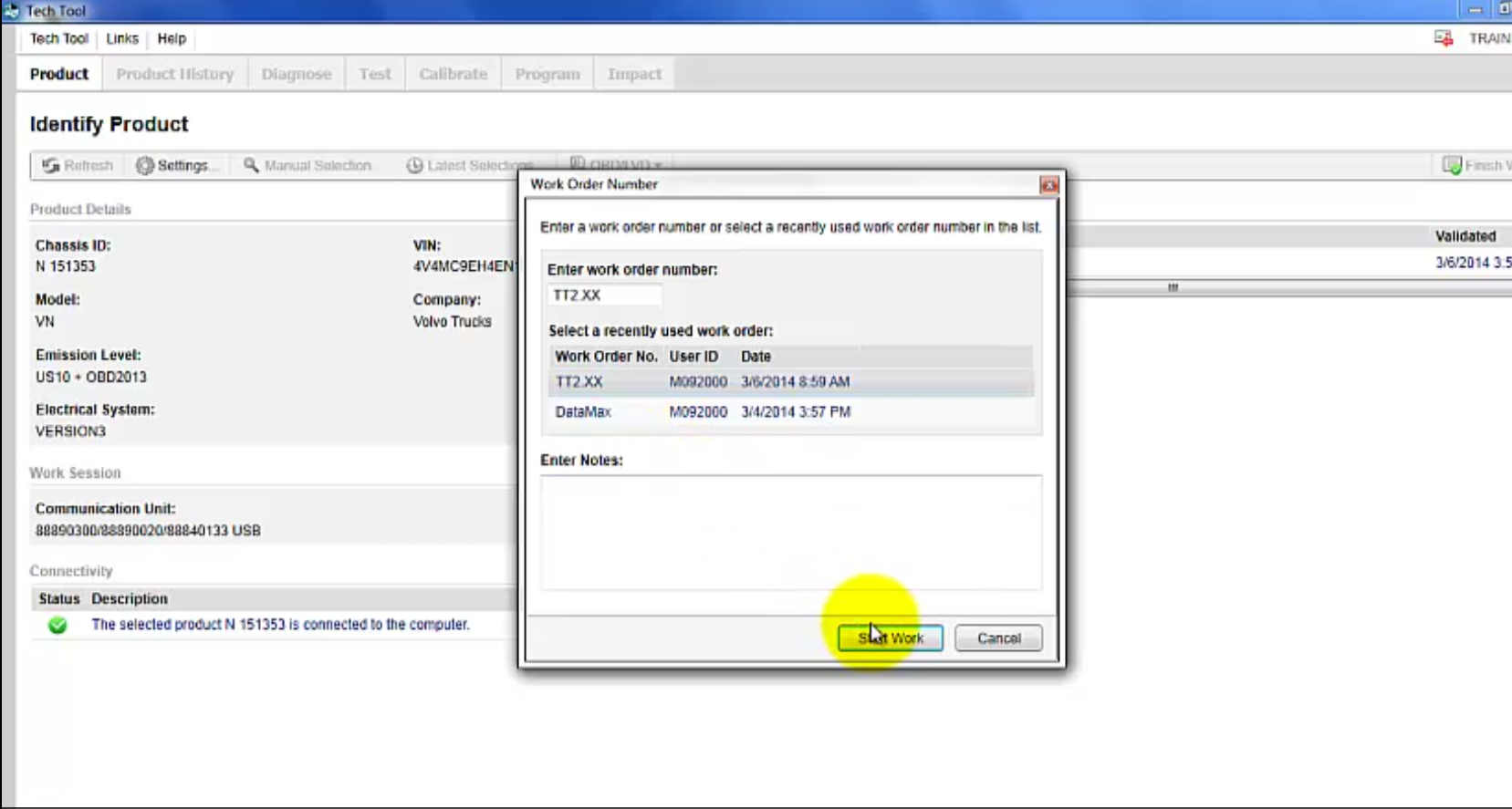

Then you will see the “Work Order Number” window

Move the mouse to click “TT2 XX”,then click “Start Work”

How to Use Volvo PTT to Program ECU-1

Refreshing central data…waiting

Click the menu bar option “Program”

How to Use Volvo PTT to Program ECU2

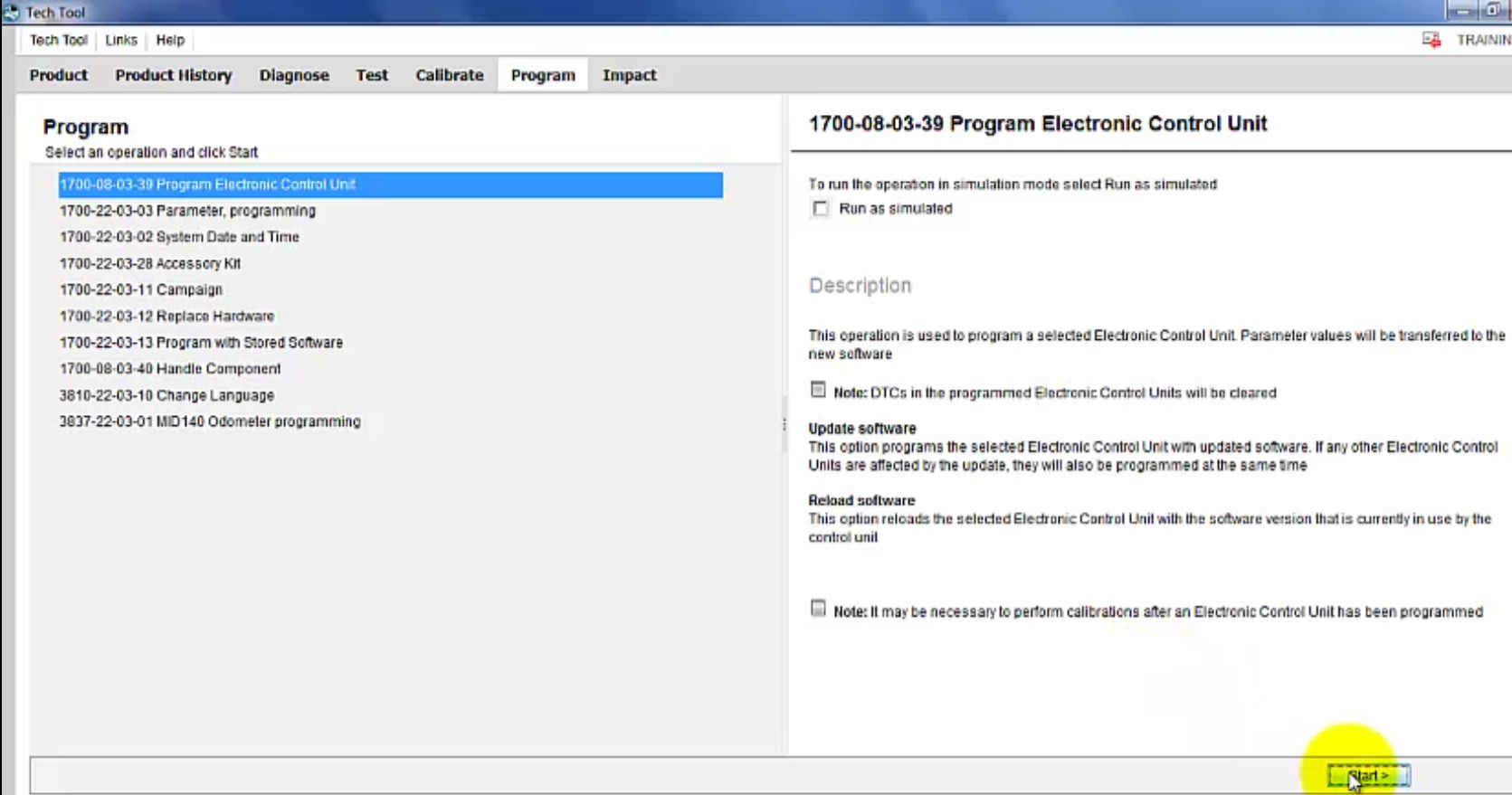

Focus on right side content to click “1700-08-03-39 Program Electronic Control Unit”

Click “Start”

Note:This operation is used to program a selected Electronic Control Unit.Parameter values will be transferred to the new software.

How to Use Volvo PTT to Program ECU3

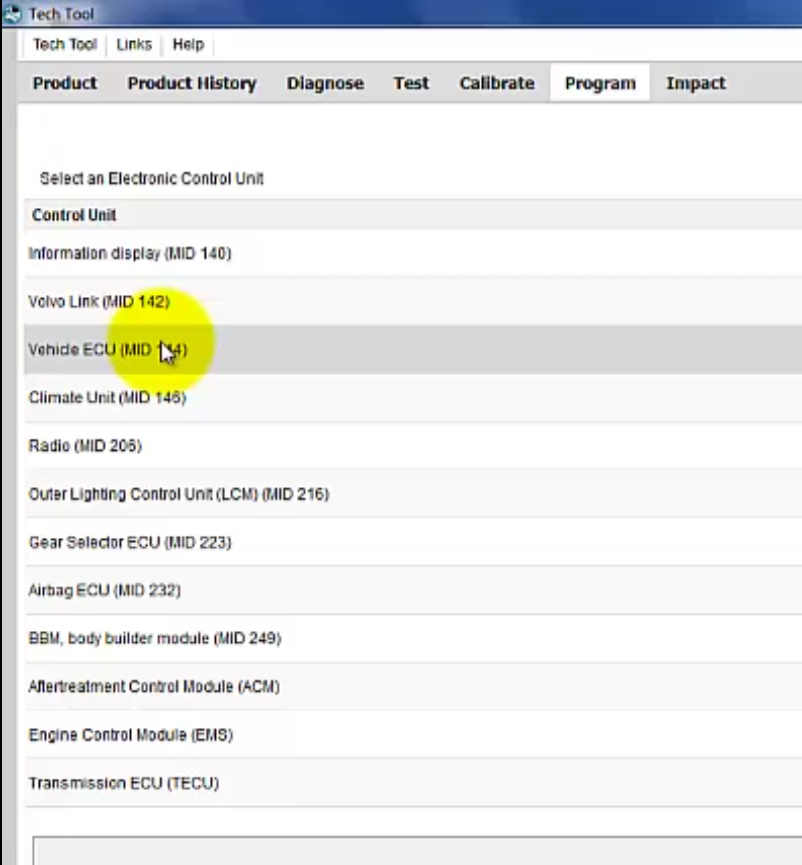

Select “Vehicle ECU(MID 144)”,the click “Program”

How to Use Volvo PTT to Program ECU4

Then PTT software will check conditions automatically.

1.Bttery voltage above 10 V

2.Parking brake applied

3.Ignintion key in ON position Engine not running

How to Use Volvo PTT to Program ECU5

Click “Continue”

System will perform programming steps automatically,as following:

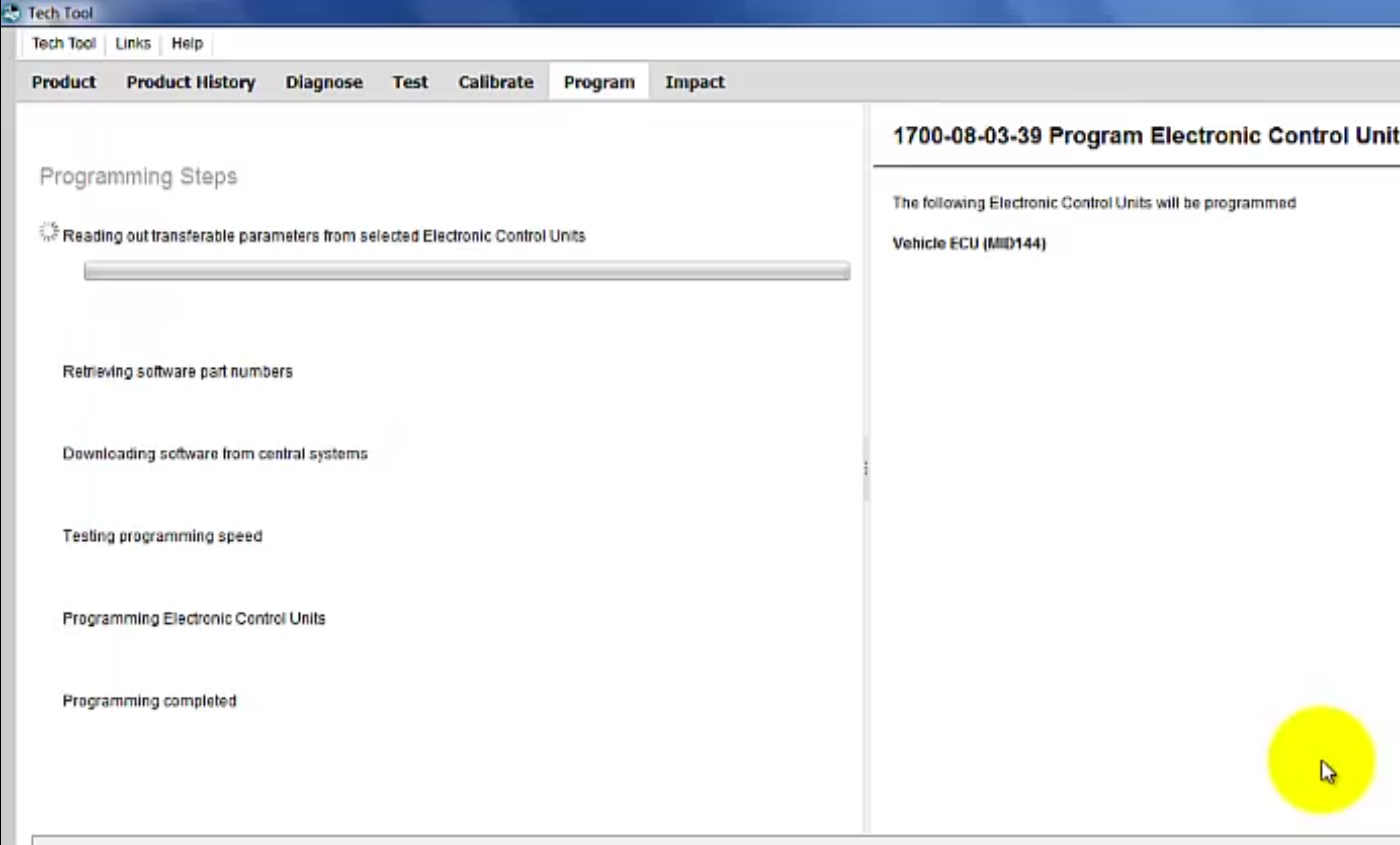

#1 Reading out transferable parameters from selected Electronic Control Units:

#2 Retreving software part numbers

#3 Downloading software from control systems

#4 Testing programming speed

#5 Programming Electronic Control Units

#6 Programming Completed

How to Use Volvo PTT to Program ECU6

During the performing programming steps,the if the system prompt you “There are no software updates for the selected Electronic Control Unint”

Do you want to reload t existing software?

How to Use Volvo PTT to Program ECU7

Click “Yes”

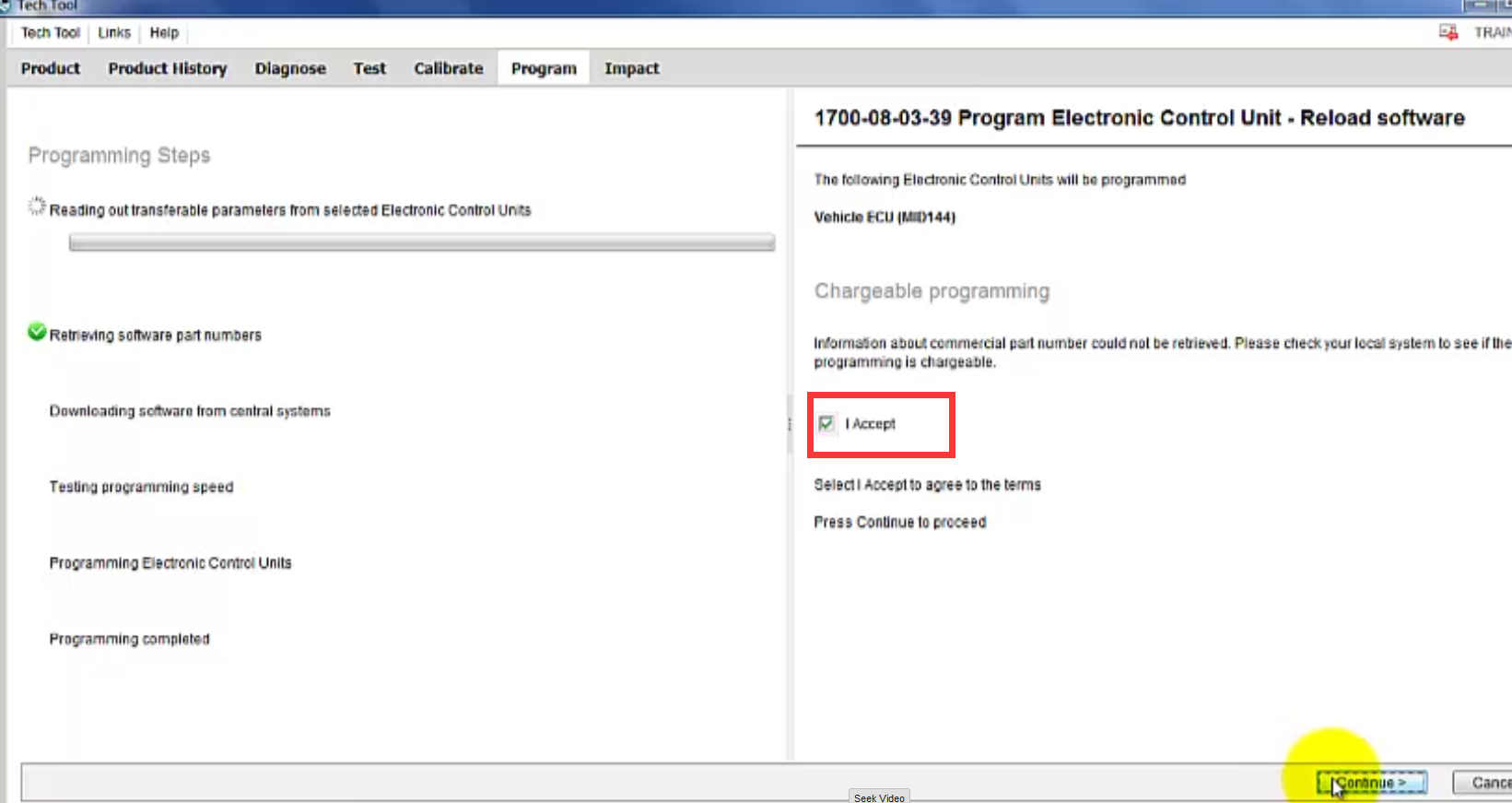

Then check “I Accept” and click “Continue”

How to Use Volvo PTT to Program ECU8

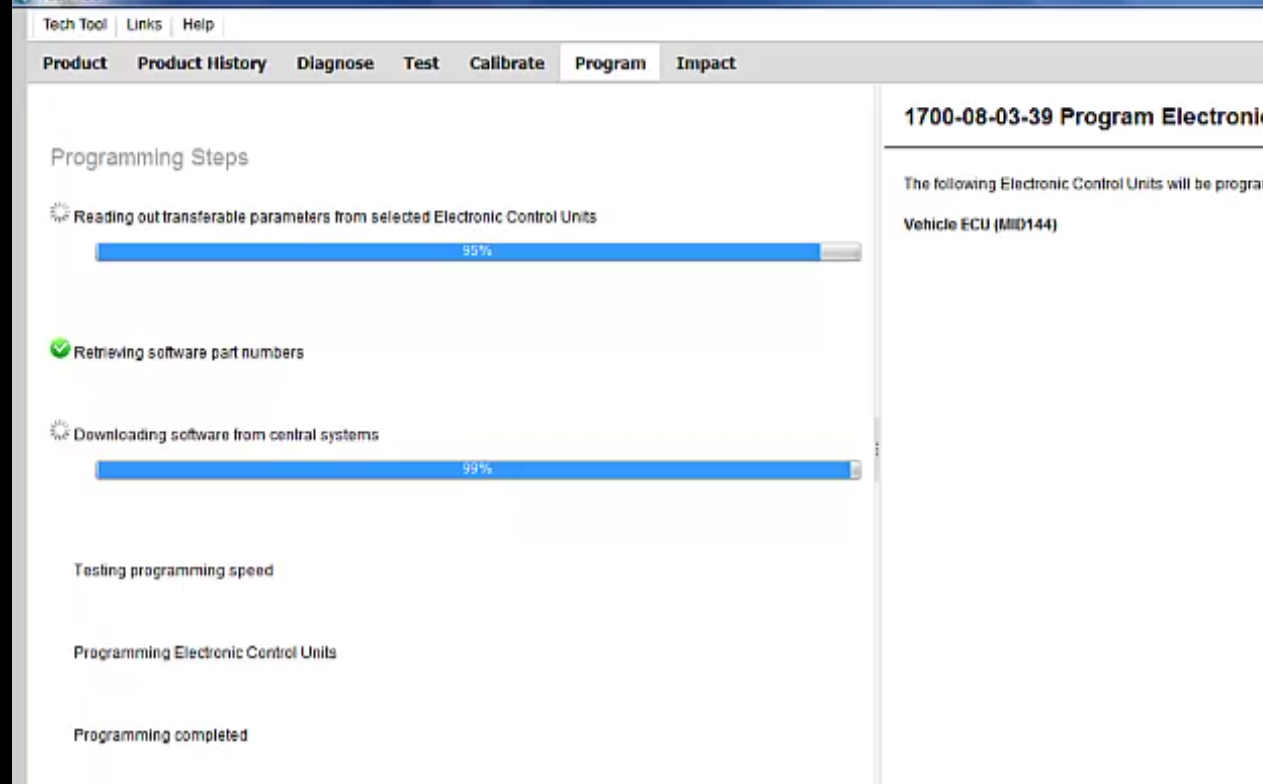

Waiting system downloading software form control systems

How to Use Volvo PTT to Program ECU8

Just wait for programming complete.

How to Use Volvo PTT to Program ECU10

Done!
