How to Remove&Install Battery for Mercedes-Benz

This instruction will show you guide on how to quick remove and install battery in 10 minutes for Mercedes-Benz. More Mercedes-Benz cases, please refer to Benz Trouble Repair.

Before you remove battery, please note:

Engage parking brakes

Switch off all electrical consumers

Switch off ignition, remove key/start/stop button

Wear acid-resistant gloves clothing and glasses

Risk of injury to skin and eyes from battery acid or when handing damaged led-acid batteries.



Procedures:

Unclip hood extender for both sides

How-to-RemoveInstall-Battery-for-Mercedes-Benz-1

Adjust to service mode

How-to-RemoveInstall-Battery-for-Mercedes-Benz-2

Unclip clamps and remove air duct

How-to-RemoveInstall-Battery-for-Mercedes-Benz-3

Socket 10mm(Nm6) to remove ground line from negative terminal first

IMPORTANT: remove ground line from negative terminal first

How-to-RemoveInstall-Battery-for-Mercedes-Benz-4

Remove ground line from positive terminal

How-to-RemoveInstall-Battery-for-Mercedes-Benz-5

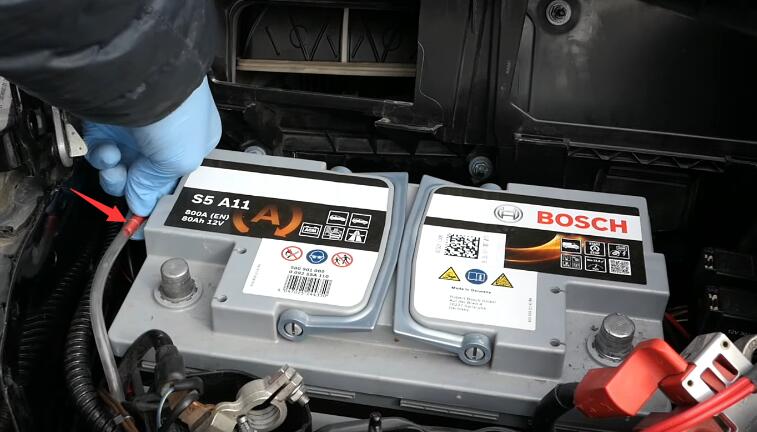

Remove vent line

How-to-RemoveInstall-Battery-for-Mercedes-Benz-6

Socket 13mm and extender(Nm21)

How-to-RemoveInstall-Battery-for-Mercedes-Benz-7

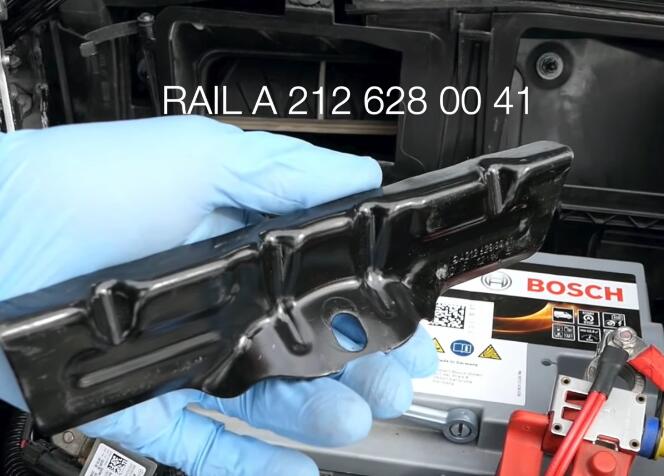

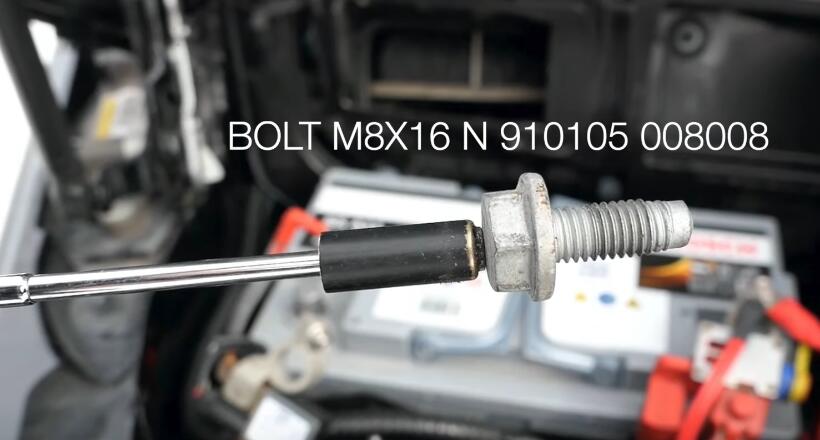

Magnet bolt and rail

How-to-RemoveInstall-Battery-for-Mercedes-Benz-8

How-to-RemoveInstall-Battery-for-Mercedes-Benz-9

Take out battery

How-to-RemoveInstall-Battery-for-Mercedes-Benz-10

Install battery in reverse order
