How to Install FGTech EOBD2 on WinXP/Win7/Win8/Win10

This is a long post aim at FGTech Installation on Win7/Win8/Win10.

Part 1.Operation System Requirements

Part 2.FGTech EOBD2 Software Installation

Part 3.Window XP Driver Installation

Part 4.Win7/Win8/Win10 Driver Installation

Part 5.Enable Driver for Window 8

Part 6.Enable Driver for Win8.1

Part 7.Enable Driver for Win10

Operation System Requirements:

Recommended minimum requirements:
– Processor Intel i5
– RAM 4GB
For proper operation of the software it is very important to pay attention to the percentage of the CPU of the computer that it must not be greater than 20% at startup EOBD2.exe the software.
Go to the Task Manager by right-clicking mouse on the taskbar and then Task Manager:

 Install FGTech on WinXPWin7Win8Win10

Now you can view the status CPU :

Install FGTech on WinXPWin7Win8Win10 (2)

If the percentage of CPU usage is more than 20%, the start and the operation of the program is not guaranteed.

ATTENTION: DON’T install the software if in your pc there is software or driver of clones installed. There is risk of damaging the tool!

FGTech EOBD2 Software Installation

Click there to download the file Setup.exe

After download completing,run the Setup.exe.

Install FGTech on WinXPWin7Win8Win10 (3)

Click “Next”

Install FGTech on WinXPWin7Win8Win10 (4)

Read the conditions of contract attentively and accept the terms of license:

Install FGTech on WinXPWin7Win8Win10 (5)

Maintain the folder of installation C:\FGTech and click Next

Install FGTech on WinXPWin7Win8Win10 (6)

Click “Install”

Install FGTech on WinXPWin7Win8Win10 (7)

Wait that the installation has completed

Install FGTech on WinXPWin7Win8Win10 (8)

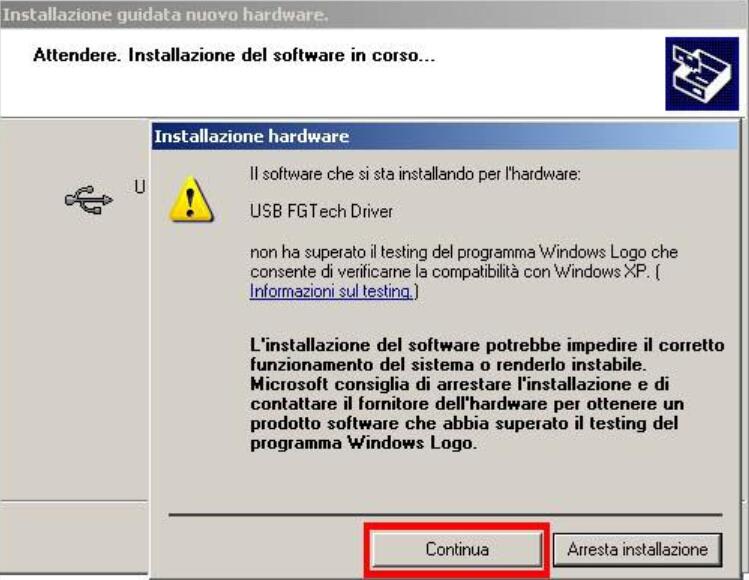

If you see the following message click “Continue”

Install FGTech on WinXPWin7Win8Win10 (8)

The software is install in your computer. Click Finish.

Install FGTech on WinXPWin7Win8Win10 (10)

ATTENTION:

While using the software EOBD2, close all programs that use data streaming and Voip as SKYPE, MSN Messanger, etc; and close all browser with pages that working on social network like Facebook, Twitter, etc.

Window XP Driver Installation:

We show of succession the procedure for installing the driver to execute only if your computer doesn’t recognize the peripheral when you connect the tool to the usb door.

Follow the instructions:

Install FGTech on WinXPWin7Win8Win10 (11) Install FGTech on WinXPWin7Win8Win10 (12) Install FGTech on WinXPWin7Win8Win10 (13) Install FGTech on WinXPWin7Win8Win10 (14) Install FGTech on WinXPWin7Win8Win10 (15) Install FGTech on WinXPWin7Win8Win10 (16)



Waiting…

Install FGTech on WinXPWin7Win8Win10 (17) Install FGTech on WinXPWin7Win8Win10 (18) Install FGTech on WinXPWin7Win8Win10 (19) Install FGTech on WinXPWin7Win8Win10 (20) Install FGTech on WinXPWin7Win8Win10 (21)



If the processor of the computer is 64bit choose amd64:

Install FGTech on WinXPWin7Win8Win10 (22) Install FGTech on WinXPWin7Win8Win10 (23) Install FGTech on WinXPWin7Win8Win10 (23) Install FGTech on WinXPWin7Win8Win10 (25)



Click finish

Install FGTech on WinXPWin7Win8Win10 (26)

Win7/Win8/Win10 Driver Installation:

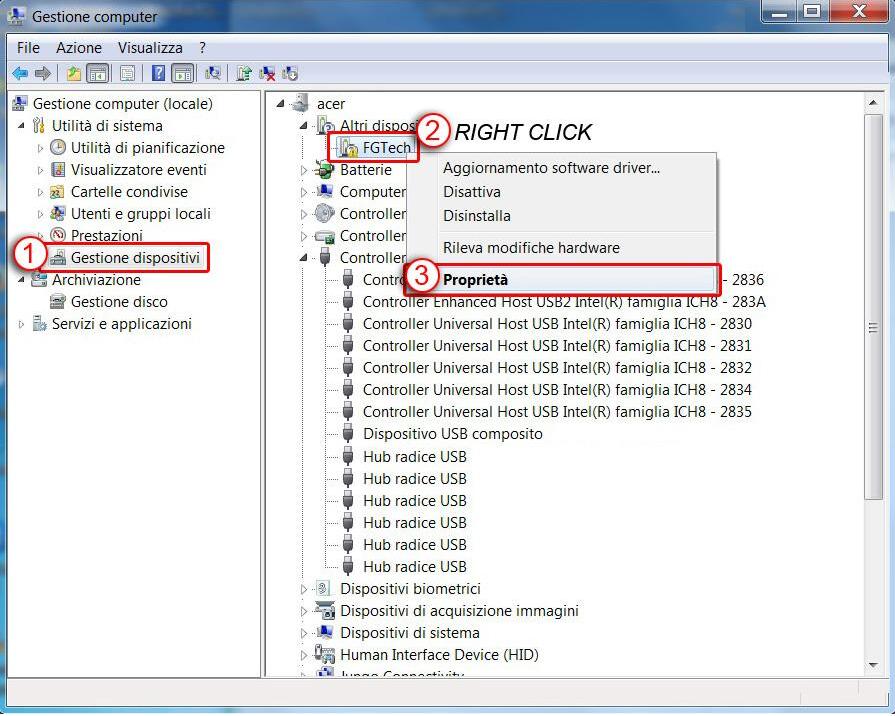

After installing the Setup.exe, with Windows 7/8 is possible that connecting it via USB cable may not be recognized because the drivers were not installed.In the Computer Management the tool appears with a yellow triangle as in the figure below.Click with the right mouse button on the device and select Properties.

Install FGTech on WinXPWin7Win8Win10 (27)

Open the driver tab and Click on “Update driver..”

Install FGTech on WinXPWin7Win8Win10 (28)

Select“Search the software of the driver on the computer”

Install FGTech on WinXPWin7Win8Win10 (29)

Choose the path of the driver search: C:\ Fgtech\fgtech_new_driver and check “Include subfolders”

Install FGTech on WinXPWin7Win8Win10 (30)

Now the driver will be installed:

Install FGTech on WinXPWin7Win8Win10 (31)

If appair this message click OK:

Install FGTech on WinXPWin7Win8Win10 (32)

Attention:If appair this message:

Install FGTech on WinXPWin7Win8Win10 (33)

In this case, you must manually select the drivers on your computer:

Then, return to the Computer Management > DeviceManager, right click on the device FGTech and click Properties.

Open the “Driver” tab, click “Update driver” and then Click on “Let me pick from a list of device

drivers on my computer”:

Install FGTech on WinXPWin7Win8Win10 (34)

Check “Show compatible hardware”, select “USB FGTech Driver” and click next:

Install FGTech on WinXPWin7Win8Win10 (35)

Now the driver will be installed:

Install FGTech on WinXPWin7Win8Win10 (36)

If appair this message click OK:

Install FGTech on WinXPWin7Win8Win10 (36)

Enable Driver for Window 8

After installation of the Setup.exe in Windows 8, when you connect by USB the interface is possible that the pc don’t recognized since the drivers are not installed. If you try to install manually the driver through the peripheral management it will appair the follow error message:

Install FGTech on WinXPWin7Win8Win10 (38)

It i s possible resolve the problem following the same procedure of Windows 7. Click here to see.



Even if it does not accept the drivers manually, you need to disable the control of the driver signing.

Follow the follow in instructions:

Restart the pc in advanced mode, so, from the desktop, open the Charm Bar to the right and click

on Change PC Settings:

Install FGTech on WinXPWin7Win8Win10 (39)

Now it open the screened of the PC settings, click on General and then Restart now:

Install FGTech on WinXPWin7Win8Win10 (40)

Click on the right Restart now .

The PC will restart in advanced mode.

After the restart with Windows 10, it will appair the following screened, click on Troubleshoot.

Install FGTech on WinXPWin7Win8Win10 (41)

Click on Advanced options

Install FGTech on WinXPWin7Win8Win10 (42)

Click Startup Settings

Install FGTech on WinXPWin7Win8Win10 (43)

Click Restart

Install FGTech on WinXPWin7Win8Win10 (44)

After the restart, at the screened below, press the button 7 that corresponds to:

Disable driver signature enforcement.

Install FGTech on WinXPWin7Win8Win10 (45)

The PC will restart

NOW YOU CAN INSTALL THE DRIVER: Click Here.



Enable Driver for Win8.1

After installation of the Setup.exe in Windows 8.1, when you connect by USB the interface is possible that the pc don’t recognized since the drivers are not installed. If you try to install manually the driver through the peripheral management it will appair the follow error message:

Install FGTech on WinXPWin7Win8Win10 (46)

It i s possible resolve the problem following the same procedure of Windows 7. Click here to see.



Even if it does not accept the drivers manually, you need to disable the control of the driver signing.

Follow the followin instructions:

Open the Charm bar to the right and click CHANGE PC SETTINGS:

Install FGTech on WinXPWin7Win8Win10 (47)

Click Update and restore:

Install FGTech on WinXPWin7Win8Win10 (48)

Click Restore and then Restart now to the right:

Install FGTech on WinXPWin7Win8Win10 (49)

The PC will restart in advanced mode.

After the restart with Windows 10, it will appair the following screened, click on Troubleshoot

Install FGTech on WinXPWin7Win8Win10 (50)

Click on Advanced options

Install FGTech on WinXPWin7Win8Win10 (51)

Click Startup Settings

Install FGTech on WinXPWin7Win8Win10 (52)

Click Restart

Install FGTech on WinXPWin7Win8Win10 (53)

After the restart, at the screened below, press the button 7 that corresponds to:

Disable driver signature enforcement.

Install FGTech on WinXPWin7Win8Win10 (54)

The PC will restart

NOW YOU CAN INSTALL THE DRIVER:

CLICK HERE .





Enable Driver for Window 10

After installation of the Setup.exe in Windows 10, when you connect by USB the interface is possible that the pc don’t recognized since the drivers are not installed. If you try to install manually the driver through the peripheral management it will appair the follow error message:

Install FGTech on WinXPWin7Win8Win10 (55)

It i s possible resolve the problem following the same procedure of Windows 7. Click here to see.

Even if it does not accept the drivers manually, you need to disable the control of the driver signing.

Follow the followin instructions:

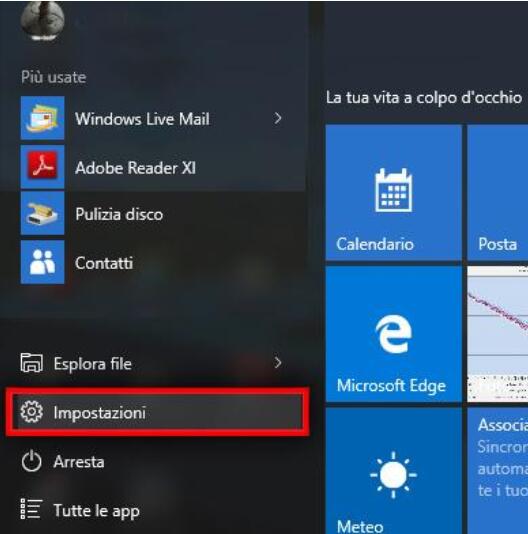

Restart the pc in advanced mode, so click Start > Settings

Install FGTech on WinXPWin7Win8Win10 (56)

Click Update and security:

Install FGTech on WinXPWin7Win8Win10 (57)

Click Restore and then Restart now to the right:

Install FGTech on WinXPWin7Win8Win10 (58)

The PC will restart in advanced mode.

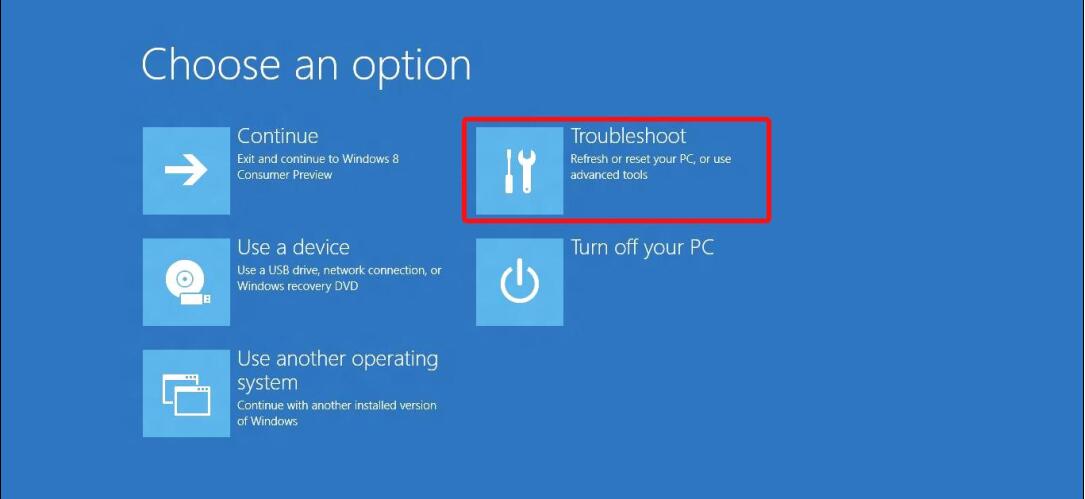

After the restart with Windows 10, it will appair the following screened, click on Troubleshoot:

Install FGTech on WinXPWin7Win8Win10 (59)

Click on Advanced options

Install FGTech on WinXPWin7Win8Win10 (60)

Click Startup Settings

Install FGTech on WinXPWin7Win8Win10 (61)

Click Restart

Install FGTech on WinXPWin7Win8Win10 (62)

After the restart, at the screened below, press the button 7 that corresponds to:

Disable driver signature enforcement.

Install FGTech on WinXPWin7Win8Win10 (63)F

The PC will restart.

NOW YOU CAN INSTALL

THE DRIVER:

CLICK HERE .

ATTENTION:WHEN YOU START EOBD2.EXE IF APPAIR A MESSAGE “APP NOT SICURE” CLICK “MORE INFORMATION” AND THEN “ALLOW”
