How to Connect VAS5054 to ODIS-Engineering by Bluetooth

This instruction show you guide on how to build connection between VAS5054 and ODIS-Engineering by bluetooth.



Note:It’s not recommended to use bluetooth connection for modules programming/flashing projects.



Preparation:

Newest ODIS-E Engineering 12.1.1 & 9.0.4 Free Download

How to Install ODIS-Engineering 12.1.0 Diagnostic Software





Steps

Follow below picture to click “Add device”

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-1

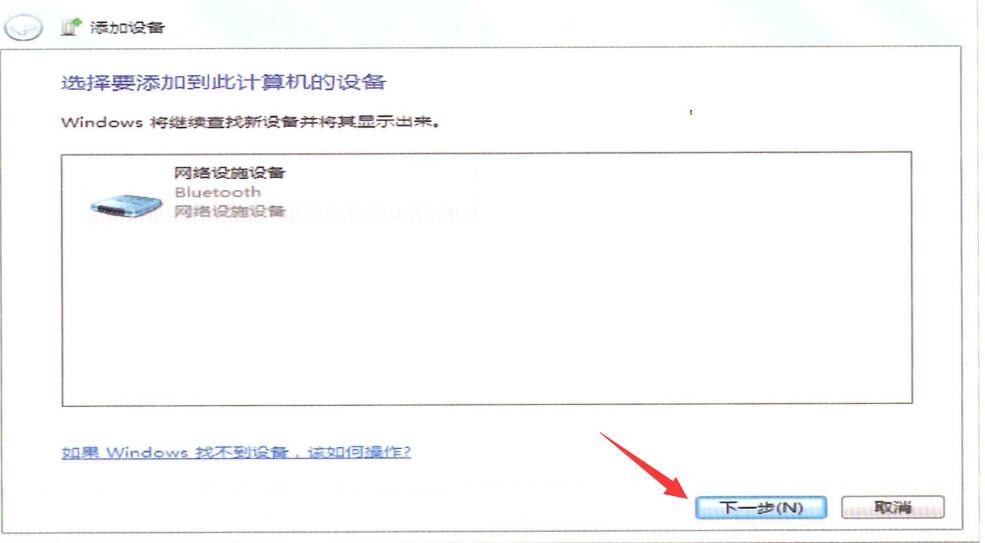

Click “Next” after your VAS5054 device identification

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-2

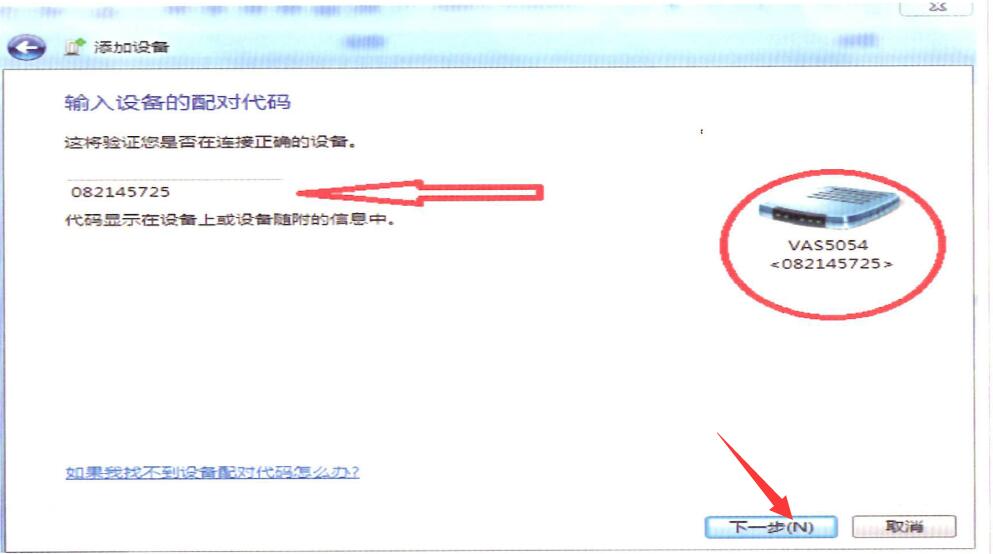

Input pairing code and click “Next”

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-3

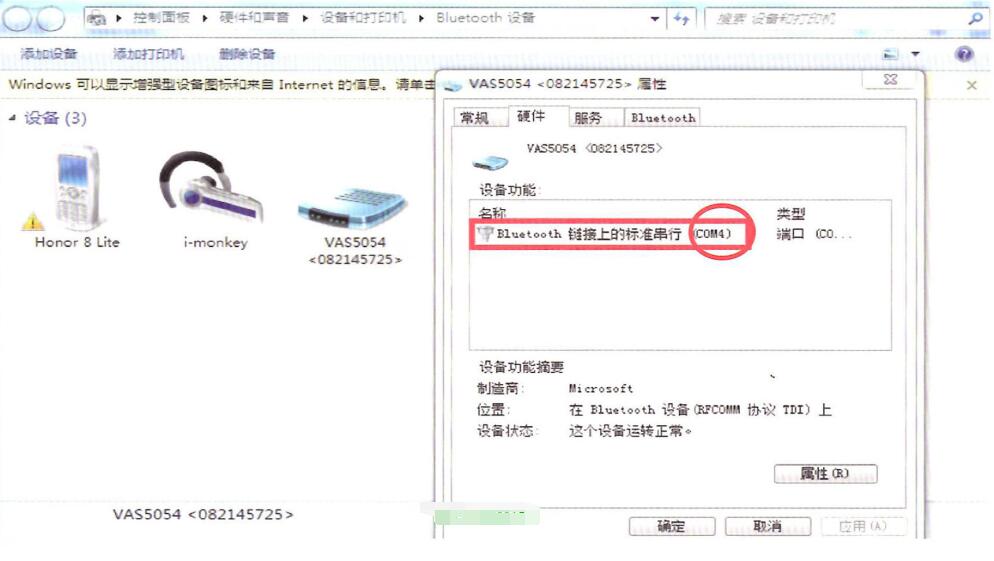

After pairing successfully, open VAS5054 bluetooth properties, record COM port number.

In this example COM port number is COM4

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-4

Go to START menu to select “EDIS Hardware Installation”, then select “ADD EDIC…”

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-5

Select “VAS5054”, then hit “OK”

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-6

Select “COM4” port (depend on VAS5054 bluetooth properties you record before )

Then hit “OK”

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-7

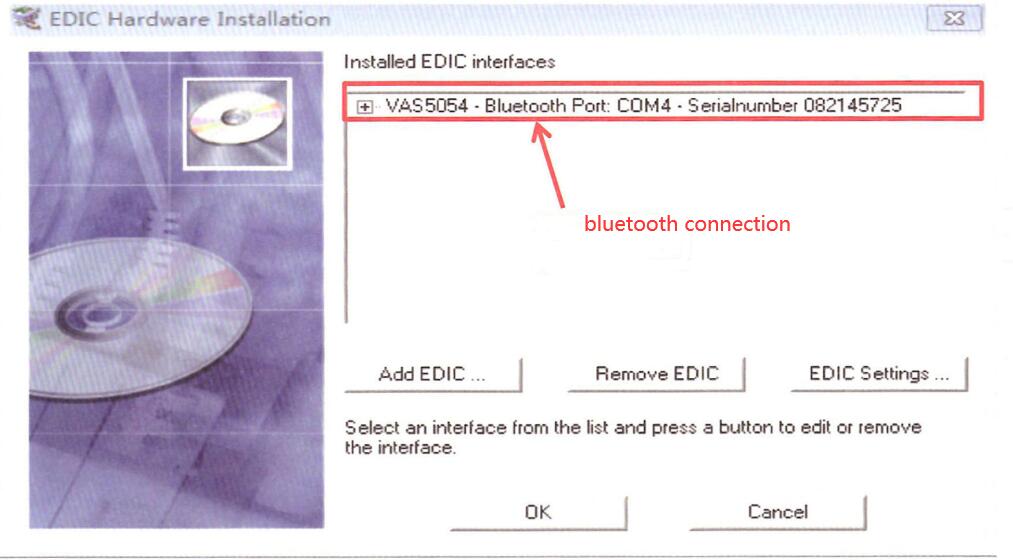

Now it will show you bluetooth connection build successfully

Note: if you can not get below picture show, please repeat above steps.

How-to-Connect-VAS5054-to-ODIS-Engineering-by-Bluetooth-8

If you connecting VAS5054 with ODIS-Engineering by USB, it no need do any setting.
