How to Clean Hybrid Battery Fan Filter for 2016-2018Toyota RAV4 Hybrid

The RAV4 Hybrid Toyota has two filters, we recommend you clean filter every three month, but this heavily depend on how you use the back seat of the car. This instruction will show you guide on how to clean hybrid battery fan filter. More filter cases, please refer to AIR FILTER&AIR CONDITIONER REPLACEMENT.

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-1

Steps:

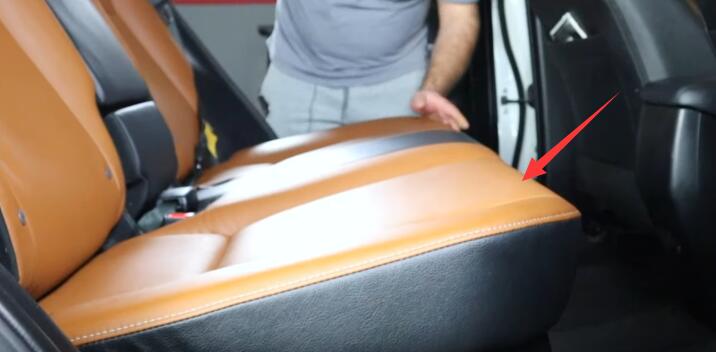

Remove the back seat, before you do that make sure the back of the seat is reclined all the way back otherwise the back seat won’t come off.

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-2

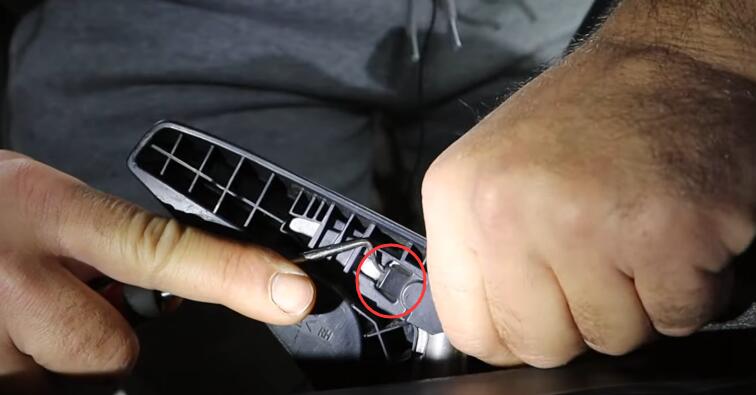

Remove handle for both side, pull it up while holding the back of the seat, use a 90 degree pick or a screwdriver pop this out and then slide the whole handle out.

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-3

Remove two clips, push the middle in then pop the clip out

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-4

Remove the sill plate

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-5

Remove the whole panel

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-6

Use some compressed air or even you can use a vacuum to clean it, compressed air works best

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-7

Take a microfiber towel to clean vent behind the filter

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-8

After cleaning, put everything back. Kindly note when you install this clips just need to push the bottom part out then install them.

How-to-Clean-Hybrid-Battery-Fan-Filter-for-2016-2018Toyota-RAV4-Hybrid-9

More repair cases about RAV 4, please refer to TOYOTA RAV4 REPAIR.
