How to Apply Injector Trim Code Using Scan Tool

This mini post show the guide on how to apply injector trim code using scan tool.



Volvo PTT Premium Tech Tool All Version Free Download

How to Install Volvo Premium Tech Tool PTT Software



Applying Injector Trim Codes using Scan Tool
– Place the cursor in the correct trim code field
– Clear the previous code
– Scan the injector barcode
– Check that the correct injector trim code has been updated.
– Update the current trim code for all relevant injectors
– Click Apply Injector Trim Code Using Scan Tool2 Start to program all the injector trim codes to the Engine Control Module.

Apply Injector Trim Code Using Scan Tool231

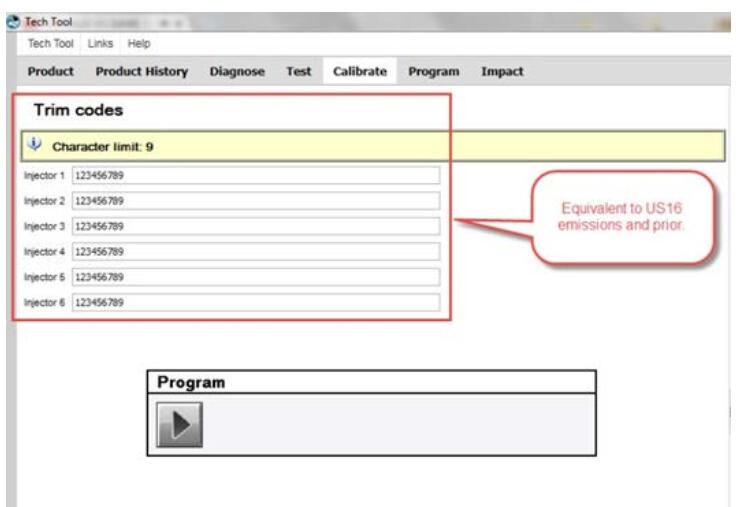

NOTE: US16 and previous engines use the E3 Unit Injectors, they are 9 character.
When scanned using the scan tool a 39 character string length trim codes will display in the injector field.





Applying Injector Trim Codes using Scan Tool
– Place the cursor in the correct trim code field
– Clear the previous code
– Scan the injector barcode
– Check that the correct injector trim code has been updated.
– Update the current trim code for all relevant injectors
– Click Apply Injector Trim Code Using Scan Tool2 Start to program all the injector trim codes to the Engine Control Module.
Apply Injector Trim Code Using Scan Tool23



NOTE: All Common Rail Engine (US17 emissions and newer) will be using the F2 Injectors, they are 38 character trim codes.When scanned using the scan tool a 56 character string length will display in the Injector field.





Support Scanner:

Motorola/Zebra Symbol
– MODEL: DS4308-HD 2D Omnidirectional High Density

Omni-Directional
Enables true point-and-shoot scanning simplicity by eliminating the need to align bar code and scanner.

Zebra/Motorola Symbol
– MODEL: DS4308-SR Next Generation

Next generation
Resets the bar for 2-D imaging by improving decode performance and snappiness, dramatically
improving the user experience, user productivity, throughput and wait times.


(Visited 24 times, 1 visits today)
