Erase transmitter ID2 Code C2122 by Toyota Teachstream

This article I will share experience about how to erase transmitter ID2 code C2122 and add new TPMS sensor on Toyota Lexus or Scion.Help it helps!



What tools you need for erase transmitter ID2 code C2122?

After a quick look online, i get the software and USB adapter (it’s called mini vci) for usually under $30 shipped.
Don’t pay high insane dealer fees!! Also I have no idea how to do aftermarket TPMS sensors. I ONLY put OEM parts in my Toyota Vehicles. So I know there is some other weird programming you have to do with the aftermarket sensors.
I got this OEM Denso TPMS Sensor from Amazon.com for $35 shipped. MAKE SURE you know the CORRECT TPMS DENSO PART NUMBER for your vehicle!!! There are a few different ones this software will do ALL OEM sensors but you need to make sure you have the right sensor!!!



About process:

Techstream-replace-broken-TPMS-sensor-(1) Techstream-replace-broken-TPMS-sensor-(2)

TPMS is not ON actually. Flashing means that i have an actual tire so it’s not that i have low tire even though i could have a low tire. It’s the fact, there must be something wrong with the TPMS.



Then go to the software Teachstream:

Click on Connect to vehicle

Confirm vehicle info: Toyota Highlander 2010, 2GR FE, W/O Smart key

Techstream-replace-broken-TPMS-sensor-(3)

Select The Pressure Monitor

Techstream-replace-broken-TPMS-sensor-(4)

Code C2122: cannot receive data from transmitter ID2

Techstream-replace-broken-TPMS-sensor-(5)

Go to data list and read ID2 code

Techstream-replace-broken-TPMS-sensor-(6)

Tire ID2 location

Techstream-replace-broken-TPMS-sensor-(7)

BD7540 means a bad old sensor

Techstream-replace-broken-TPMS-sensor-(8)

Then back to Toyota Teachstream

Click on Unity

Perform the function of Tire ID registration for the tire pressure warning system

Note: registration will fail if the time limit its exceeded for any step

Warning: registration will fail if the system is still in the process of initialization

Techstream-replace-broken-TPMS-sensor-(9)

Click on Next

Techstream-replace-broken-TPMS-sensor-(10)



Input each transmitter ID code

Press Next to input the next code

Continue until all codes are registered

Techstream-replace-broken-TPMS-sensor-(11) Techstream-replace-broken-TPMS-sensor-(12) Techstream-replace-broken-TPMS-sensor-(13) Techstream-replace-broken-TPMS-sensor-(14) Techstream-replace-broken-TPMS-sensor-(15) Techstream-replace-broken-TPMS-sensor-(16)

Id registration is complete

Techstream-replace-broken-TPMS-sensor-(17)

Click on Exit

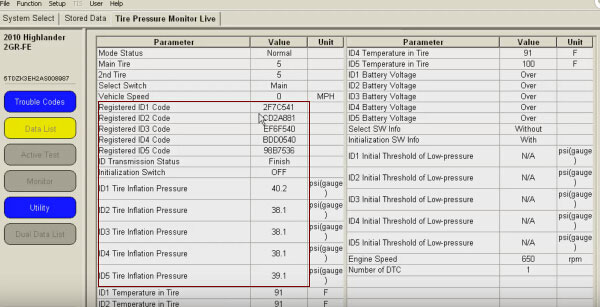

Go to data list, concerned parameters are changed

Techstream-replace-broken-TPMS-sensor-(18)

Then go to trouble codes

Techstream-replace-broken-TPMS-sensor-(19)

Code C2122 was cleared!

Techstream-replace-broken-TPMS-sensor-(20)
