Benz C204 Parking Sensor Coding/Calibration by Benz Xentry

If you find your Benz car parking sensor can not work well,even your Benz have touched something,but the parking sensor still have not warning,it is necessary to coding for you parking system.Here car-auto-repair.com show you guide on how to use Benz Xentry diagnosis system to calibrate/code parking sensor system for your Benz.



Preparations:

Newest 06.2023 Benz Xentry.OpenShell.XDOS Free Download

How to Install Benz Xentry 06.2023 Diagnostic Software



Procedures:

Connect Benz SD C4 to Benz C204 obd port,then run software

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-1

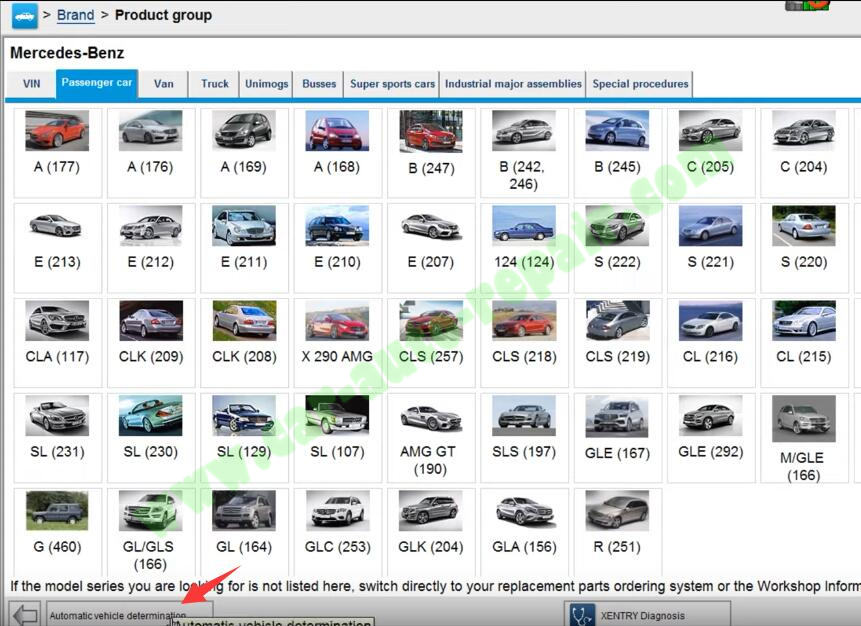

Click “Automatic vehicle determination”

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-2

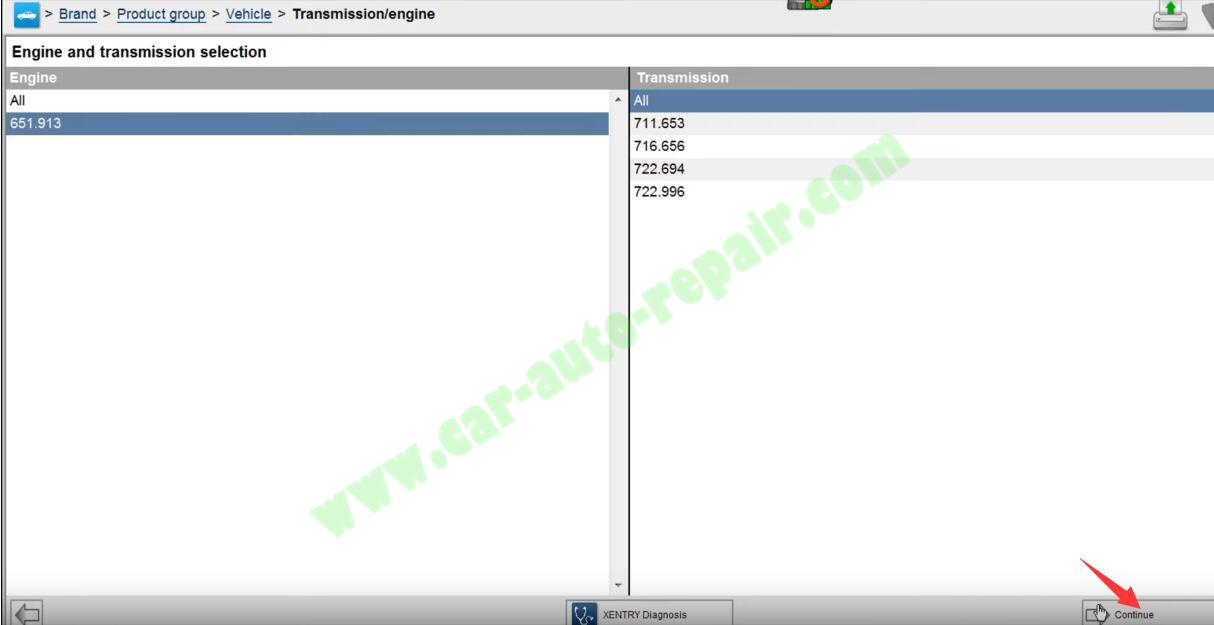

Show you the engine and transmission,just click “Continue”

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-3

Now here show you the vehicle information,include VIN…

Click “XENTRY Diagnosis”

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-4

Scroll down to select “N62-Parking system(PTS)”

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-5

Now it will show you important note,click “Continue”

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-6

Click “Continue”

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-7

Click “Adaptations”–>”Configuration”–>”Manual settings”–>”Volume and frequency”

Now you will get the volume and frequency value at right side

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-8

Change value below show,and click “Continue” button

Volume of front PARKTRONIC warning tone 100%

Frequency of front PARKTRONIC warning tone 845Hz

Continual front acoustic warning when parking YES

Volume of front PARKTRONIC warning tone 100%

Frequency of front PARKTRONIC warning tone 962Hz

Continual front acoustic warning when parking YES

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-9

Now click “Yes” to perform coding

Benz-C204-Parking-Sensor-CodingCalibration-by-Benz-Xentry-10

After then you can check the value again.
